When Cylinder Block is Reused

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Measure the cylinder block bore inner diameter.
  2. Determine the bore grade by comparing the measurement with the values under the cylinder bore inner diameter of the EM-153"Piston Selection Table".
  3. Select the piston of the same grade.

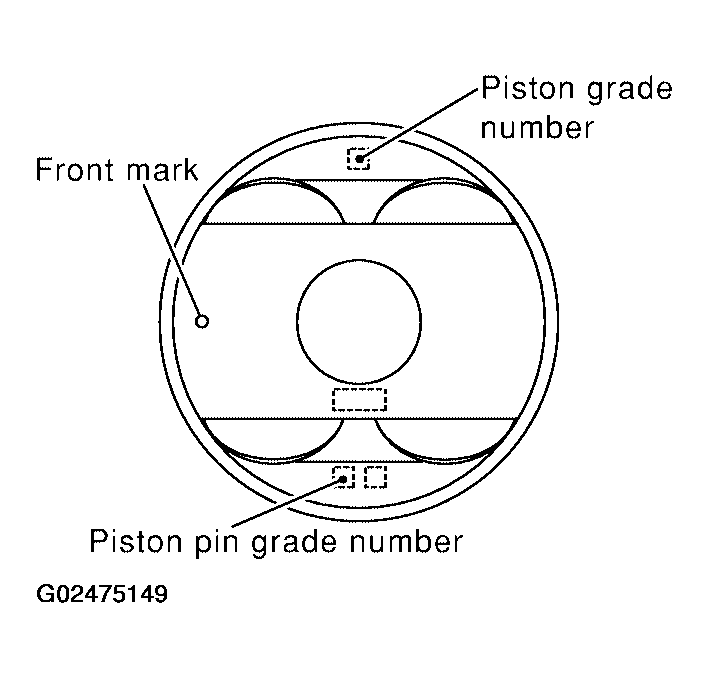

    Fig 1: Identifying Piston Grade Number
    G02475149Courtesy of NISSAN MOTOR CO., U.S.A.
