Ignition Power Supply - Ignition SW. In On And/Or Start

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

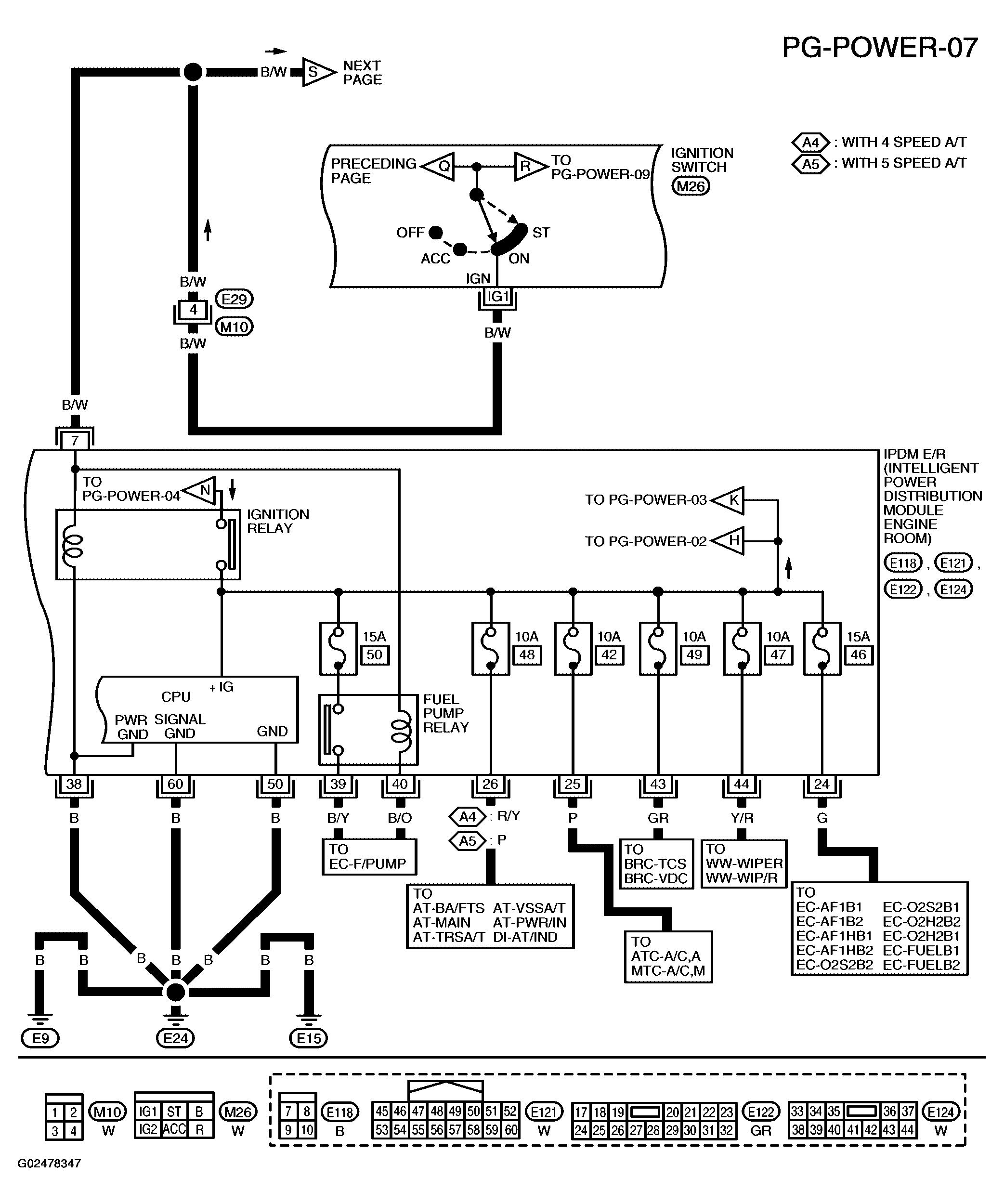

Fig 1: Wiring Diagram - (PG-POWER-07)

Courtesy of NISSAN MOTOR CO., U.S.A.

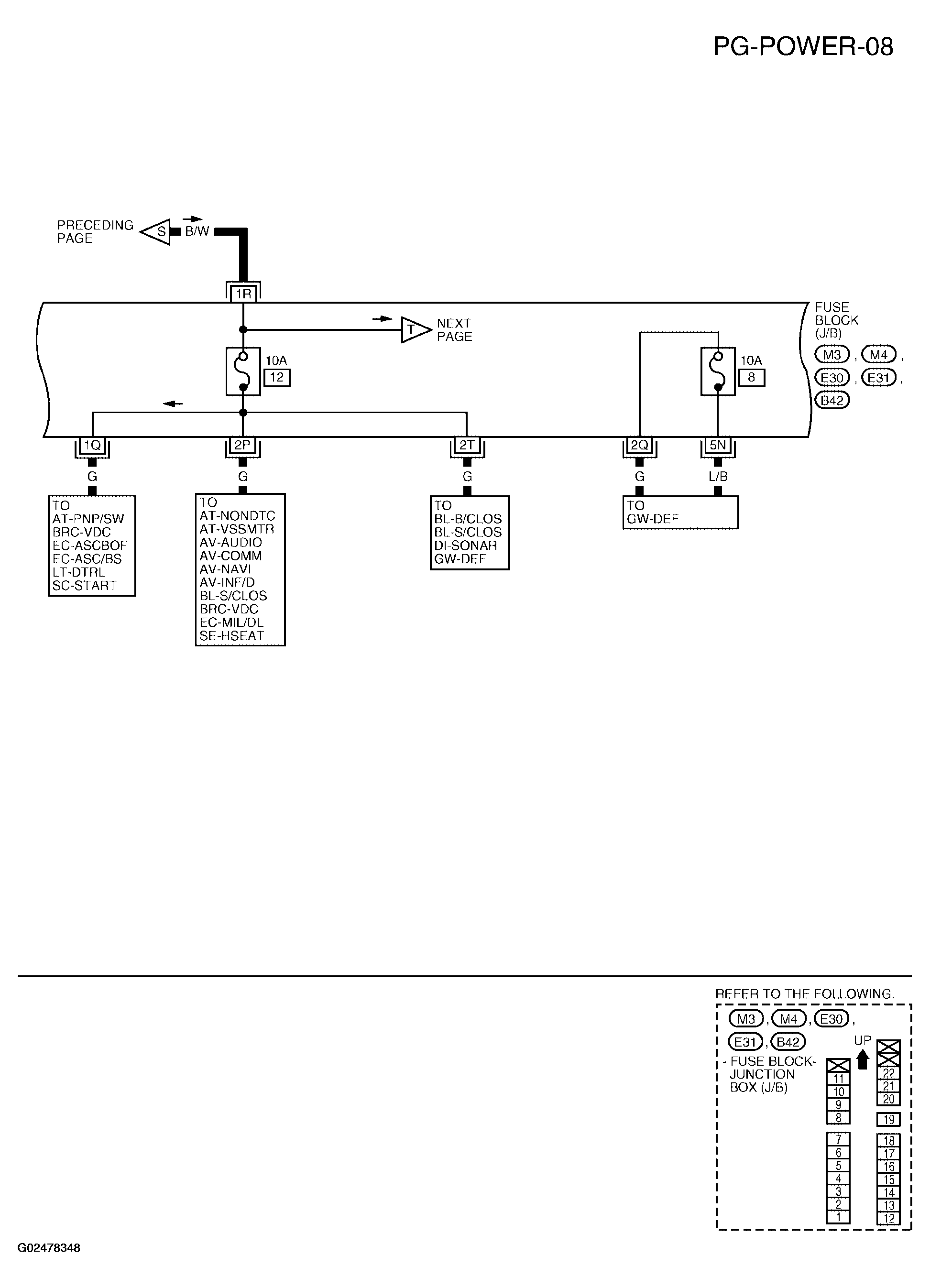

Fig 2: Wiring Diagram - (PG-POWER-08)

Courtesy of NISSAN MOTOR CO., U.S.A.

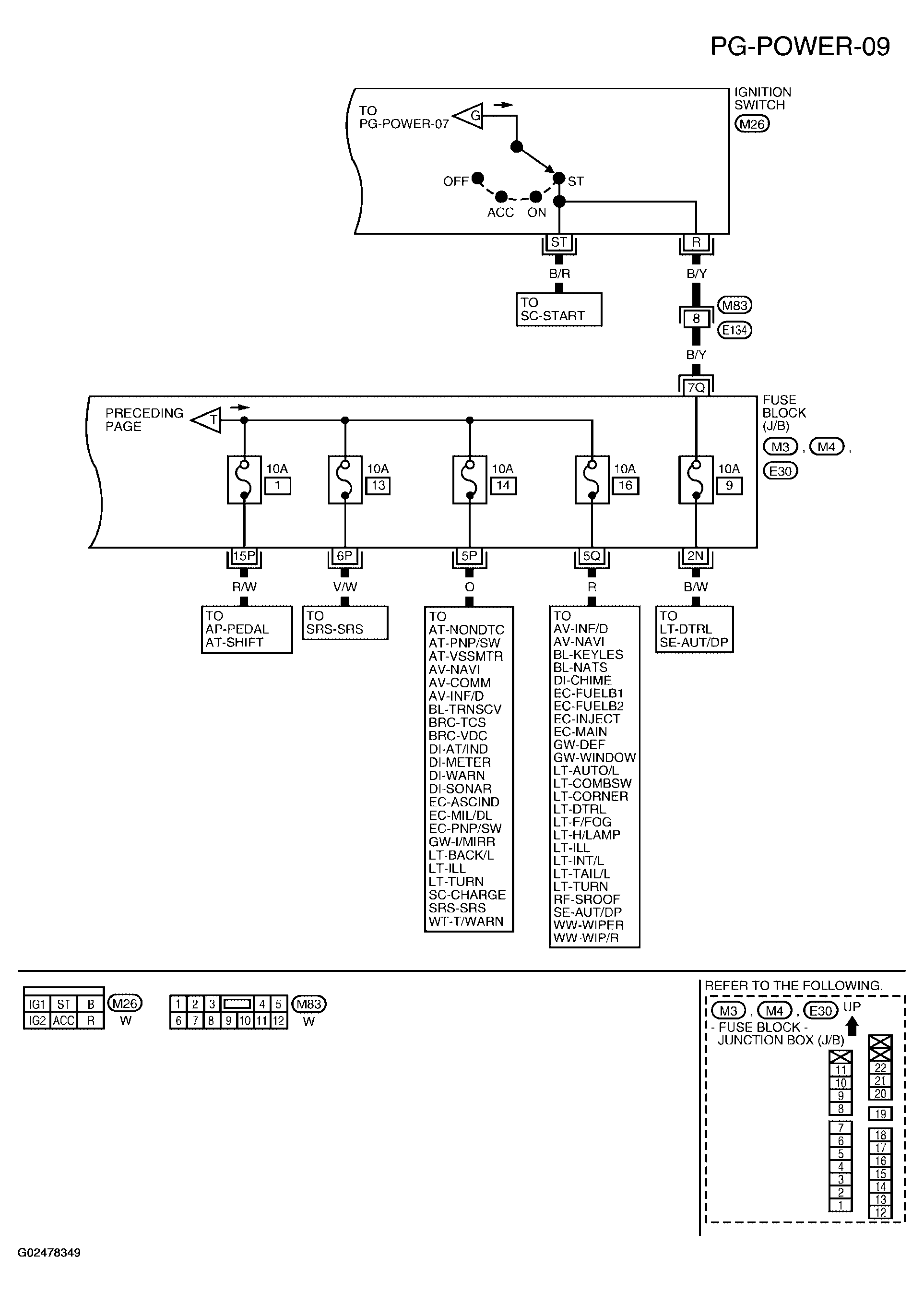

Fig 3: Wiring Diagram - (PG-POWER-09)

Courtesy of NISSAN MOTOR CO., U.S.A.
