Can Communication Line Control

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

With CAN communication, by connecting each control unit using two communication lines (CAN L-line, CAN H-line), it is possible to transmit a maximum amount of information with minimum wiring. Each control unit can transmit and receive data, and reads necessary information only.

Fail-safe control
- When CAN communication with other control units is impossible, IPDM E/R performs fail-safe control. After CAN communication returns to normal operation, it also returns to normal control.
- Operation of control parts by IPDM E/R during fail-safe mode is as follows:

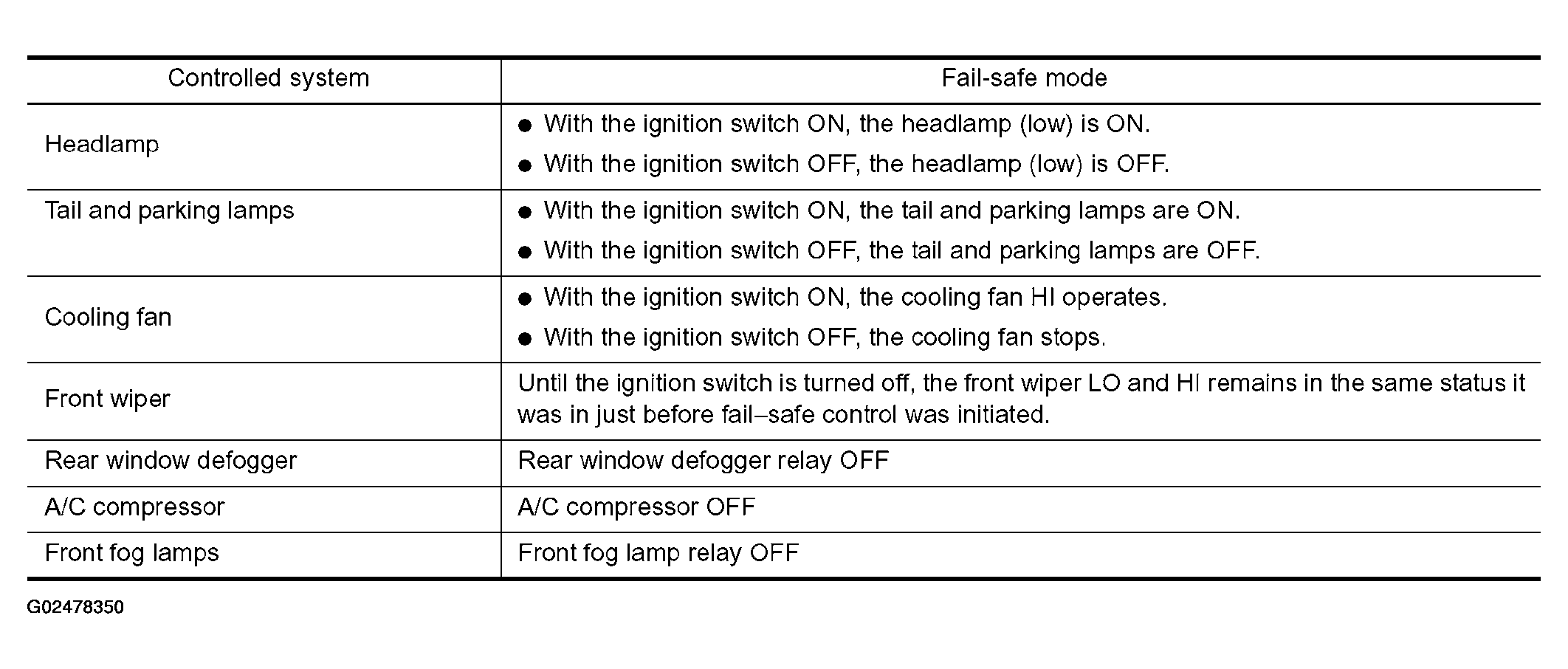

  Fig 1: Fail-Safe Mode Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.
