Removal and Installation of IPDM E/R: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable.
  2. Remove coolant reservoir fasteners.
  3. Move coolant reservoir aside.

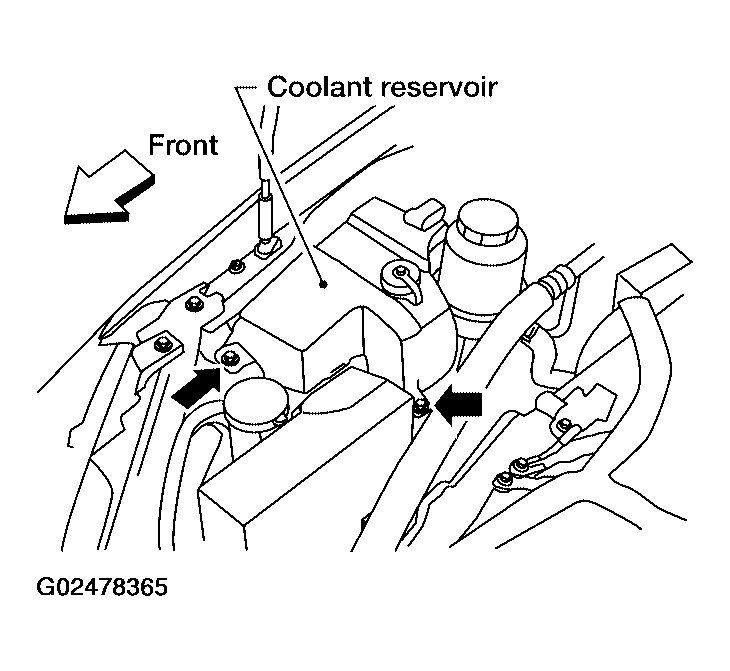

    Fig 1: Moving Coolant Reservoir Aside
    G02478365Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove IPDM E/R upper cover.
  5. Remove IPDM E/R harness cover.

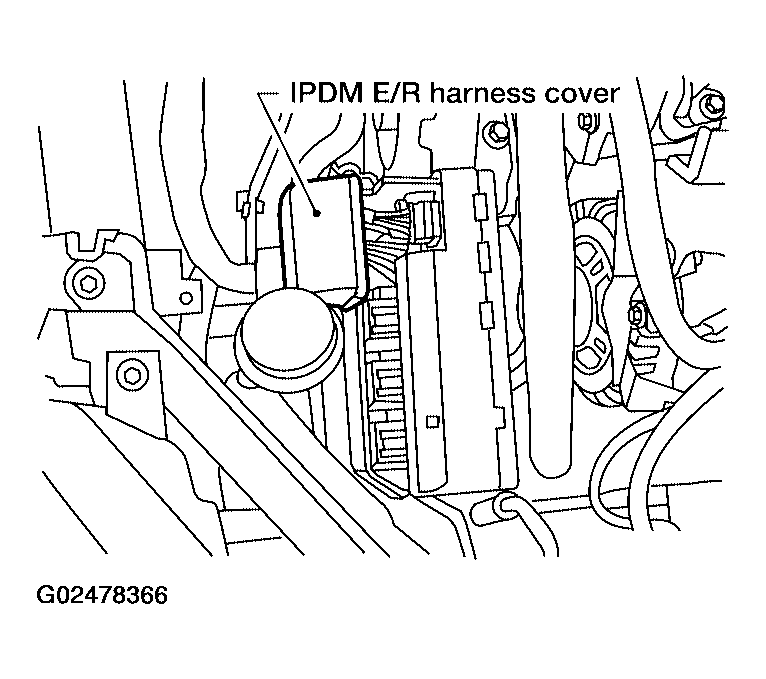

    Fig 2: Removing IPDM E/R Harness Cover
    G02478366Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Release 2 clips and pull IPDM E/R up from case.

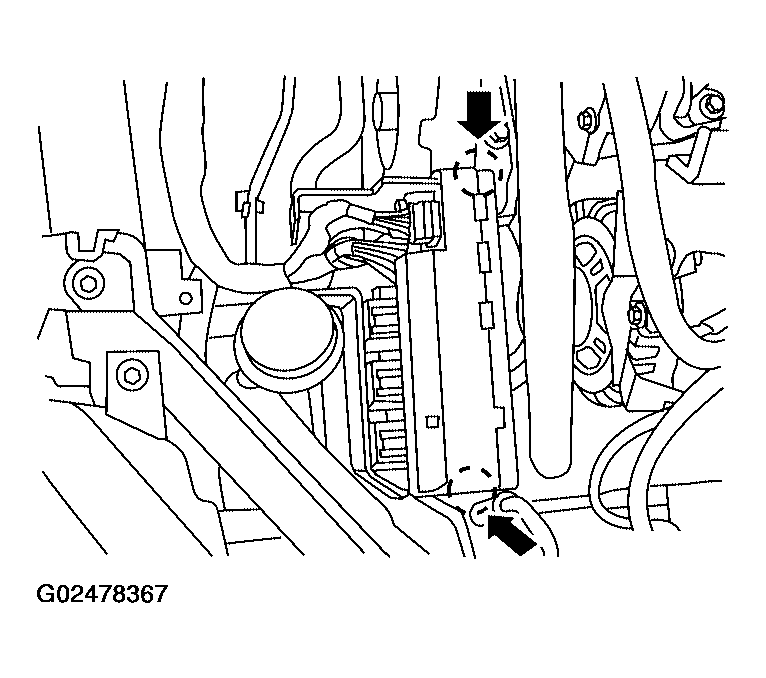

    Fig 3: Releasing 2 Clips
    G02478367Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Disconnect IPDM E/R connectors and remove the IPDM E/R.
