All Signals, Main Signals, Select From Menu

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

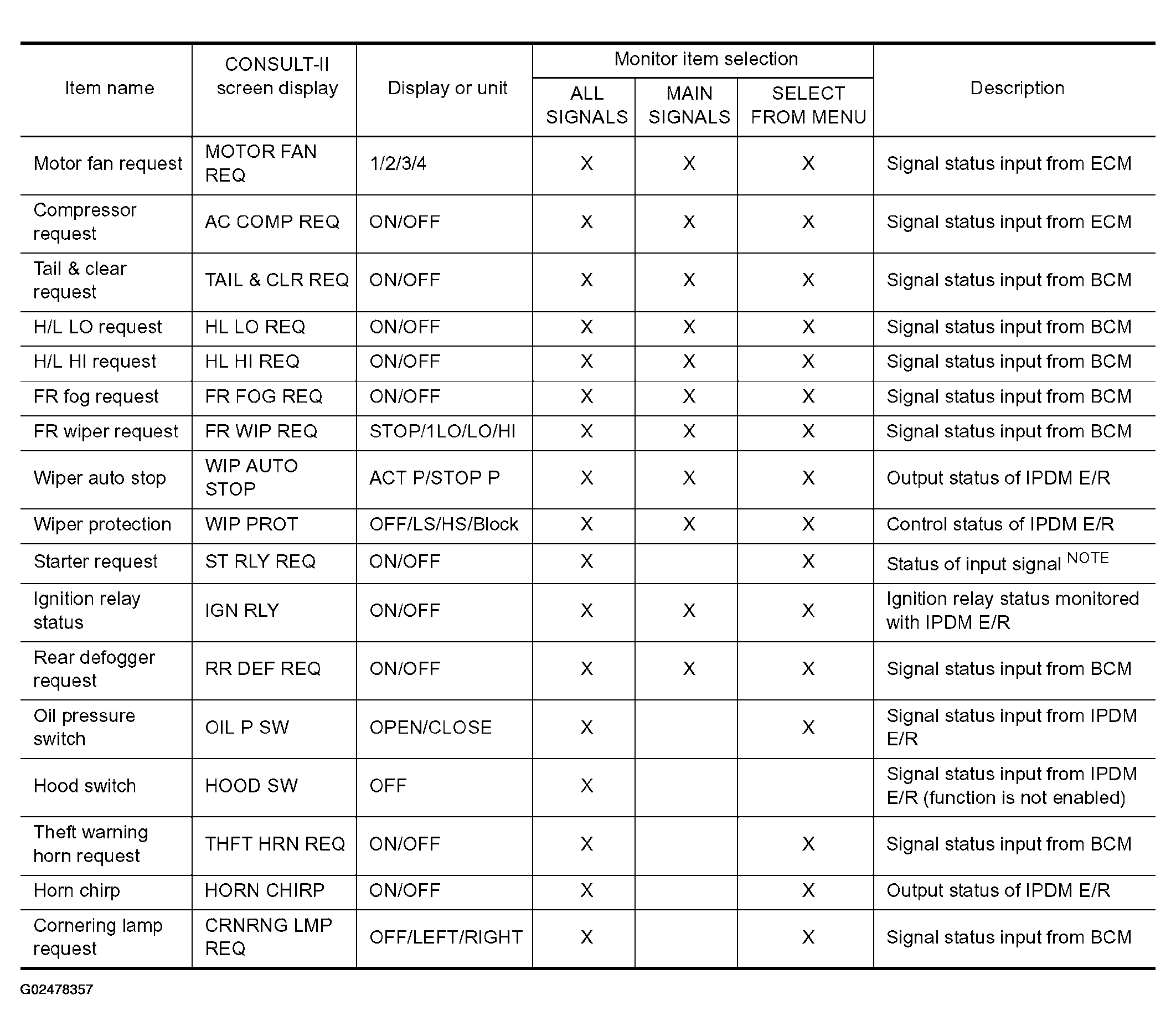

Fig 1: CONSULT-II Screen Display Description Chart
G02478357Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Perform monitoring of IPDM E/R data with the ignition switch ON. When the ignition switch is in ACC position, display may not be correct.
