Main Harness

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

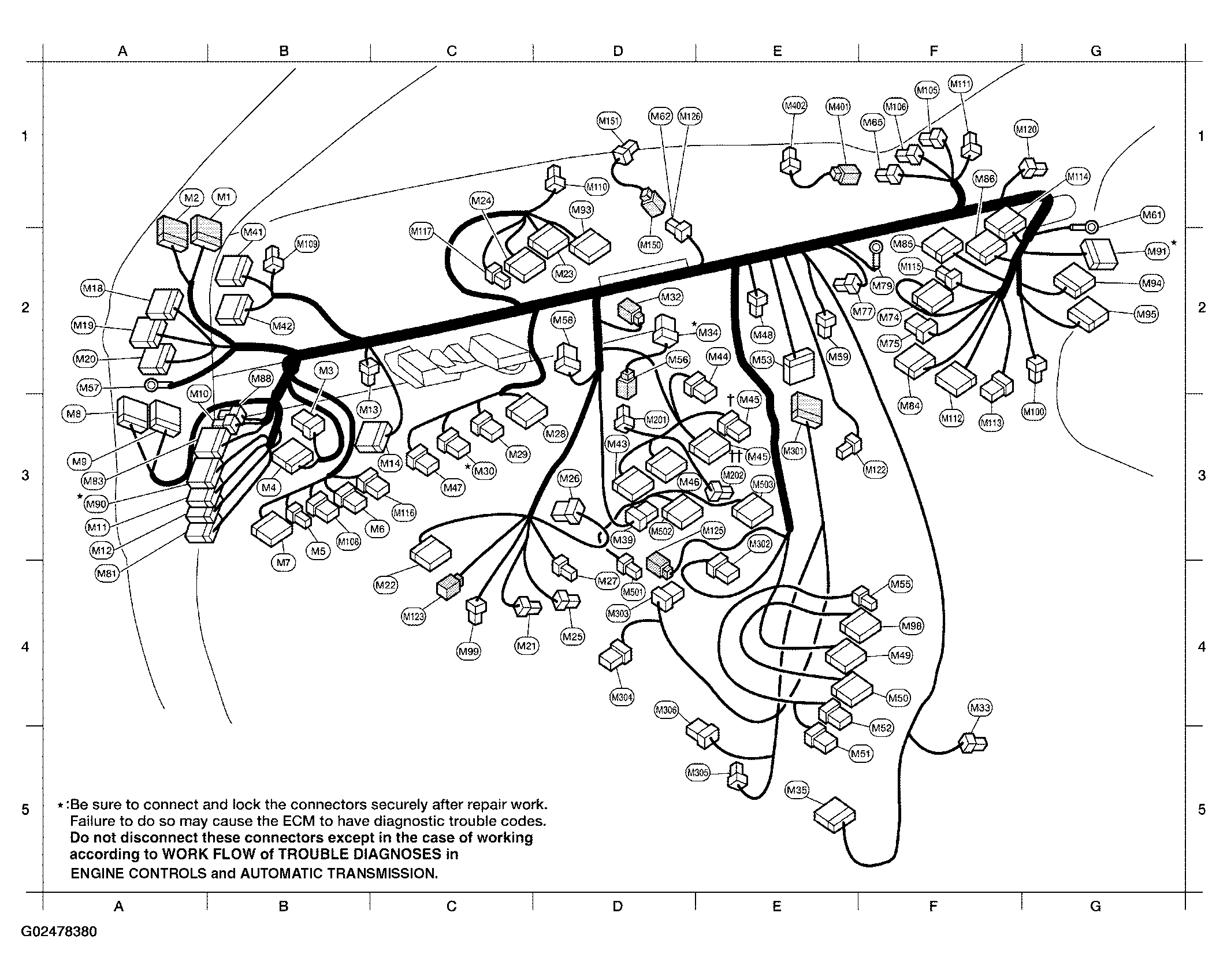

Fig 1: Identifying Main Harness Connector
G02478380Courtesy of NISSAN MOTOR CO., U.S.A.

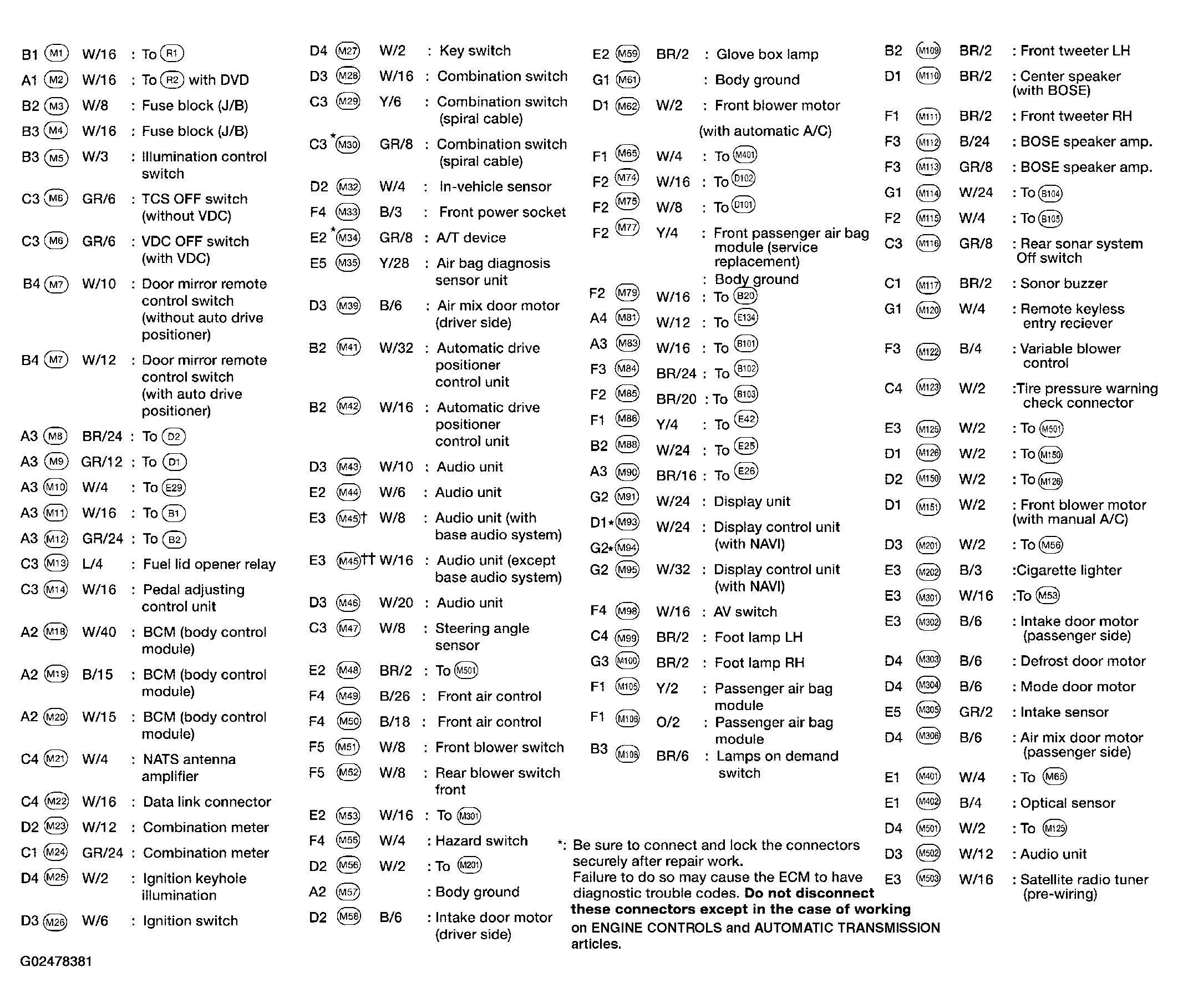

Fig 2: Harness Connector Reference Chart
G02478381Courtesy of NISSAN MOTOR CO., U.S.A.
