Engine Compartment

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

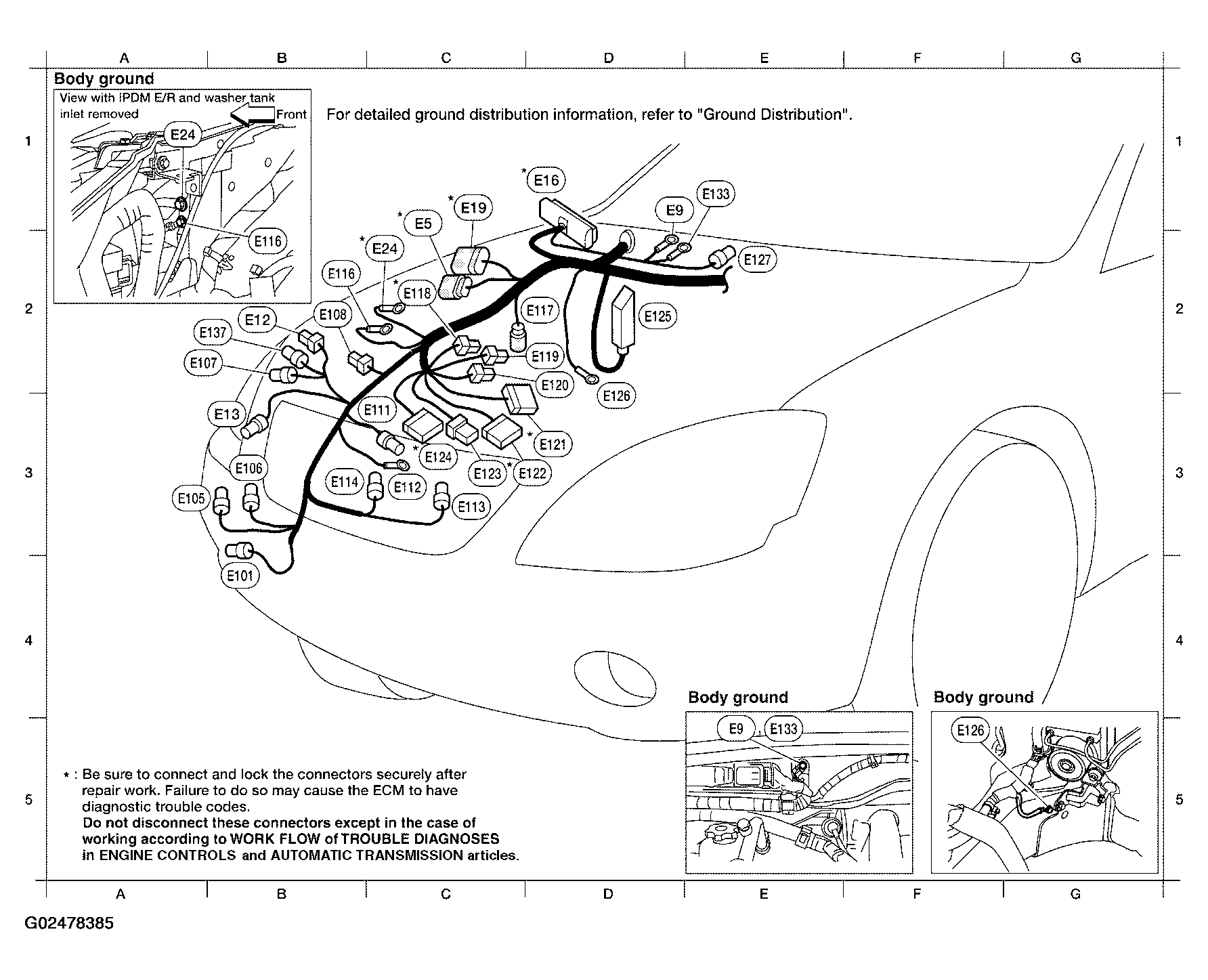

Fig 1: Identifying Engine Room Harness Engine Compartment
G02478385Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "ENGINE ROOM HARNESS (LH VIEW) " for continuation of engine room harness.

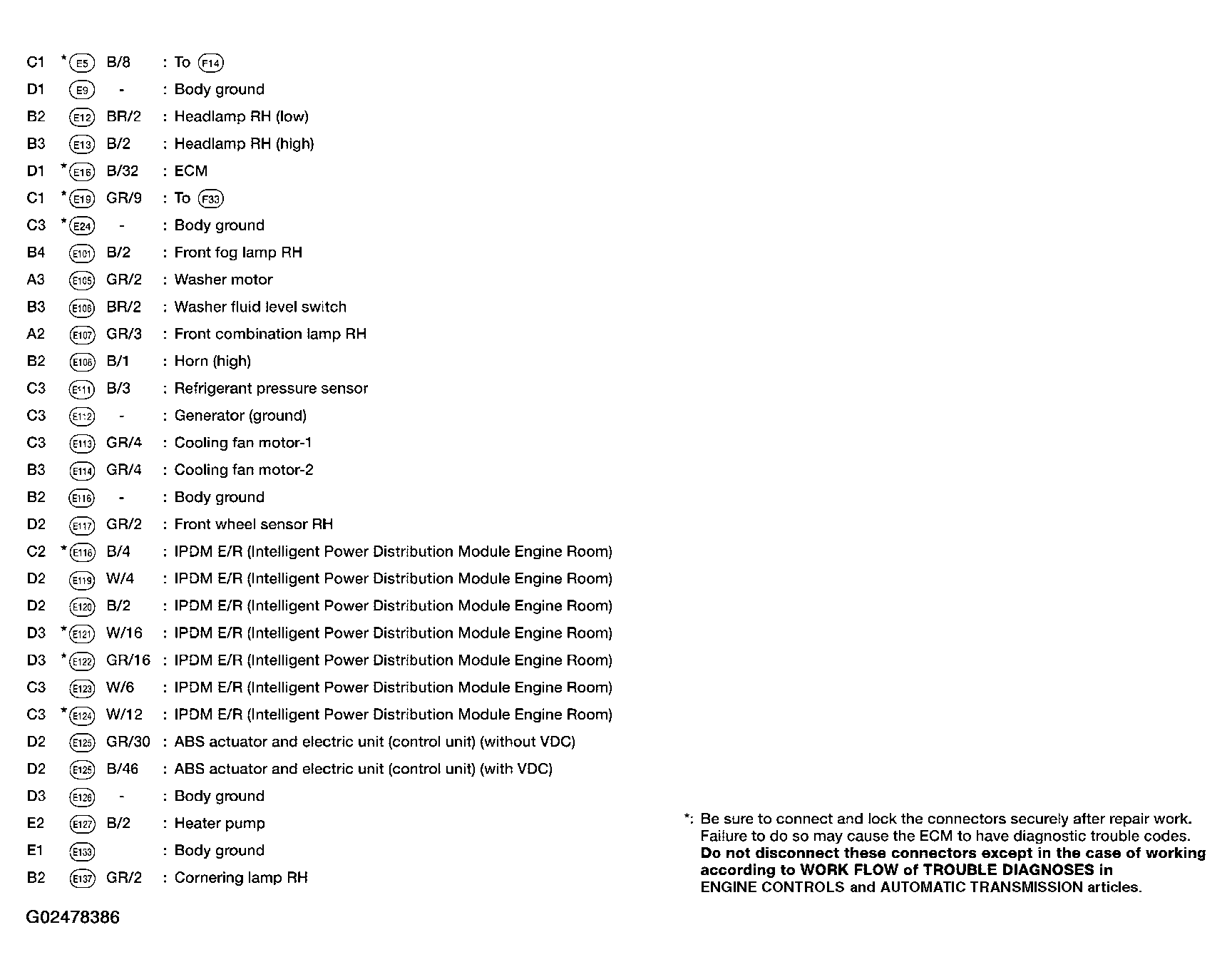

Fig 2: Engine Room Harness Engine Compartment Reference Chart
G02478386Courtesy of NISSAN MOTOR CO., U.S.A.
