Engine Compartment

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

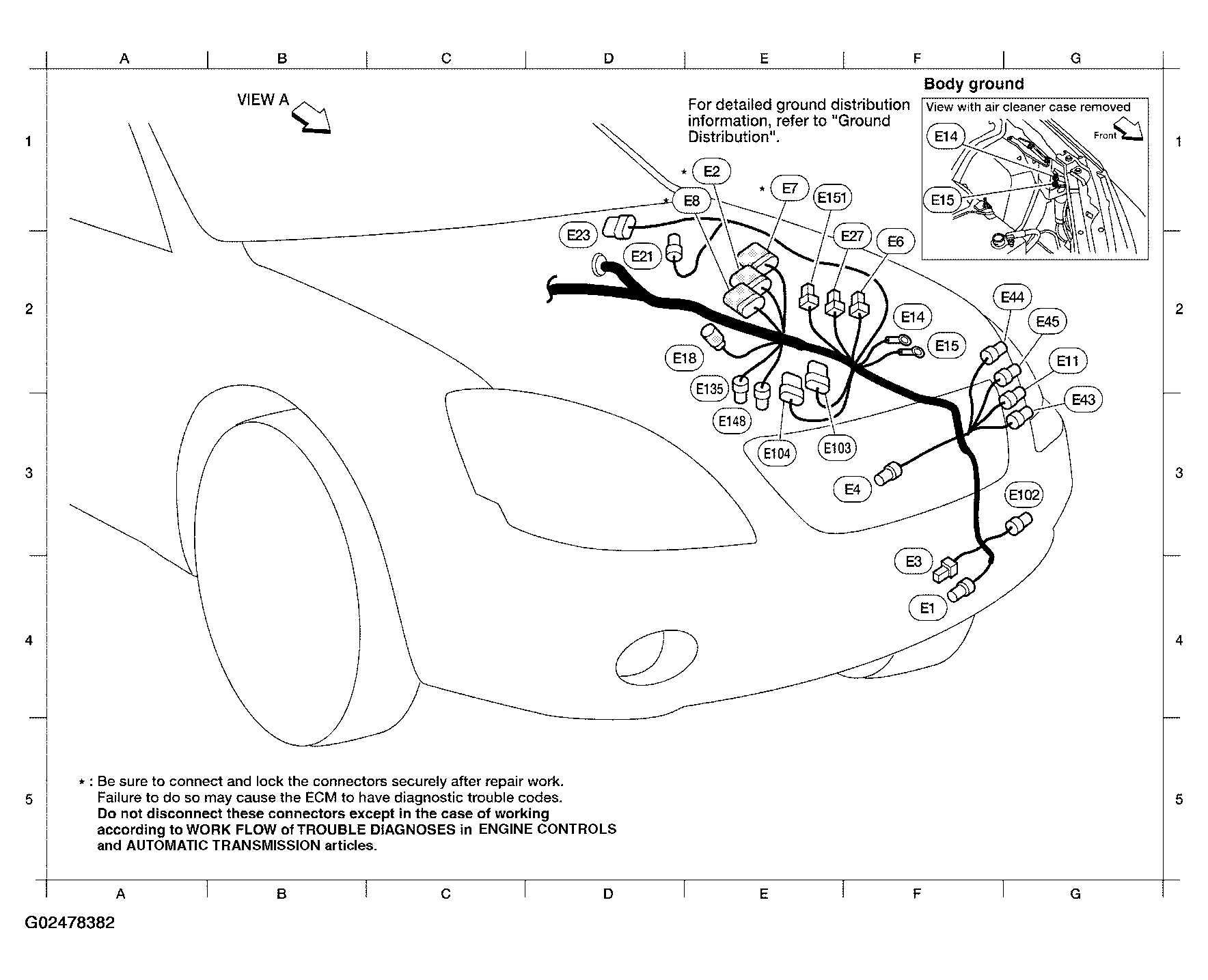

Fig 1: Identifying Engine Room Harness In Engine Compartment
G02478382Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "ENGINE ROOM HARNESS (RH VIEW) " for continuation of engine room harness.

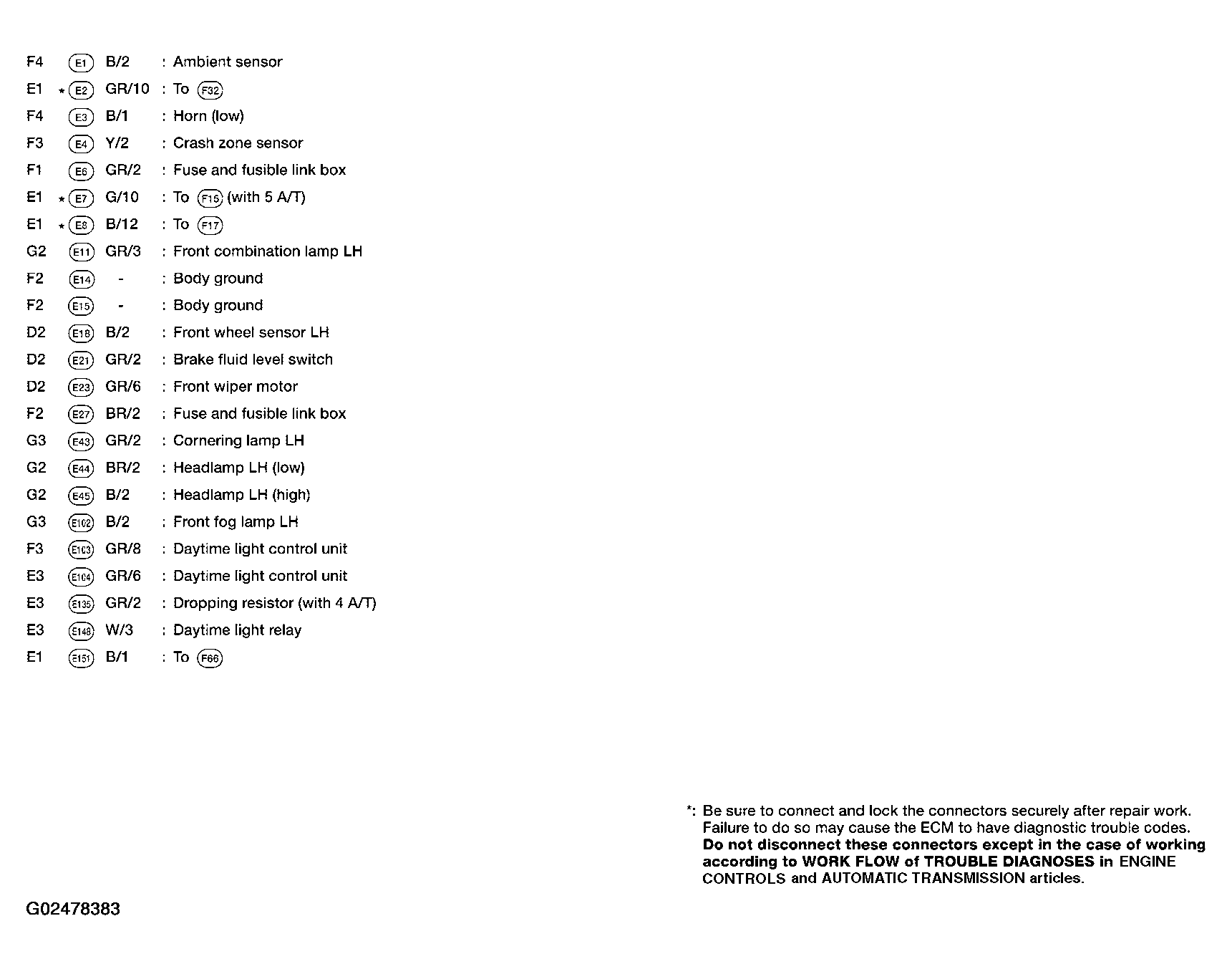

Fig 2: Engine Room Harness Reference Chart
G02478383Courtesy of NISSAN MOTOR CO., U.S.A.
