Engine Control Harness

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

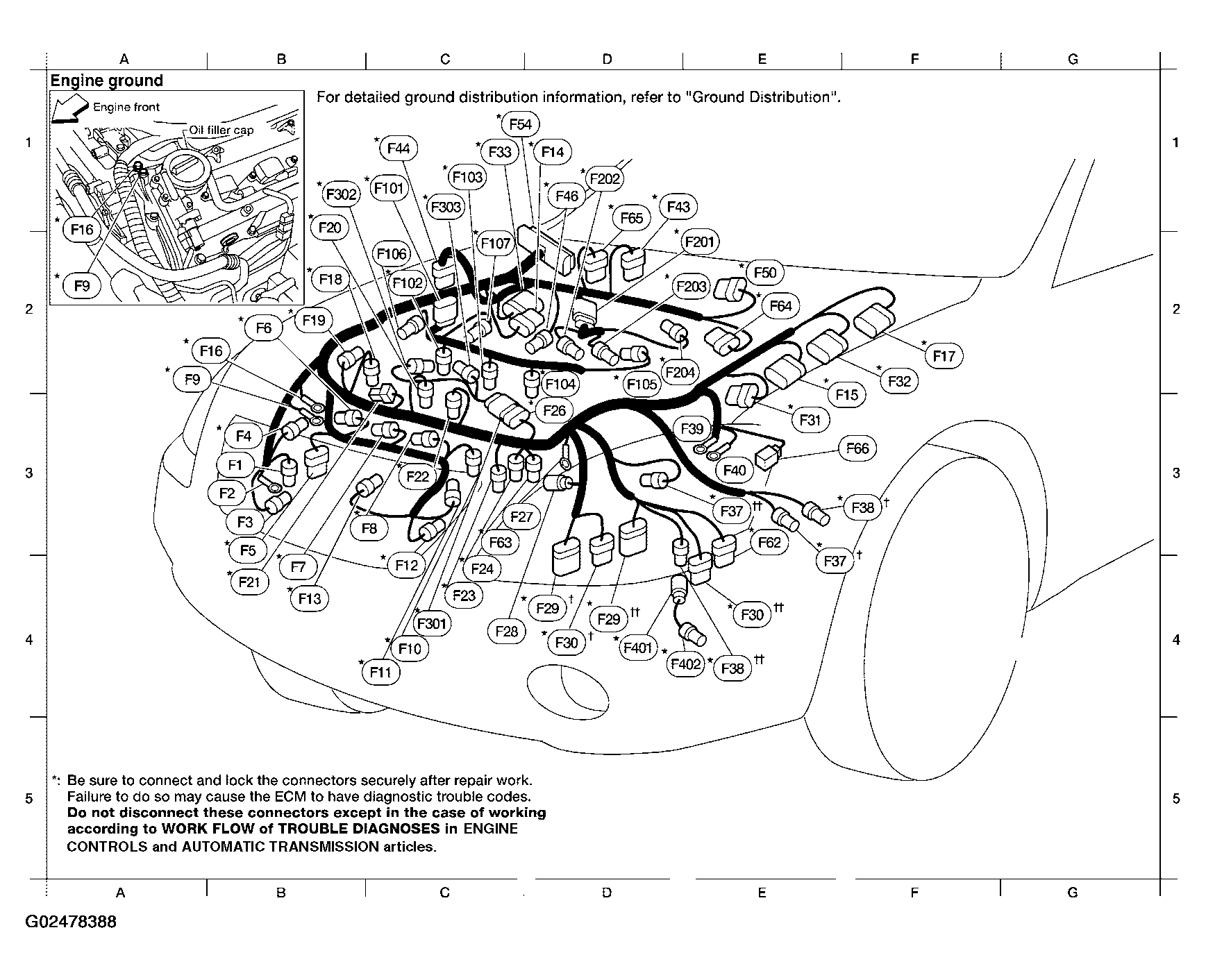

Fig 1: Engine Control Harness Connector
G02478388Courtesy of NISSAN MOTOR CO., U.S.A.

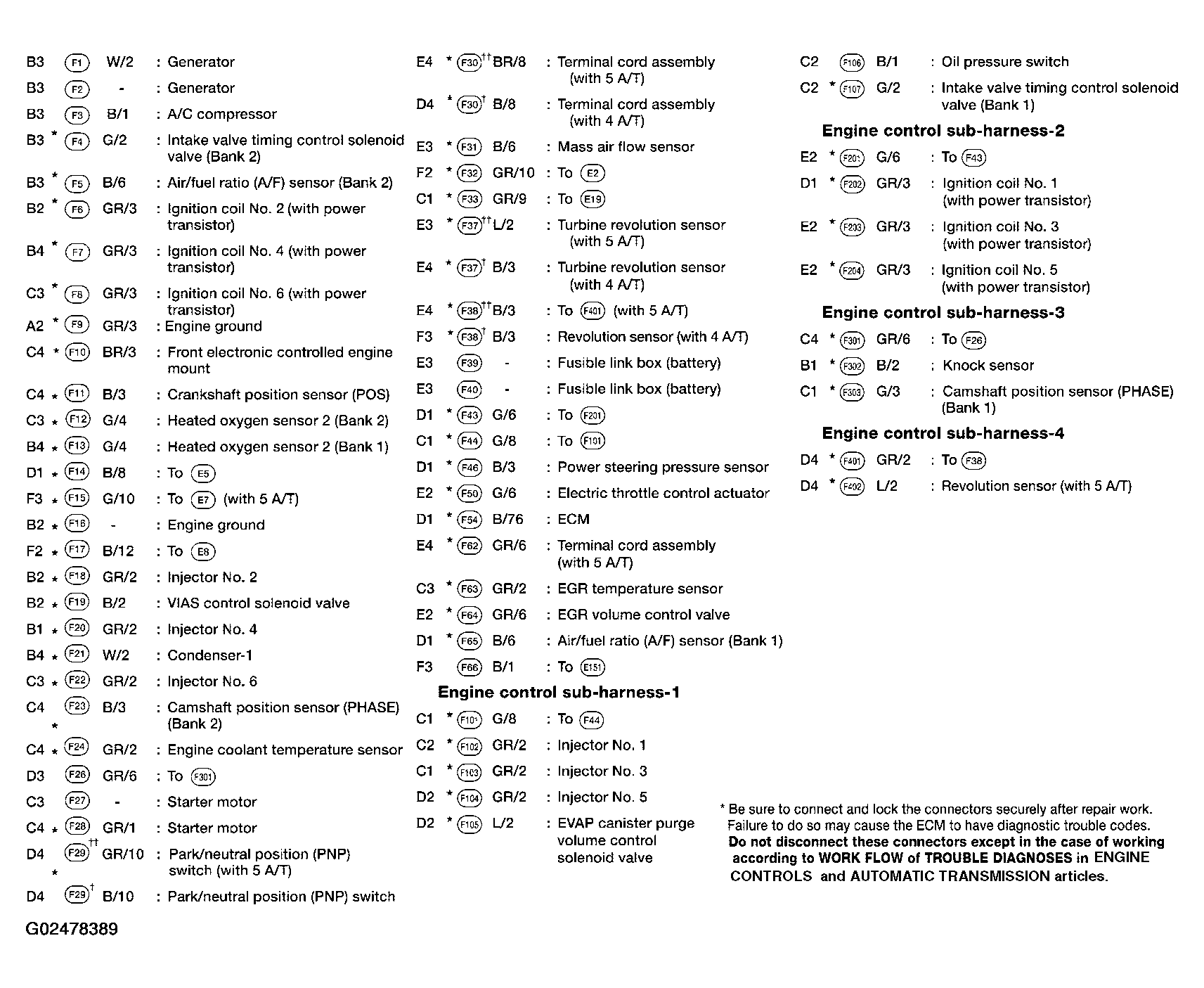

Fig 2: Engine Control Harness Connector Reference Chart
G02478389Courtesy of NISSAN MOTOR CO., U.S.A.
