Connector Symbol

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

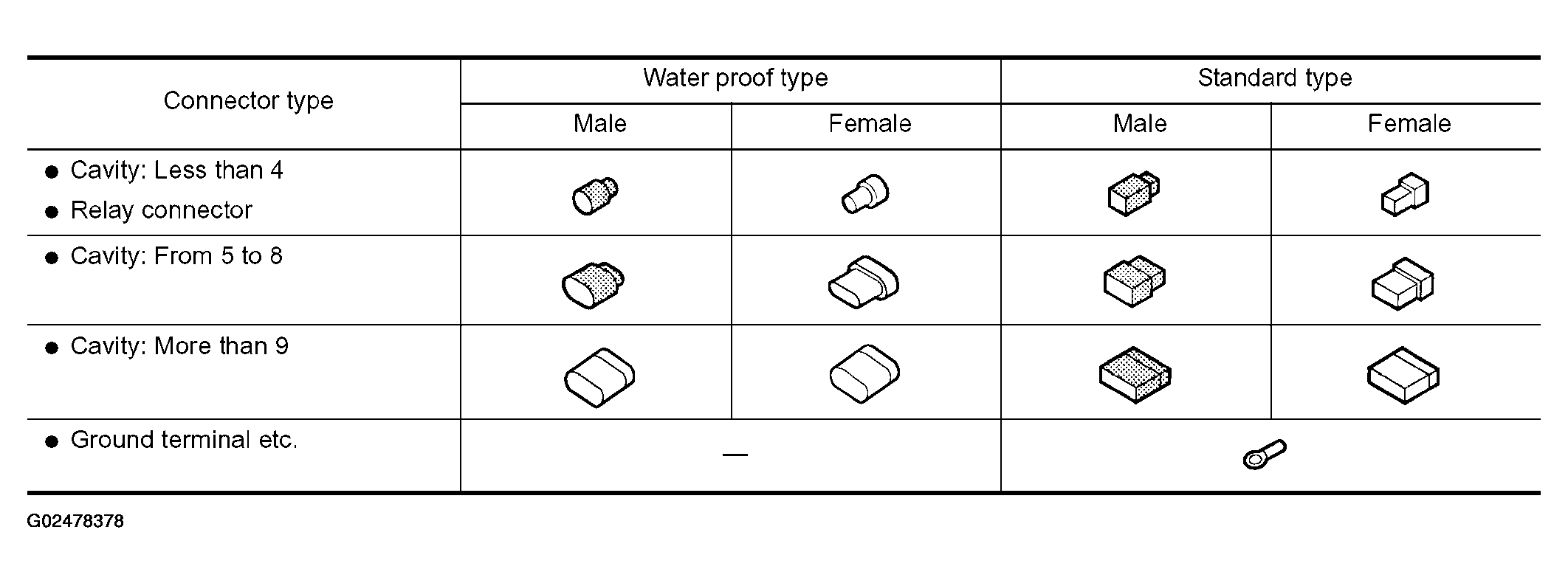

Main symbols of connector (in Harness Layout) are indicated below.

Fig 1: Identifying Connector Type

Courtesy of NISSAN MOTOR CO., U.S.A.
