Body No. 2 Harness

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

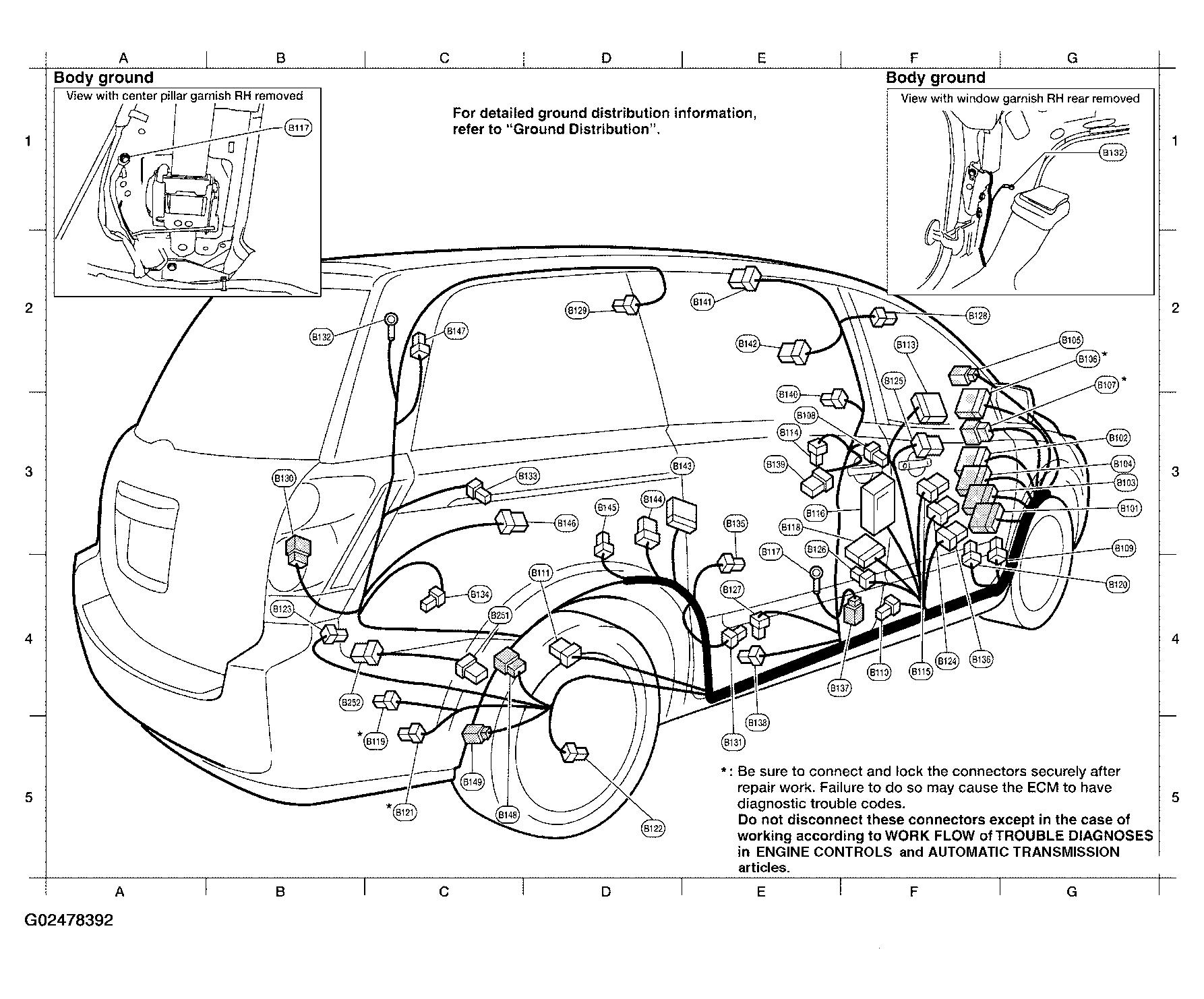

Fig 1: Body No. 2 Harness Connector
G02478392Courtesy of NISSAN MOTOR CO., U.S.A.

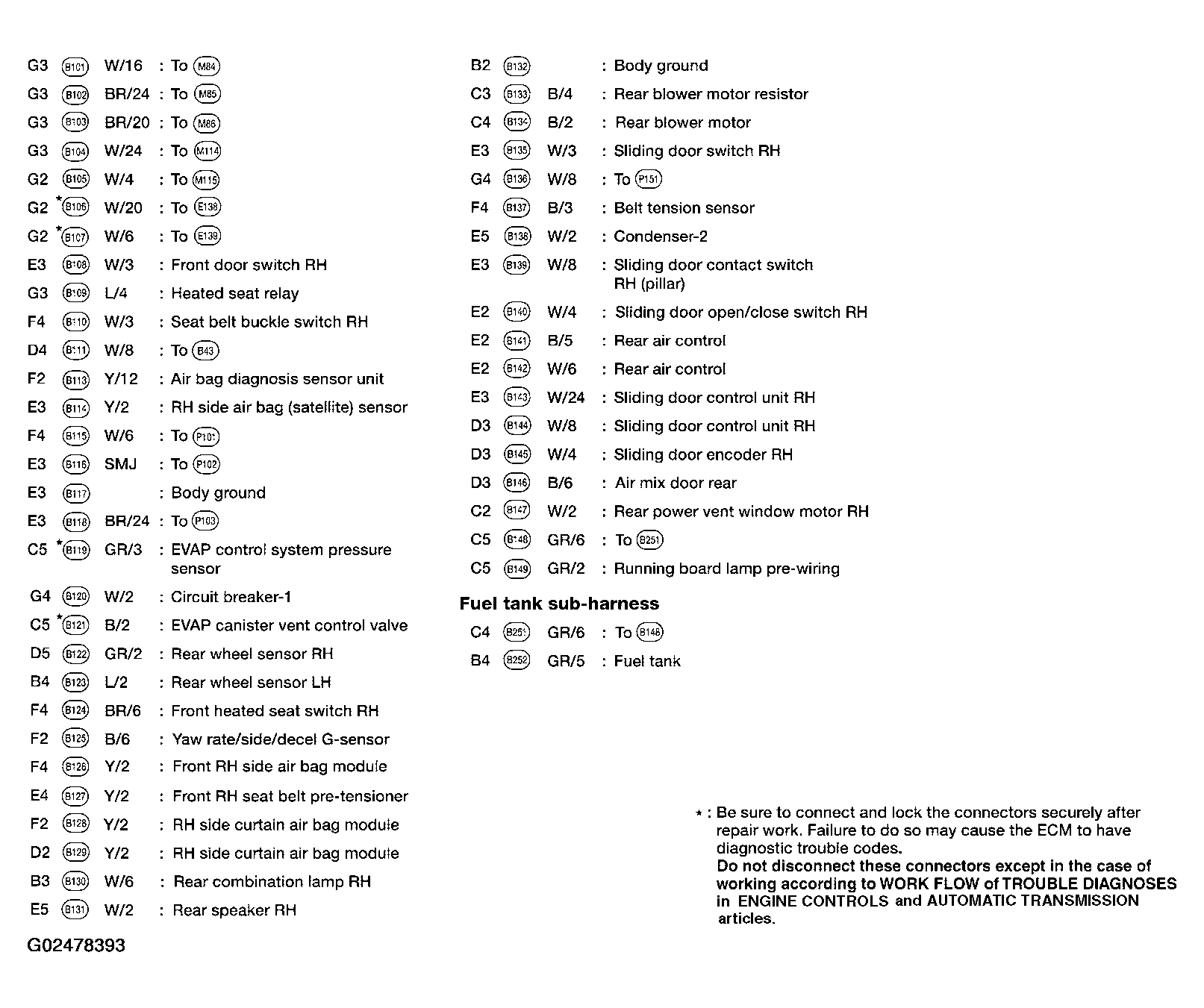

Fig 2: Body No. 2 Harness Connector Reference Chart
G02478393Courtesy of NISSAN MOTOR CO., U.S.A.
