Checking Temperature Decrease

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Rotate temperature dial counterclockwise.

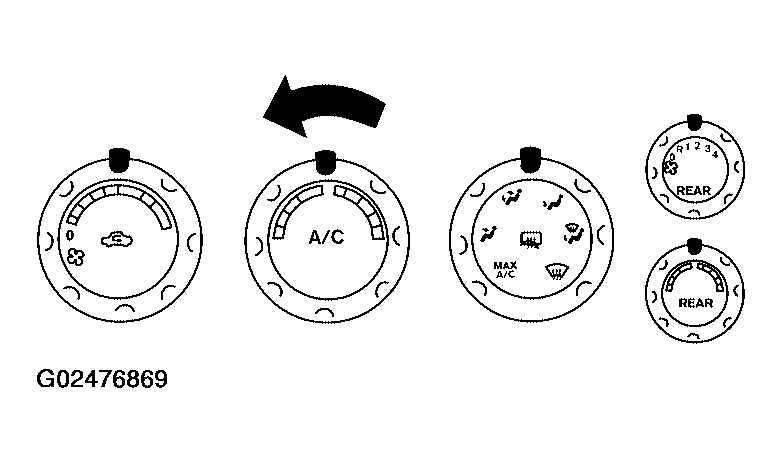

Fig 1: Checking Temperature Decrease
Courtesy of NISSAN MOTOR CO., U.S.A.
Check for cold air at appropriate discharge air outlets.
- If NG, listen for sound of air mix door motor operation if OK, go to trouble diagnosis procedure for "INSUFFICIENT COOLING ". If air mix door motor appears to be malfunctioning, go to "DIAGNOSTIC PROCEDURE FOR AIR MIX DOOR MOTOR (FRONT) ".
- If OK, continue with next check.
