Checking Discharge Air

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

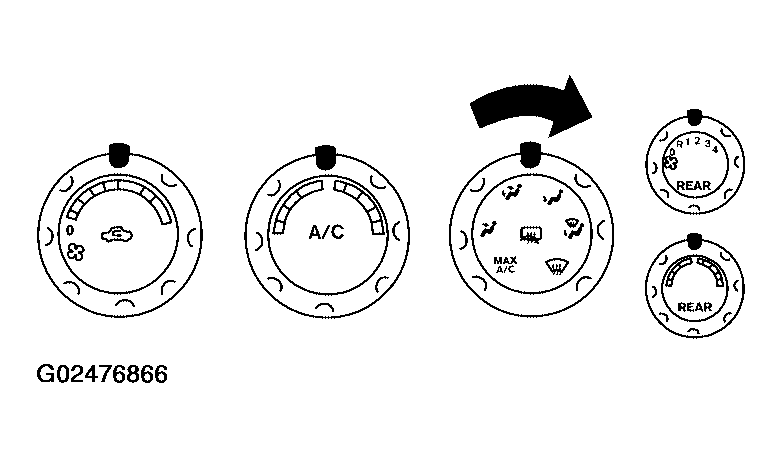

Turn the mode switch.
Each position indicator should change shape (on display).

Fig 1: Checking Discharge Air
Courtesy of NISSAN MOTOR CO., U.S.A.

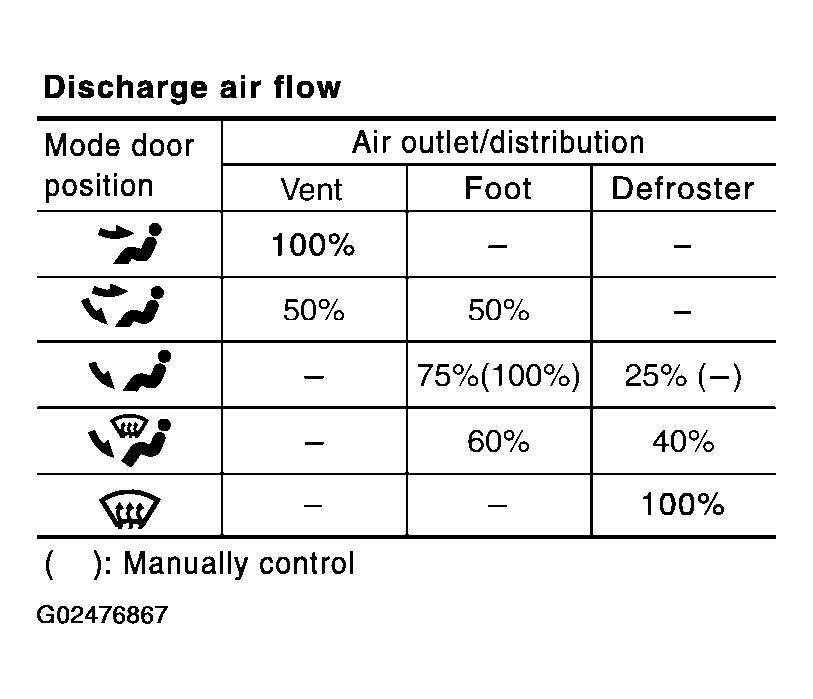

Confirm that discharge air comes out according to the air distribution table. Refer to "DISCHARGE AIR FLOW ".
Mode door position is checked in the next step.

Fig 2: Identifying Air Flow Discharge
Courtesy of NISSAN MOTOR CO., U.S.A.
- If NG, go to trouble diagnosis procedure for "MODE DOOR MOTOR CIRCUIT ".
- If OK, continue with next check.
  NOTE: Confirm that the compressor clutch is engaged (sound or visual inspection) and intake door position is at fresh when the DEF or D/F is selected.
