Checking Blower

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

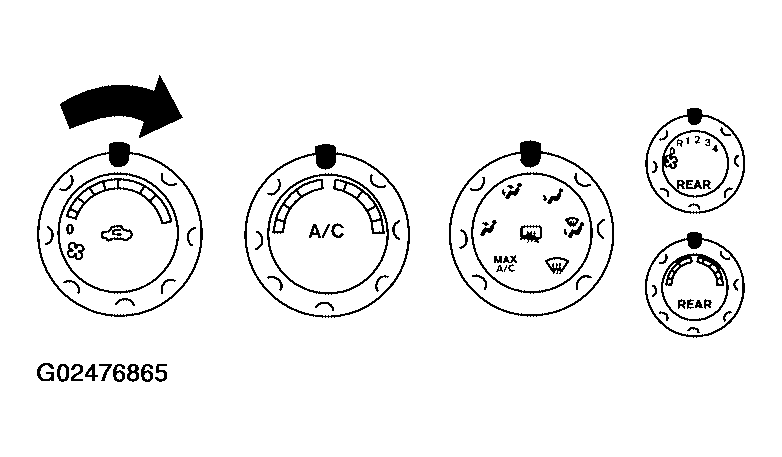

Fig 1: Checking Blower

Courtesy of NISSAN MOTOR CO., U.S.A.

Turn fan control switch clockwise. Blower should operate on low speed. The fan symbol should have one blade lit (on display).
Turn the fan control switch again, and continue checking blower speed and fan symbol until all speeds are checked.
Leave blower on MAX speed.
- If NG, go to trouble diagnosis procedure for "DIAGNOSTIC PROCEDURE FOR BLOWER MOTOR "
- If OK, continue with next check.
