Check A/C Switch

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press A/C switch with the fan switch ON.

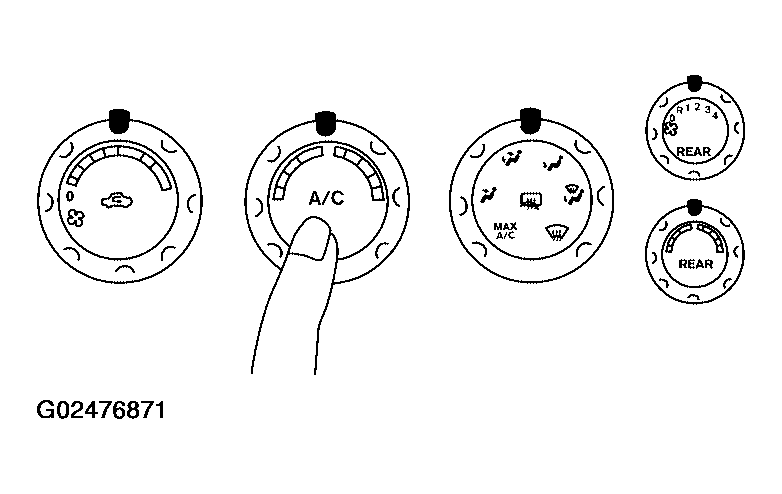

    Fig 1: Checking A/C Switch
    G02476871Courtesy of NISSAN MOTOR CO., U.S.A.
  2. A/C switch indicator will turn ON.
    • Confirm that the compressor clutch engages (sound or visual inspection).
    • If NG, go to trouble diagnosis procedure for "MAGNET CLUTCH CIRCUIT ".
    • If OK, continue with next check.
