Front Blower Motor Relay

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between terminals by supplying 12 volts and ground to coil side terminals of relay.

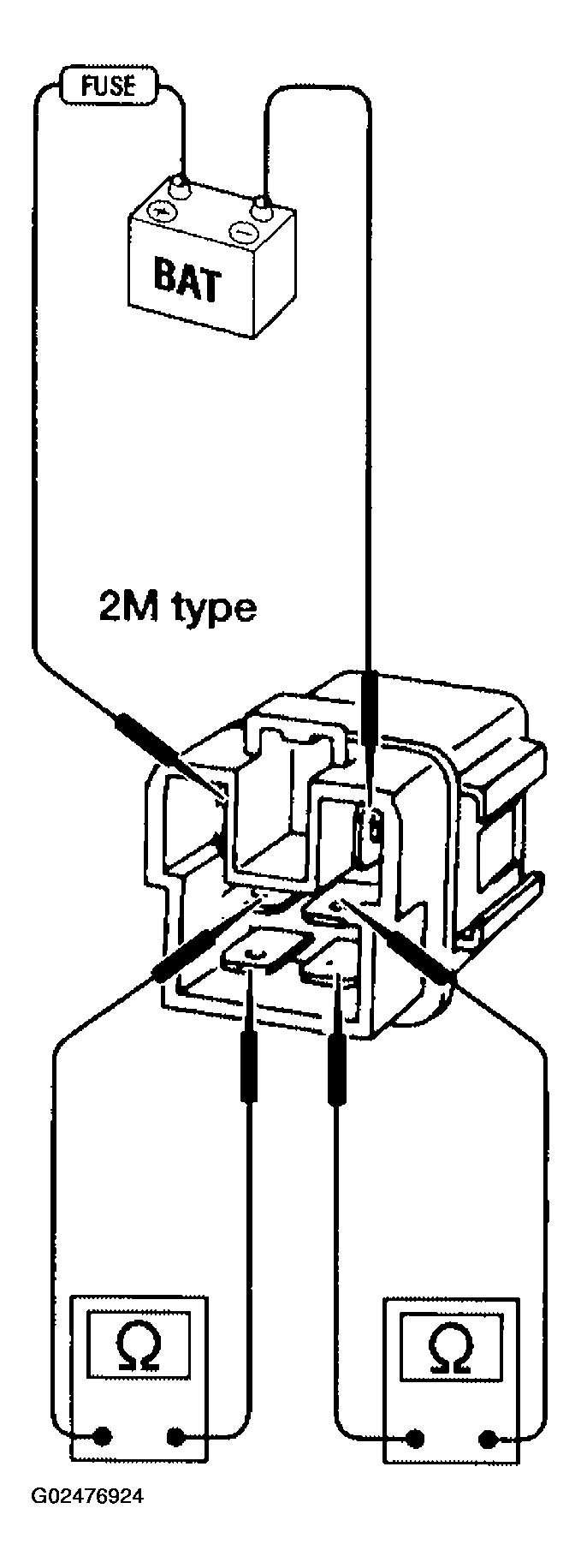

Fig 1: Checking Continuity Between Terminals By Supplying 12 Volts & Ground To Coil Side Terminals Of Relay
G02476924Courtesy of NISSAN MOTOR CO., U.S.A.
