Operation Procedure

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Touch "AIR CONDITIONER" on "SELECT TEST ITEM" screen.

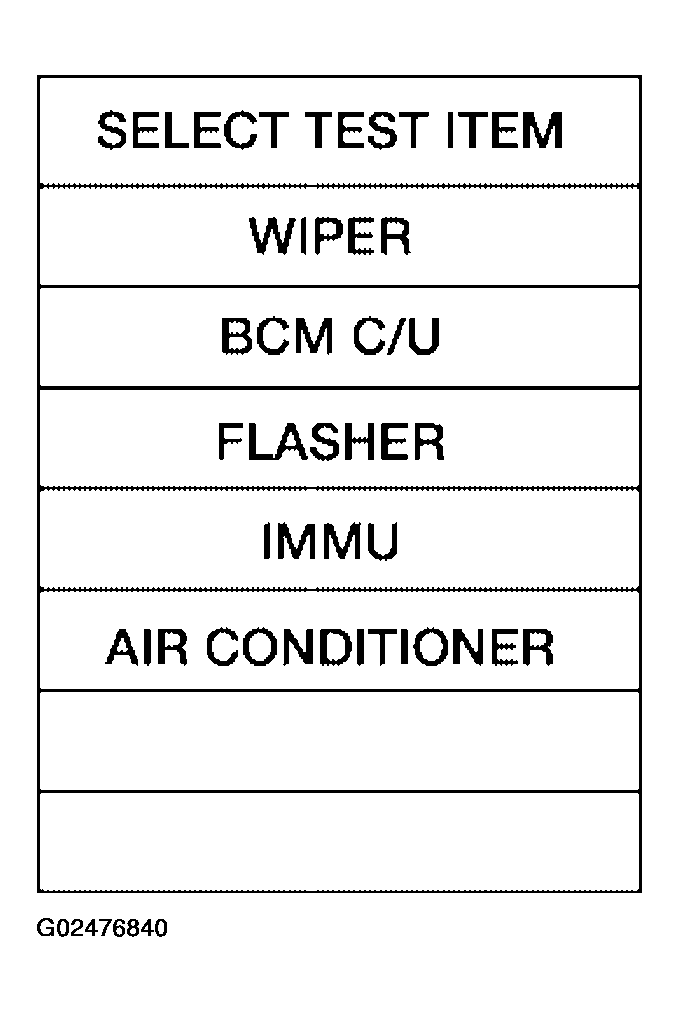

    Fig 1: SELECT TEST ITEM - CONSULT-II Display Screen
    G02476840Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "DATA MONITOR" on "SELECT DIAG MODE" screen.

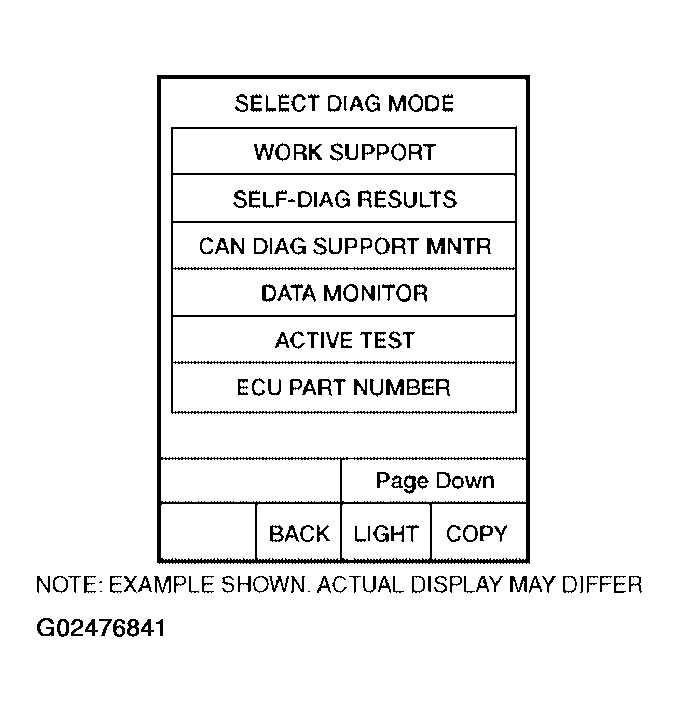

    Fig 2: SELECT DIAG MODE - CONSULT-II Display Screen
    G02476841Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch either "ALL SIGNALS" or "SELECTION FROM MENU" on "DATA MONITOR" screen.

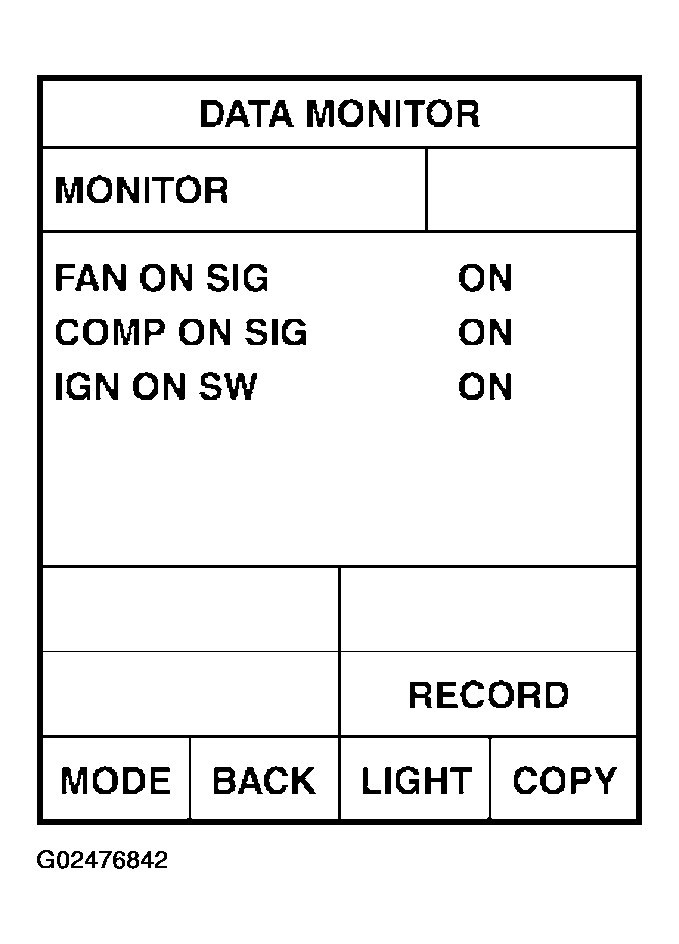

    Fig 3: DATA MONITOR - CONSULT-II Display Screen
    G02476842Courtesy of NISSAN MOTOR CO., U.S.A.
    DATA MONITOR REFERENCE TABLE

    All signals Monitors all the items.
    Selection from menu Selects and monitors the individual item selected.
  4. Touch "START".
  5. When "SELECTION FROM MENU" is selected, touch items to be monitored. When "ALL SIGNALS" is selected, all the items will be monitored.
  6. Touch "RECORD" while monitoring, then the status of the monitored item can be recorded. To stop recording, touch "STOP".
