Removal and Installation for Compressor Clutch: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine under cover and the splash shield.
  2. Remove the drive belt. Refer to "DRIVE BELTS ".
  3. Remove the center bolt while holding the clutch disc stationary using Tool as shown.
    • Tool number: J-44614
  4. Remove the clutch disc.

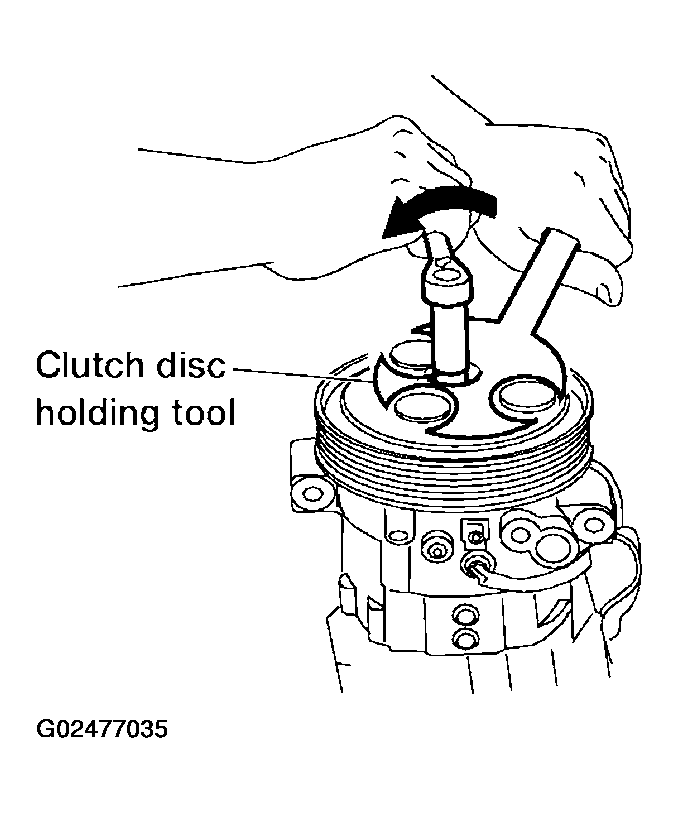

    Fig 1: Removing Clutch Disc
    G02477035Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove the snap ring using external snap ring pliers or suitable tool.

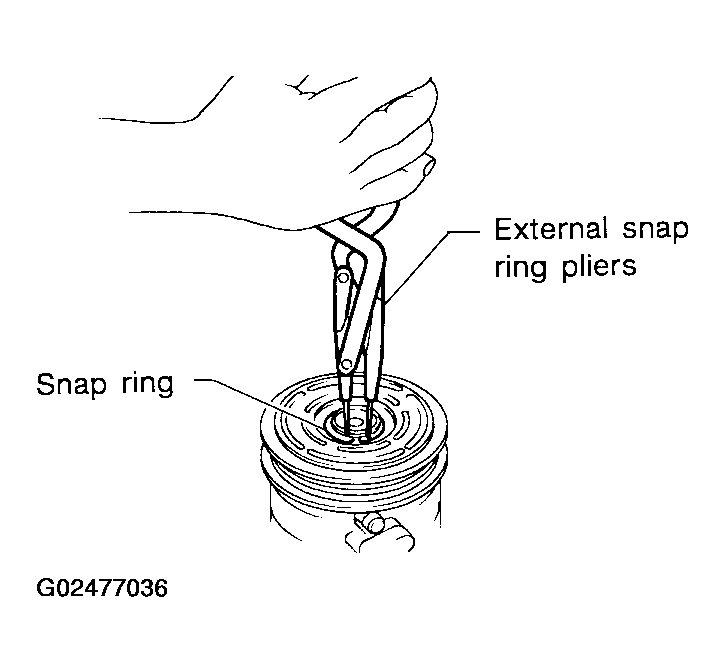

    Fig 2: Removing Snap Ring Using External Snap Ring Pliers
    G02477036Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Remove the pulley using Tool with a small adapter. Position the small adapter on the end of the drive shaft and the center of the puller on the small adapter.
    • Tool number: KV99233130 (J-29884)
    CAUTION: To prevent deformation of the pulley groove, the puller claws should be hooked under the pulley groove and not into the pulley groove.

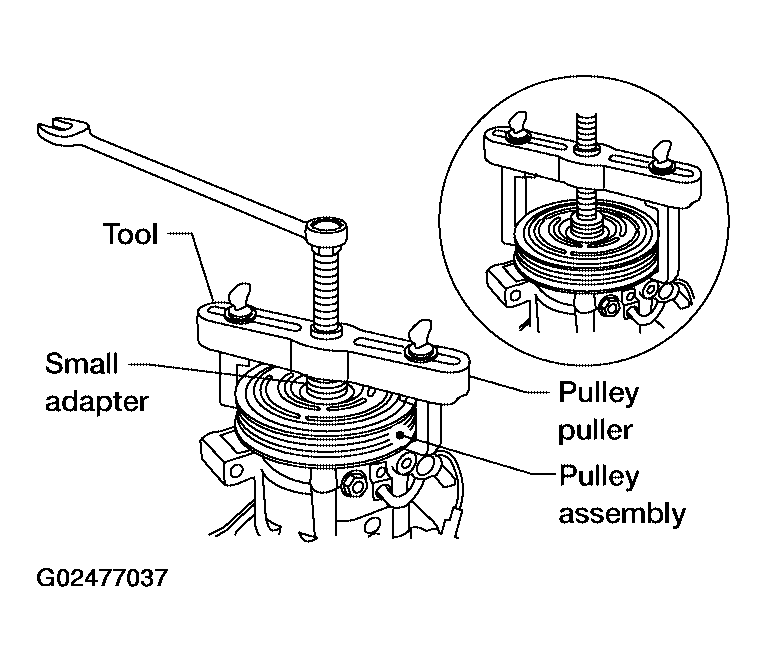

    Fig 3: Removing Pulley Using Tool
    G02477037Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Remove the magnet coil harness clip using a screwdriver, remove the three magnet coil fixing screws and remove the magnet coil.

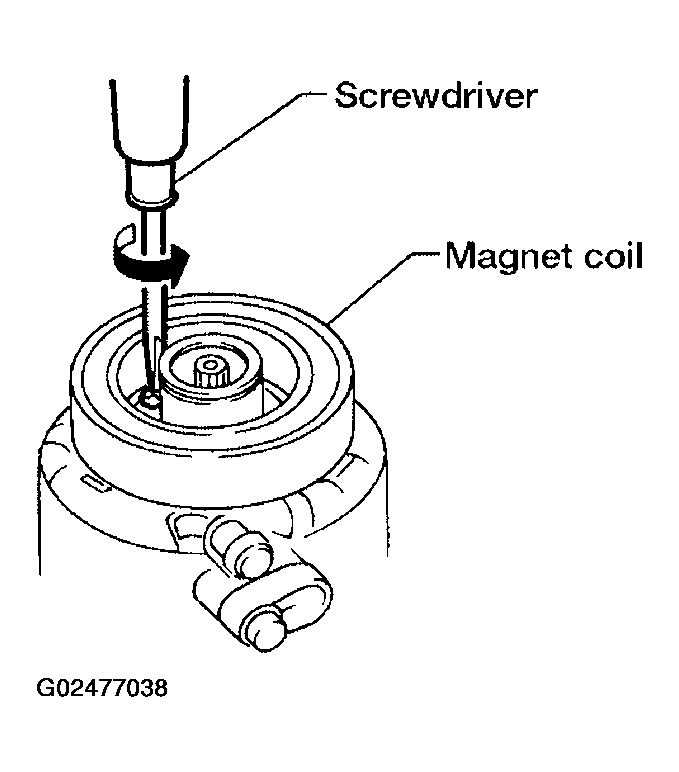

    Fig 4: Removing Magnet Coil Harness Clip Using Screwdriver
    G02477038Courtesy of NISSAN MOTOR CO., U.S.A.
