Removal and Installation for Compressor Clutch: Installation

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Install the magnet coil.
CAUTION: Be sure to align the magnet coil pin with the hole in the compressor front head.

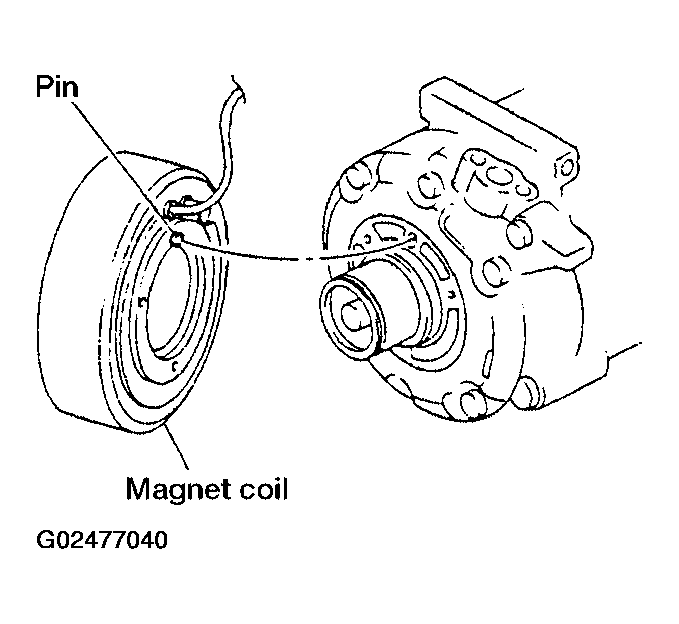

Fig 1: Installing Magnet Coil
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the magnet coil harness clip using a screwdriver.
Install the pulley assembly using Tool and a wrench, then install the snap ring using snap ring pliers.
- Tool number: - (J-38873-A)

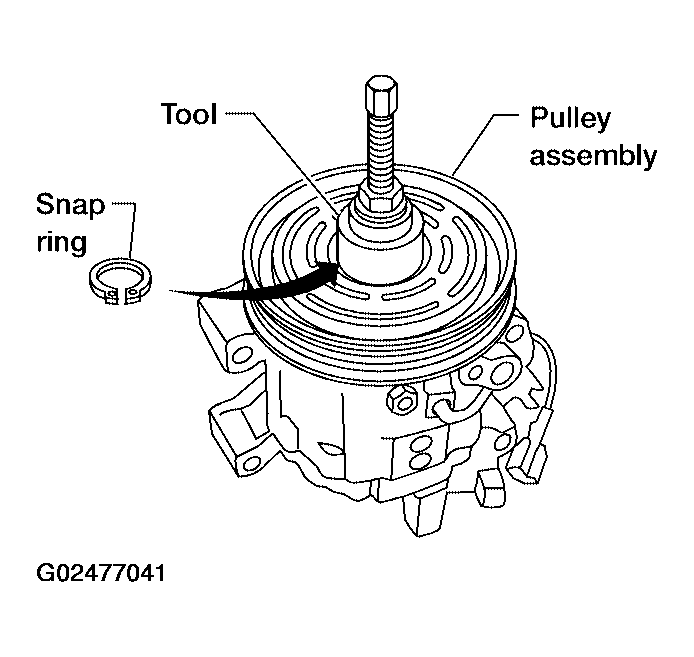

Fig 2: Installing Pulley Assembly Using Tool & Wrench
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the clutch disc on the compressor shaft, together with the original shim(s). Press the clutch disc down by hand.

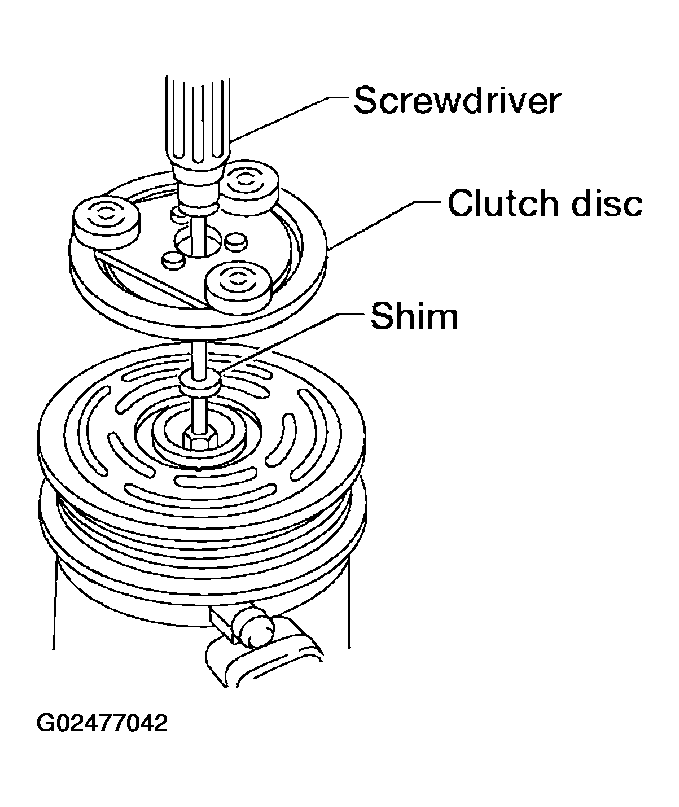

Fig 3: Installing Clutch Disc On Compressor Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the clutch pulley bolt using Tool, to prevent the clutch disc from turning and tighten the bolt to specification. Refer to "COMPONENTS ".
- Tool number: J-44614
CAUTION: After tightening the clutch pulley bolt, check that the clutch pulley rotates smoothly.

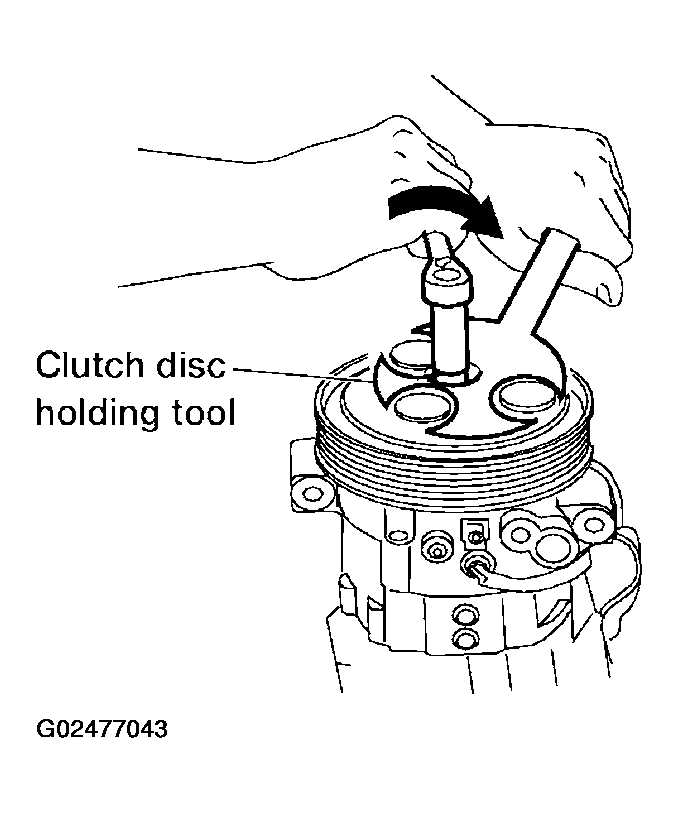

Fig 4: Installing Clutch Pulley Bolt Using Tool
Courtesy of NISSAN MOTOR CO., U.S.A.
Check the pulley clearance all the way around the clutch disc as shown.

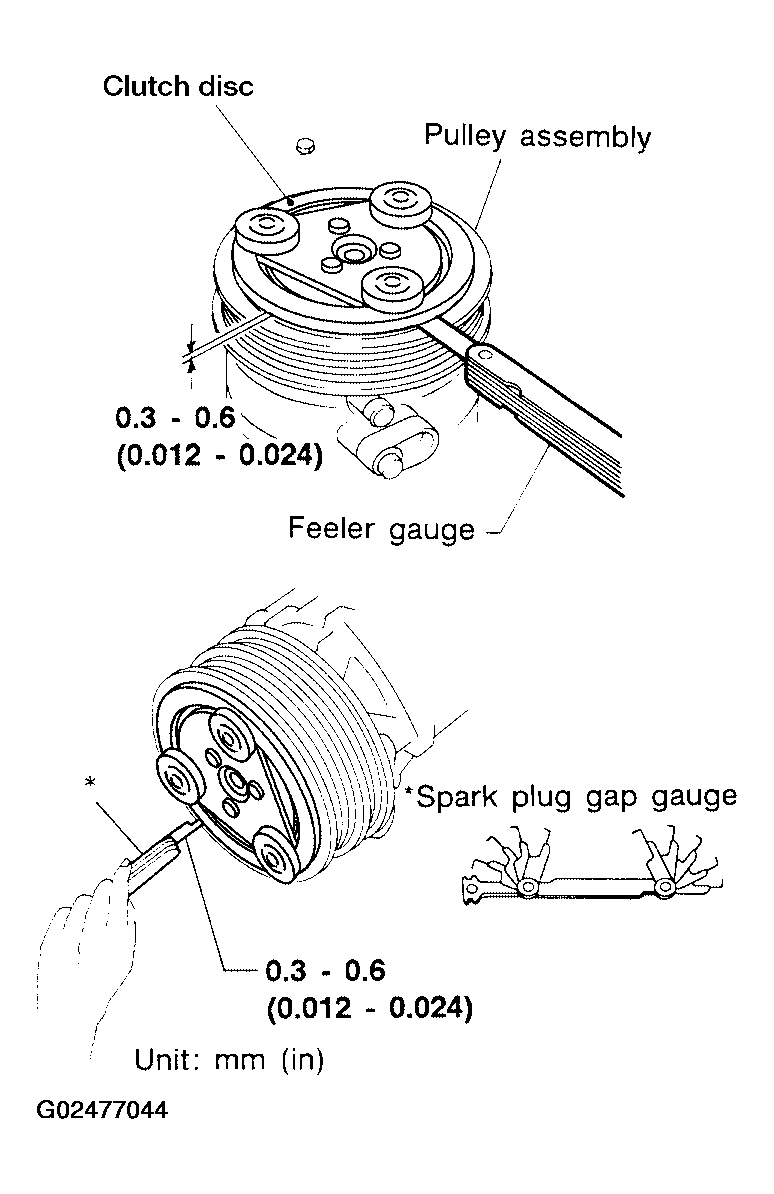

Fig 5: Checking Pulley Clearance Using Feeler Gauge
Courtesy of NISSAN MOTOR CO., U.S.A.
- Clutch disc-to-pulley clearance: 0.3 - 0.6 mm (0.012-0.024 in)
If the specified clearance is not obtained, replace the adjusting spacer to readjust.
