Rear Heater And Cooling Unit Assembly: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Discharge the refrigerant from the A/C system. Refer to "DISCHARGING REFRIGERANT ".
Drain the coolant from the engine cooling system. Refer to "DRAINING ENGINE COOLANT ".
Disconnect the rear heater core hoses from the rear heater core.

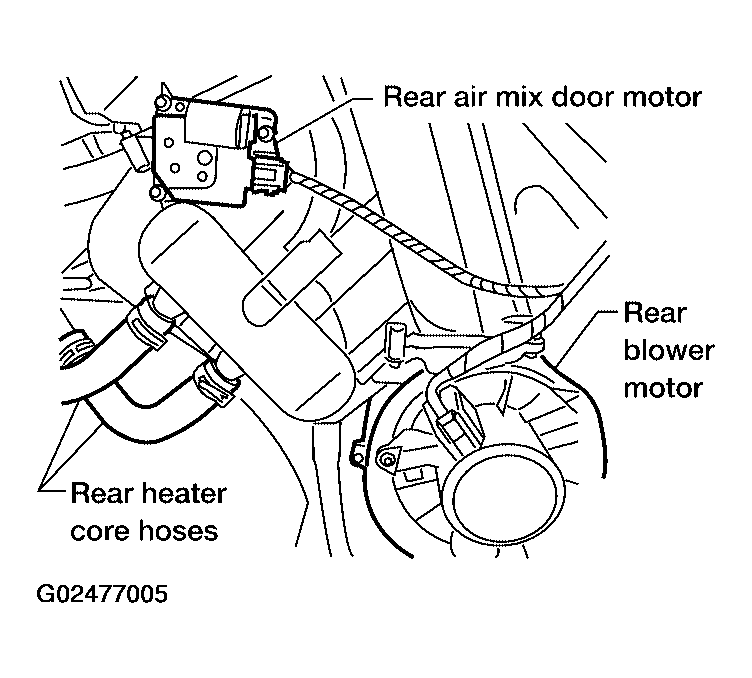

Fig 1: Disconnecting Hoses & Blower Motor From Rear Heater & Cooling Unit Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect the rear A/C pipes from the rear expansion valve.
Remove the rear RH interior trim panel. Refer to "REMOVAL AND INSTALLATION ".
Disconnect the following electrical connectors:
- Rear blower motor
- Rear blower motor resistor
- Rear air mix door motor
Disconnect the ducts from the rear heater and cooling unit assembly.
Remove the rear heater and cooling unit assembly.
