Wiring Diagram - A/C -

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

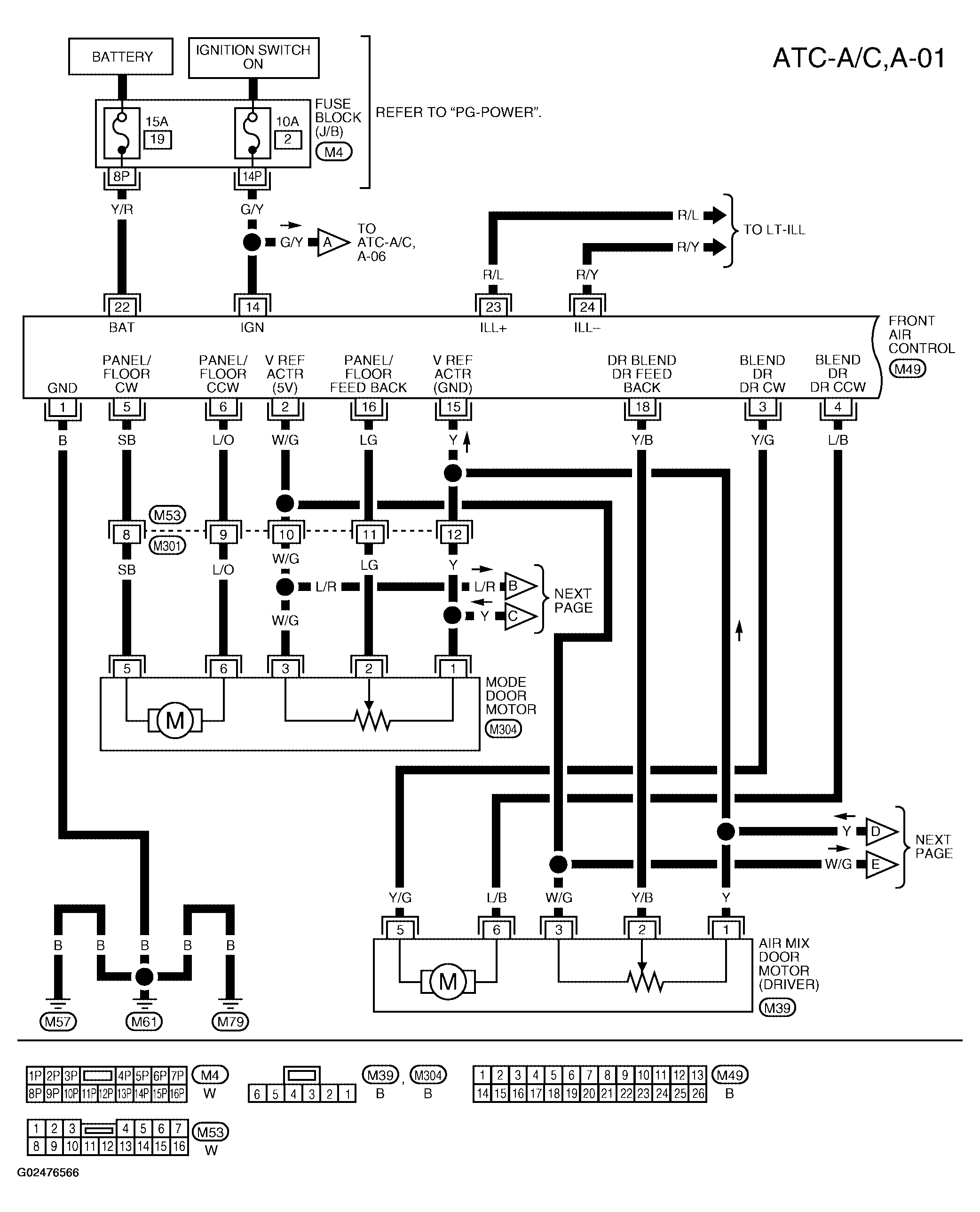

Fig 1: Wiring Diagram - ATC-A/C, A-01

Courtesy of NISSAN MOTOR CO., U.S.A.

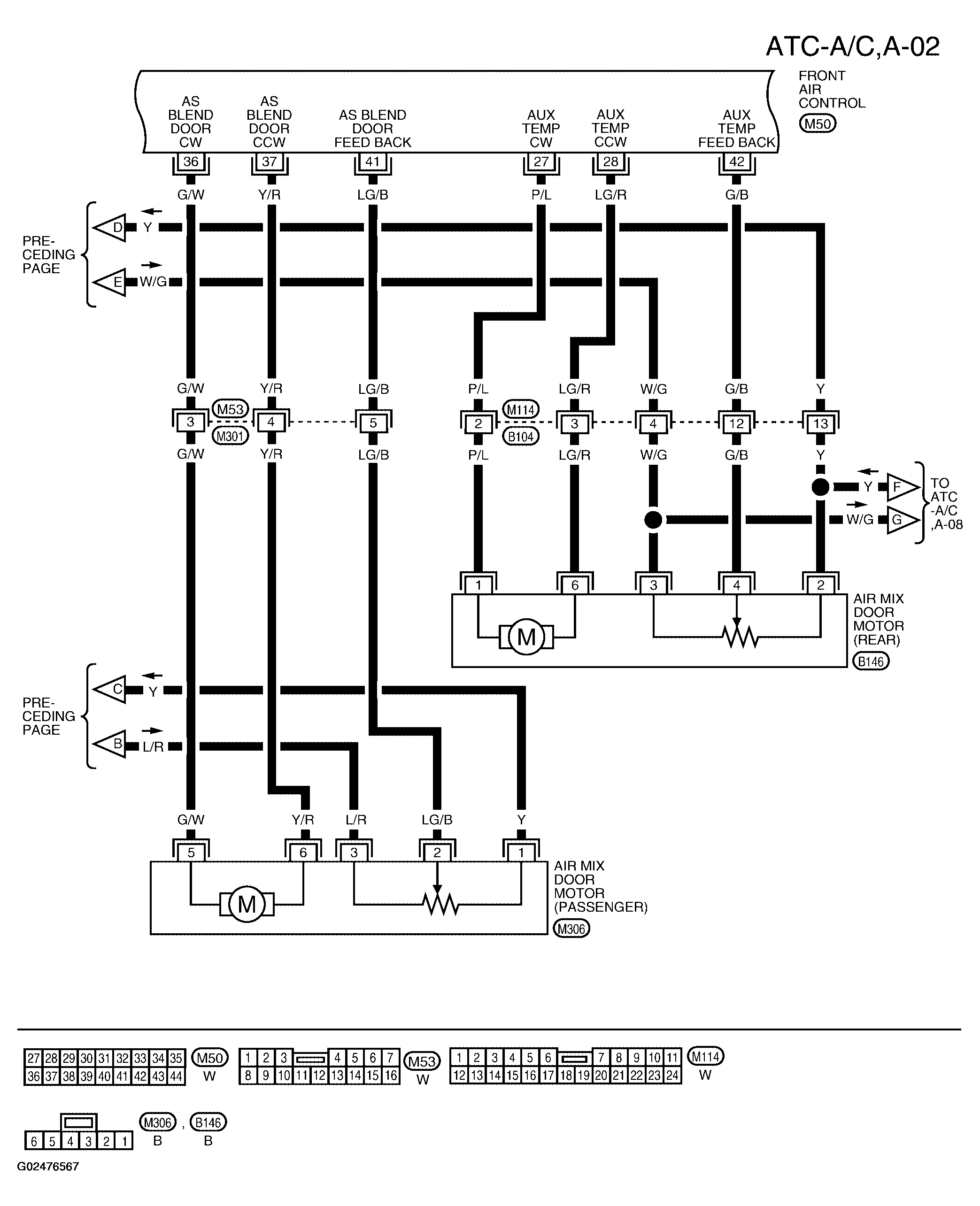

Fig 2: Wiring Diagram - ATC-A/C, A-02

Courtesy of NISSAN MOTOR CO., U.S.A.

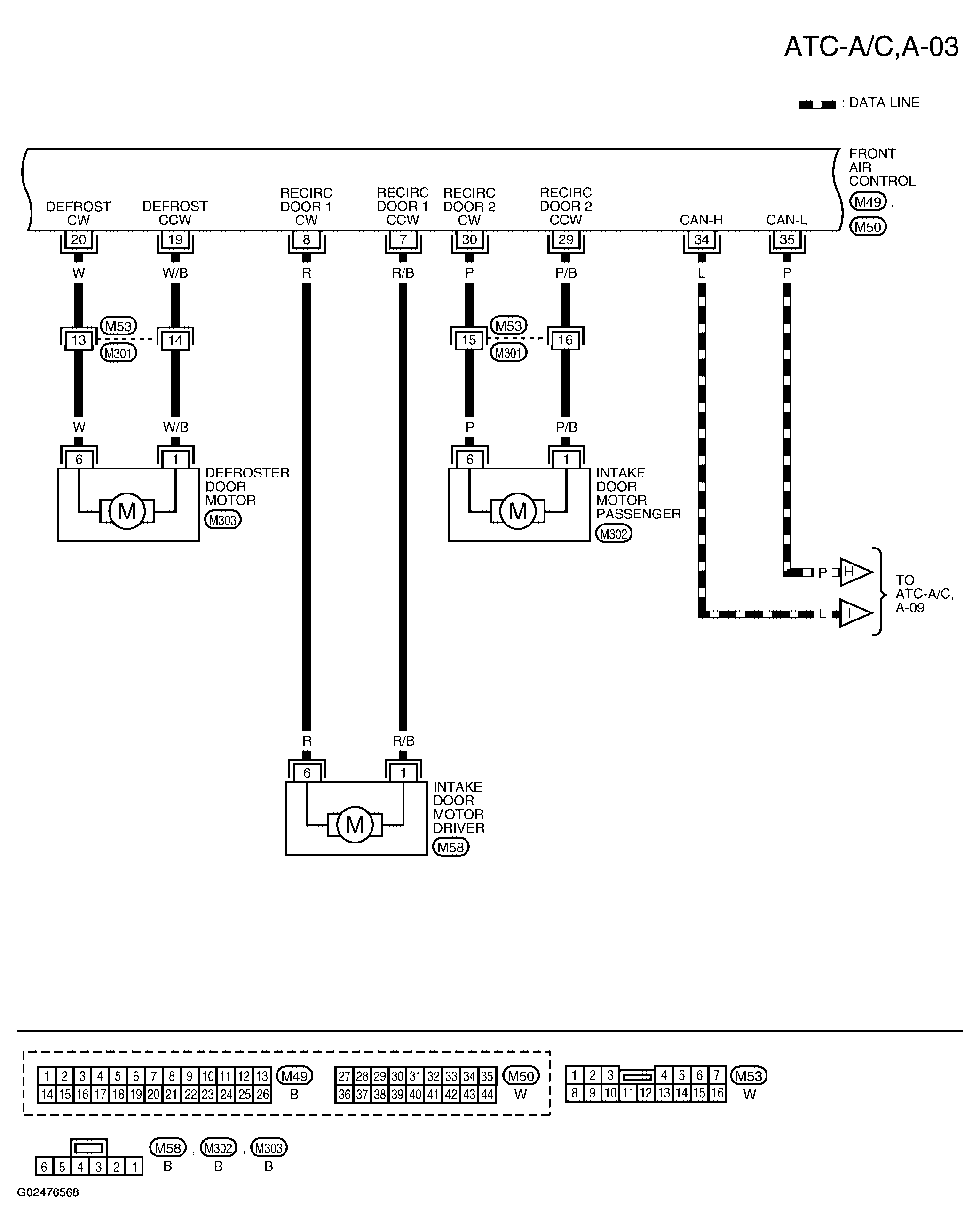

Fig 3: Wiring Diagram - ATC-A/C, A-03

Courtesy of NISSAN MOTOR CO., U.S.A.

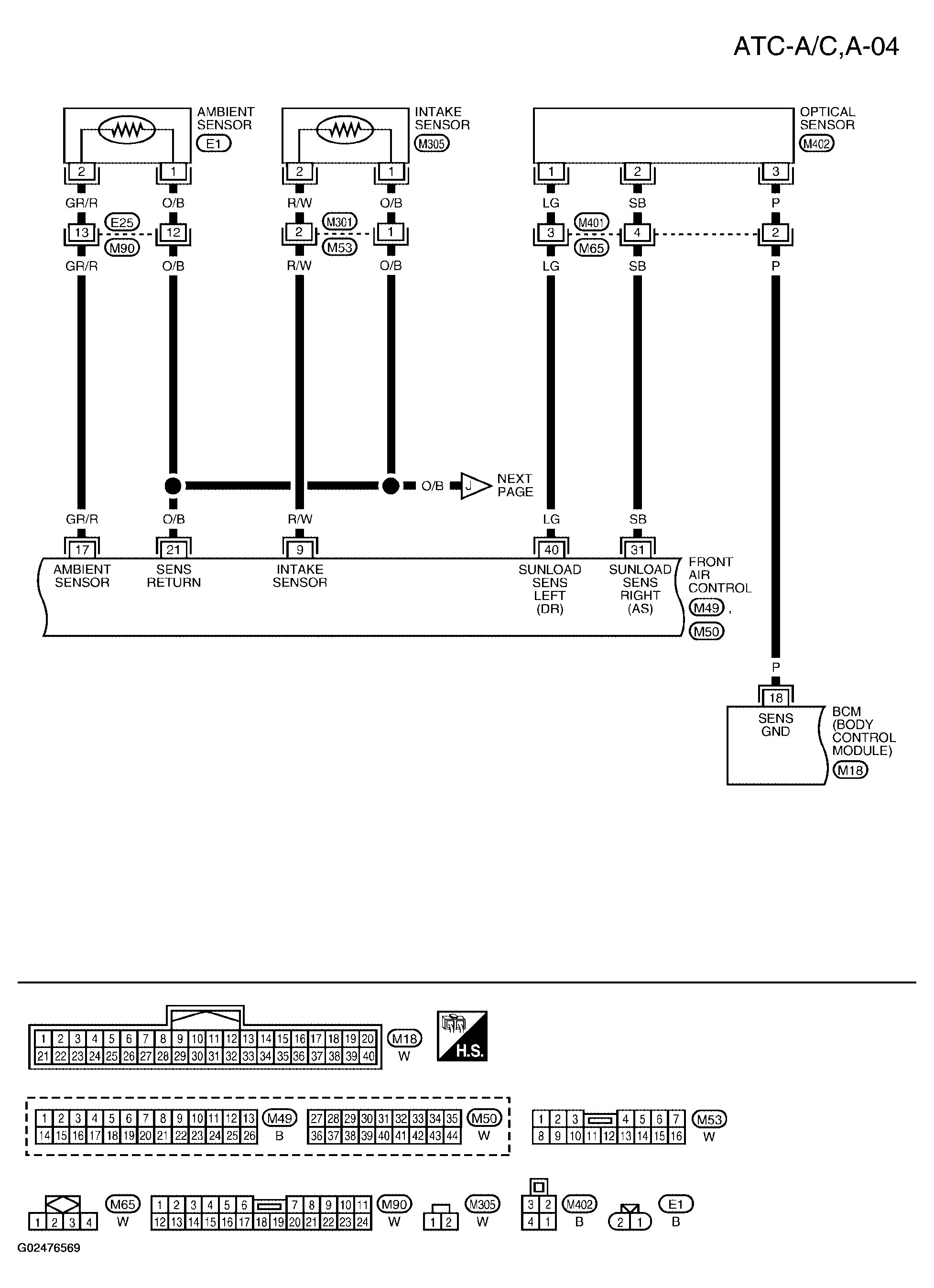

Fig 4: Wiring Diagram - ATC-A/C, A-04

Courtesy of NISSAN MOTOR CO., U.S.A.

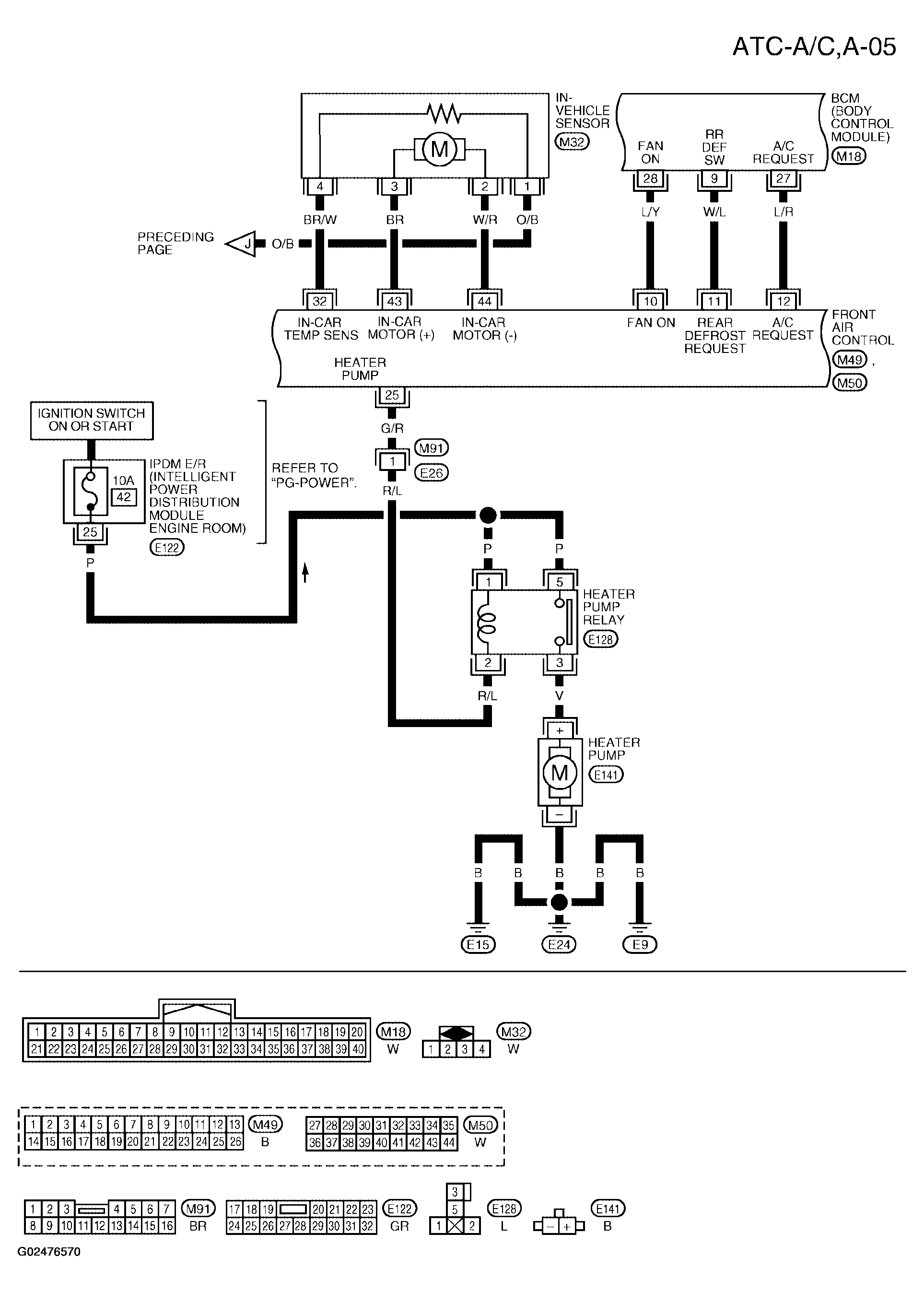

Fig 5: Wiring Diagram - ATC-A/C, A-05

Courtesy of NISSAN MOTOR CO., U.S.A.

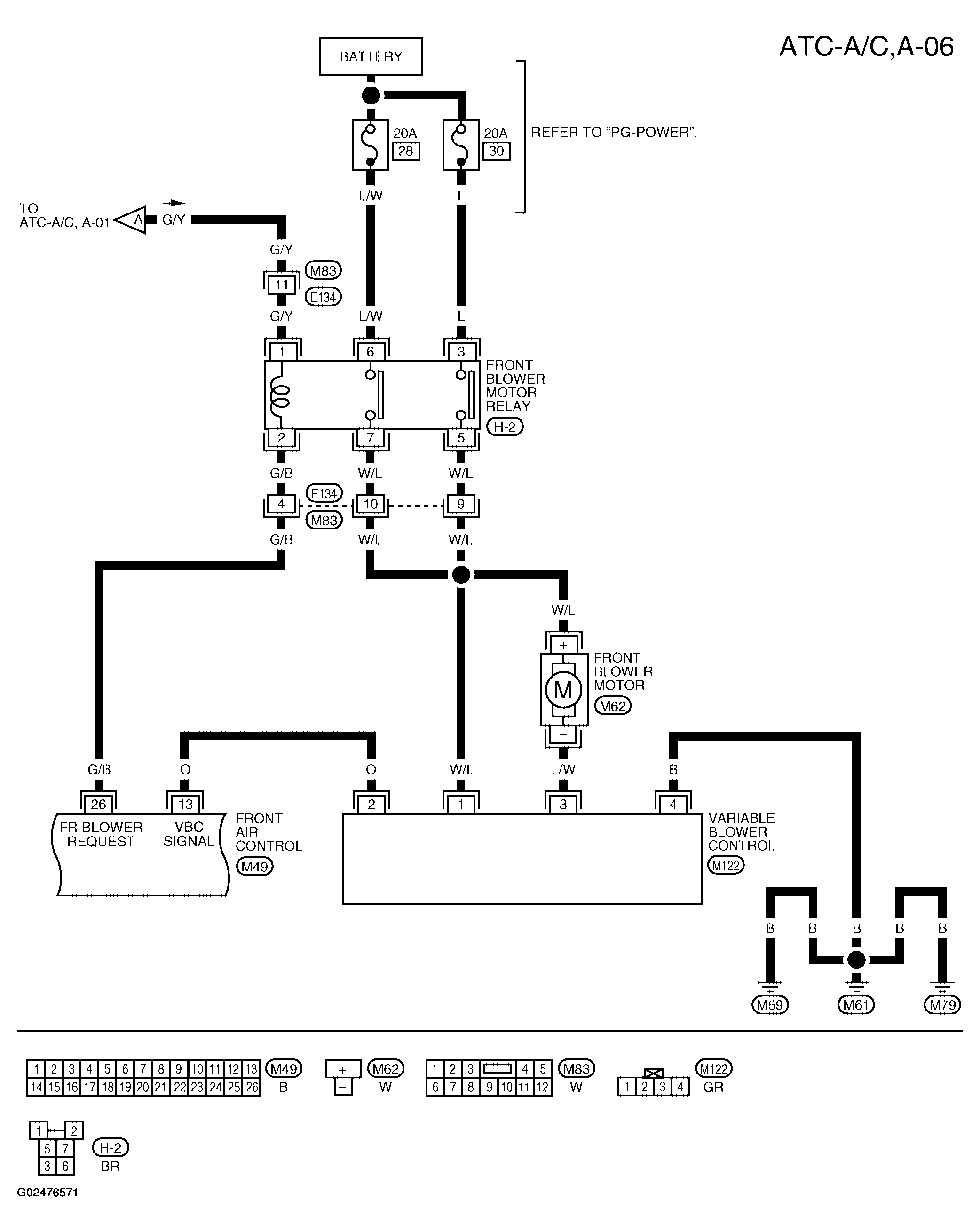

Fig 6: Wiring Diagram - ATC-A/C, A-06

Courtesy of NISSAN MOTOR CO., U.S.A.

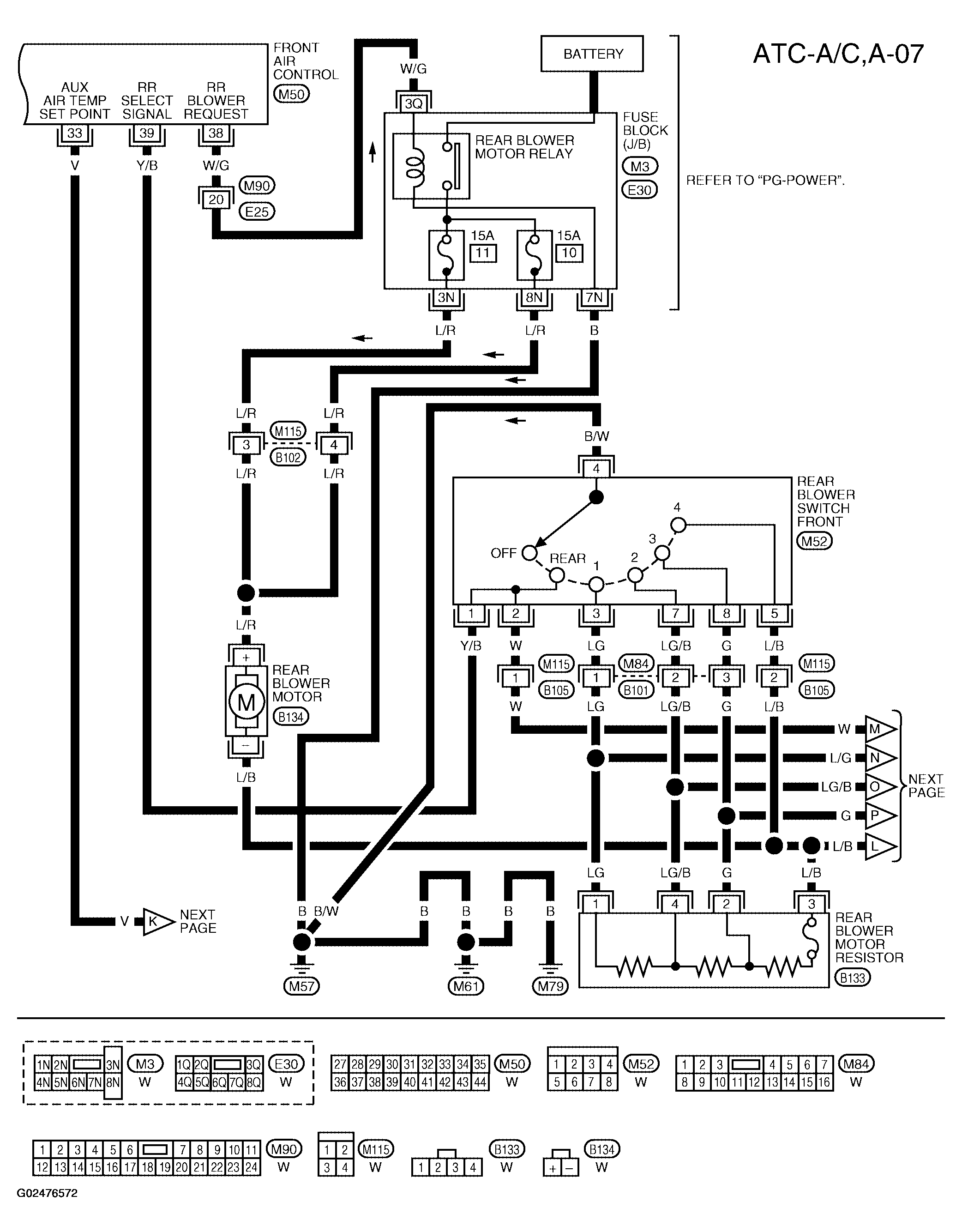

Fig 7: Wiring Diagram - ATC-A/C, A-07

Courtesy of NISSAN MOTOR CO., U.S.A.

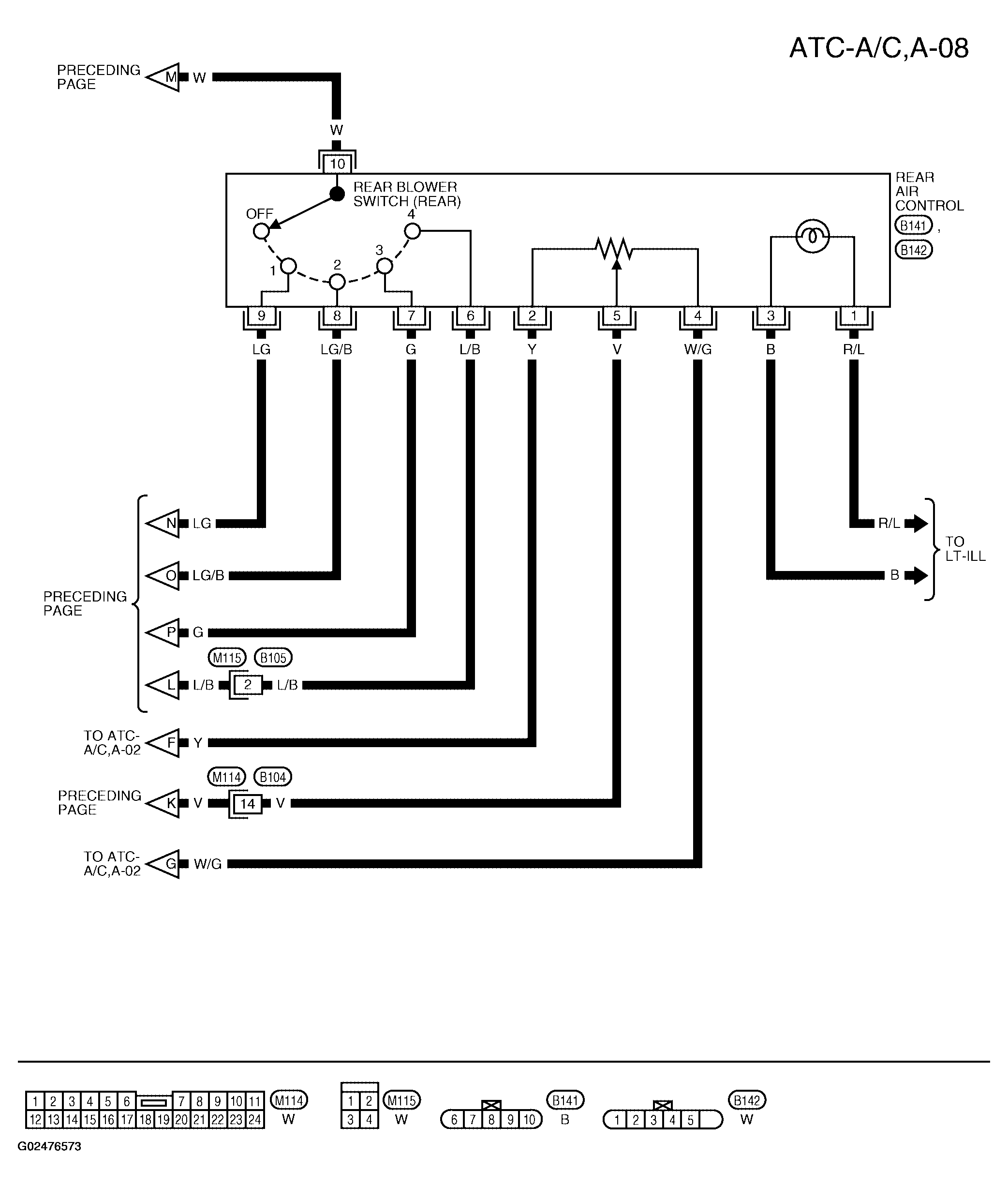

Fig 8: Wiring Diagram - ATC-A/C, A-08

Courtesy of NISSAN MOTOR CO., U.S.A.

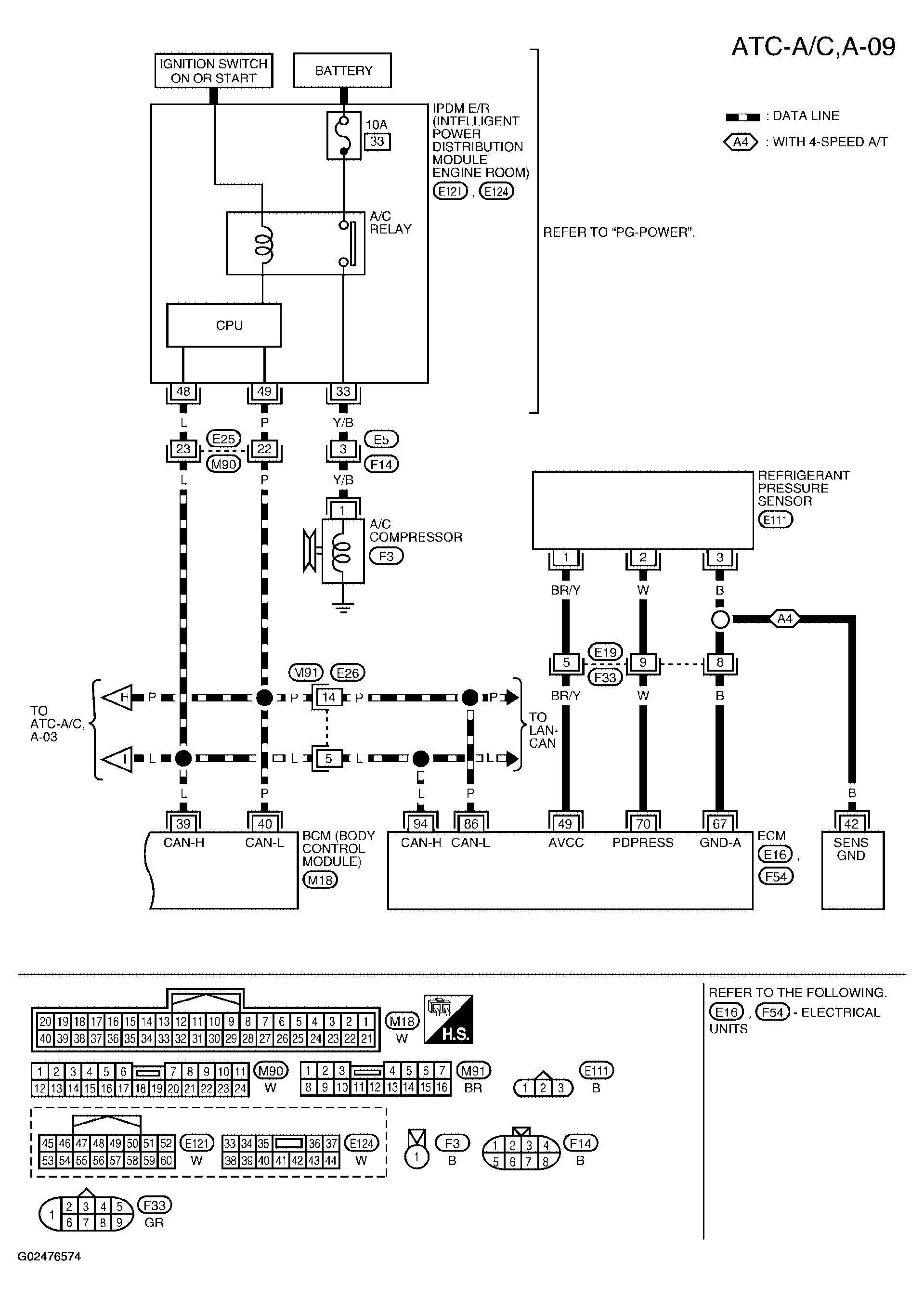

Fig 9: Wiring Diagram - ATC-A/C, A-09

Courtesy of NISSAN MOTOR CO., U.S.A.
