Rear Blower Switch (Front)

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between terminals at each switch position.

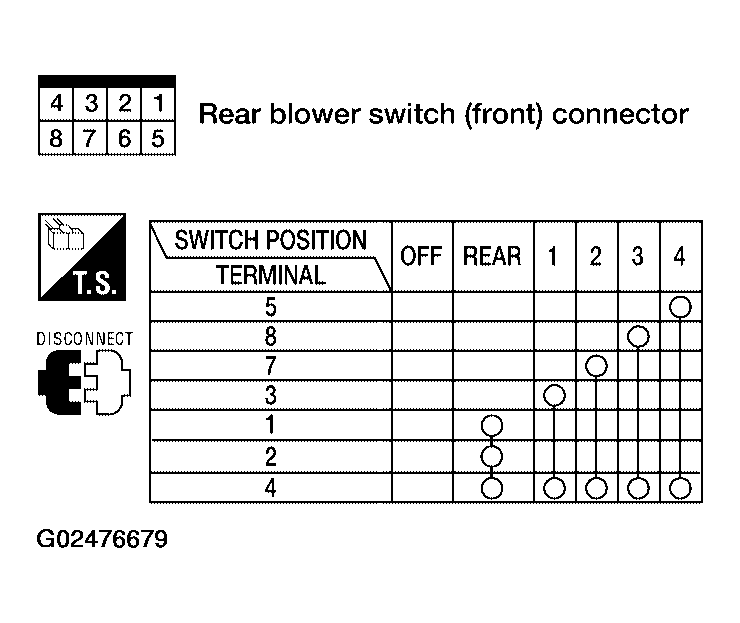

Fig 1: Continuity Reference Chart (Rear Blower Switch - Front)

Courtesy of NISSAN MOTOR CO., U.S.A.
