Rear Blower Motor Resistor

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between terminals. There will be resistance, but there should not be an open or short between any two terminals.

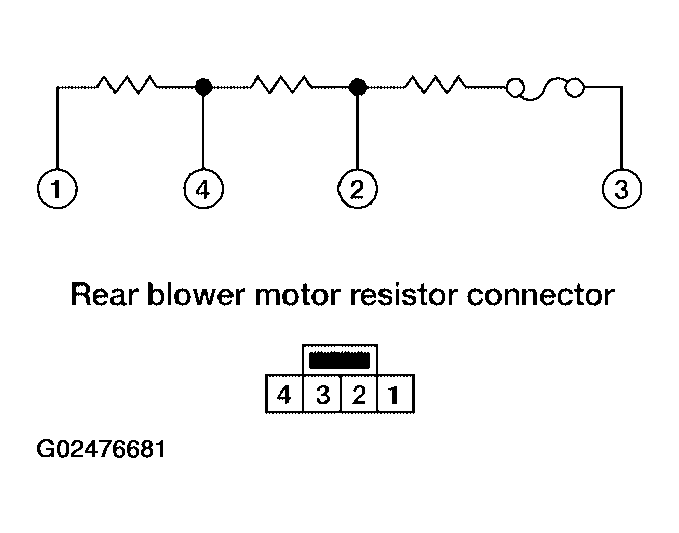

Fig 1: Identifying Rear Blower Motor Resistor Continuity
G02476681Courtesy of NISSAN MOTOR CO., U.S.A.
