Section 1492 (Automatic Air Conditioner)
>>
Trouble Diagnosis
>>
Insufficient Cooling
>>
Performance Test Diagnoses
Performance Test Diagnoses
WARNING:
This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

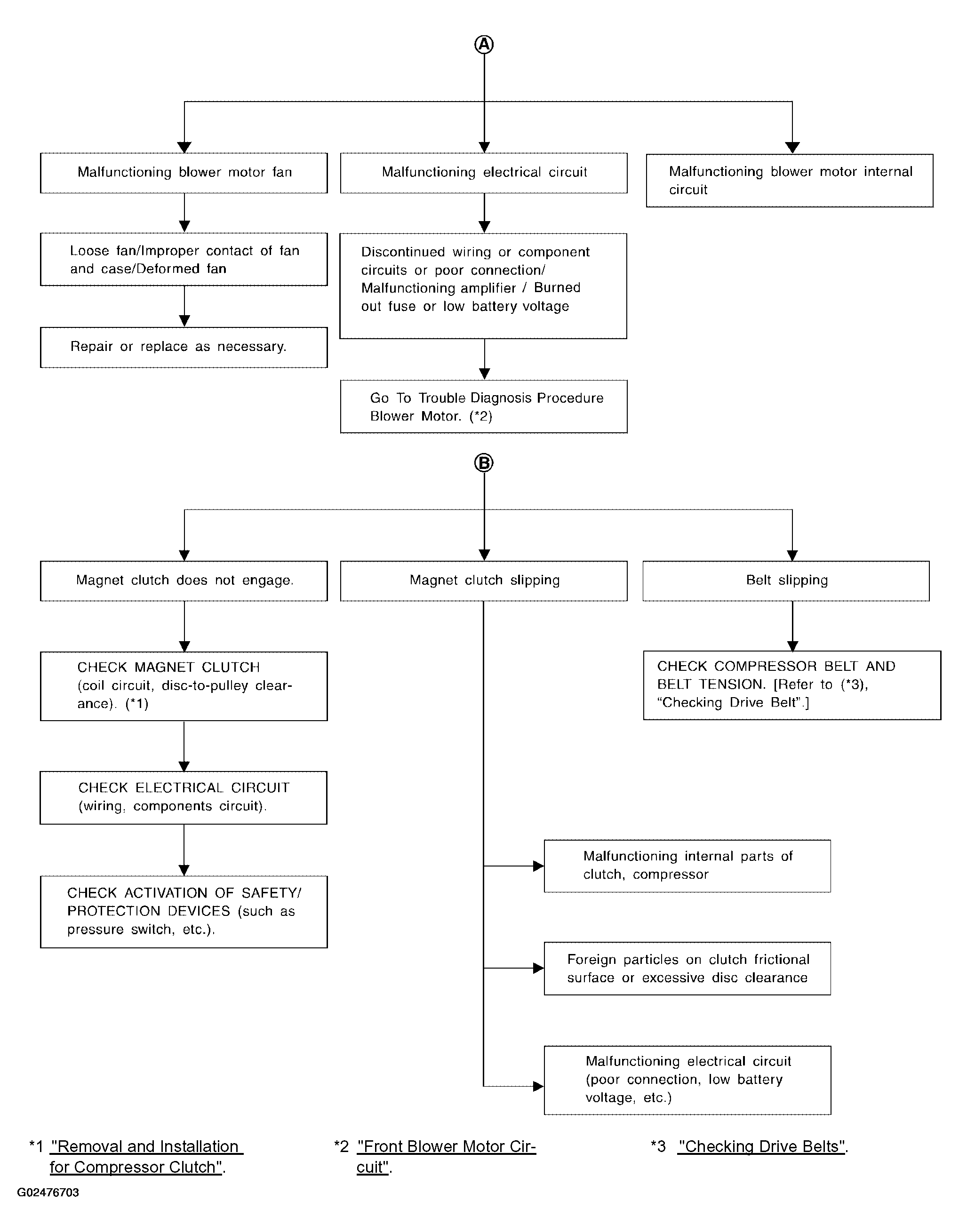

Fig 1: Performance Test Diagnoses Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

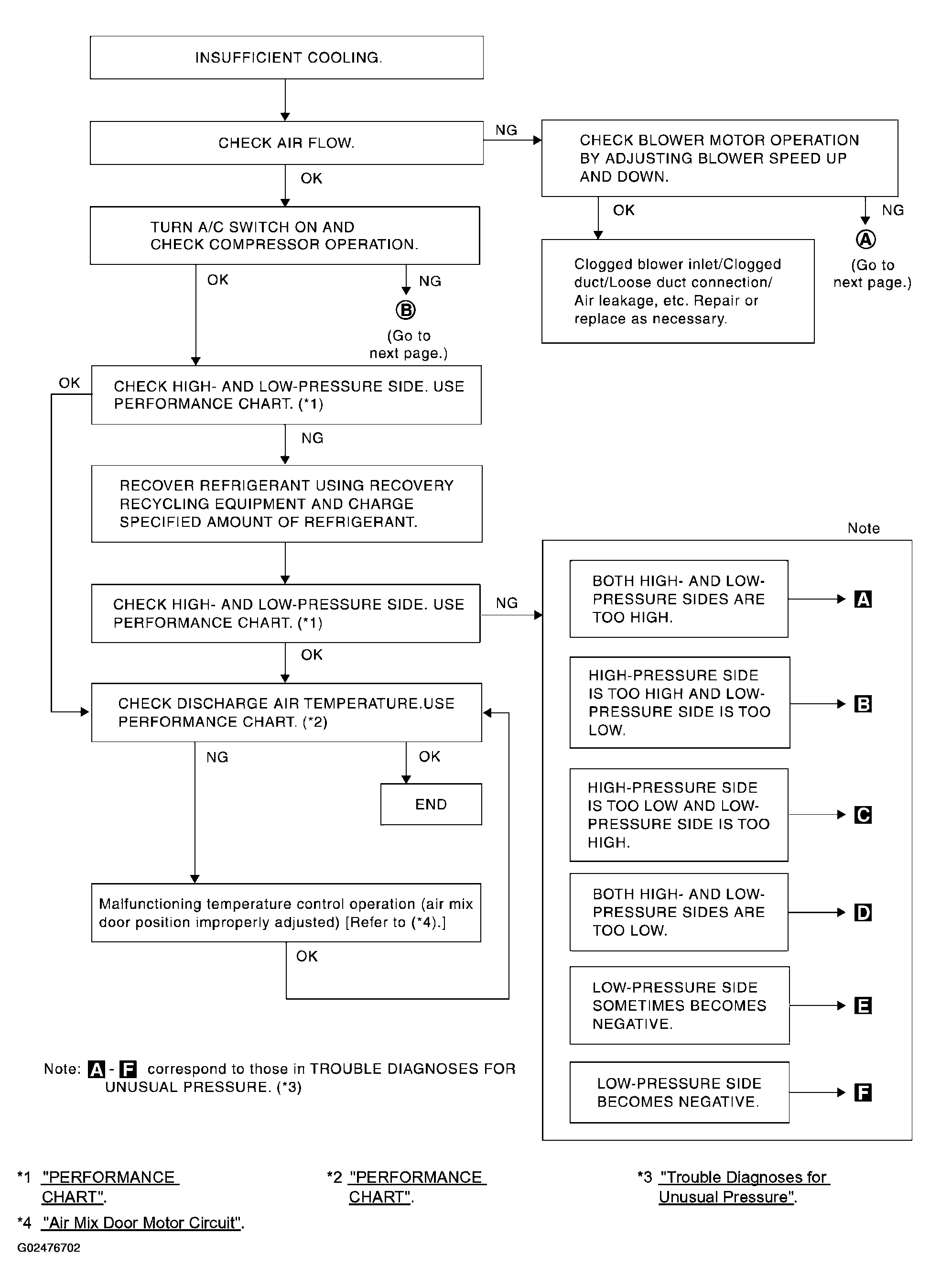

Fig 2: Trouble Diagnoses Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
