In-vehicle Sensor
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

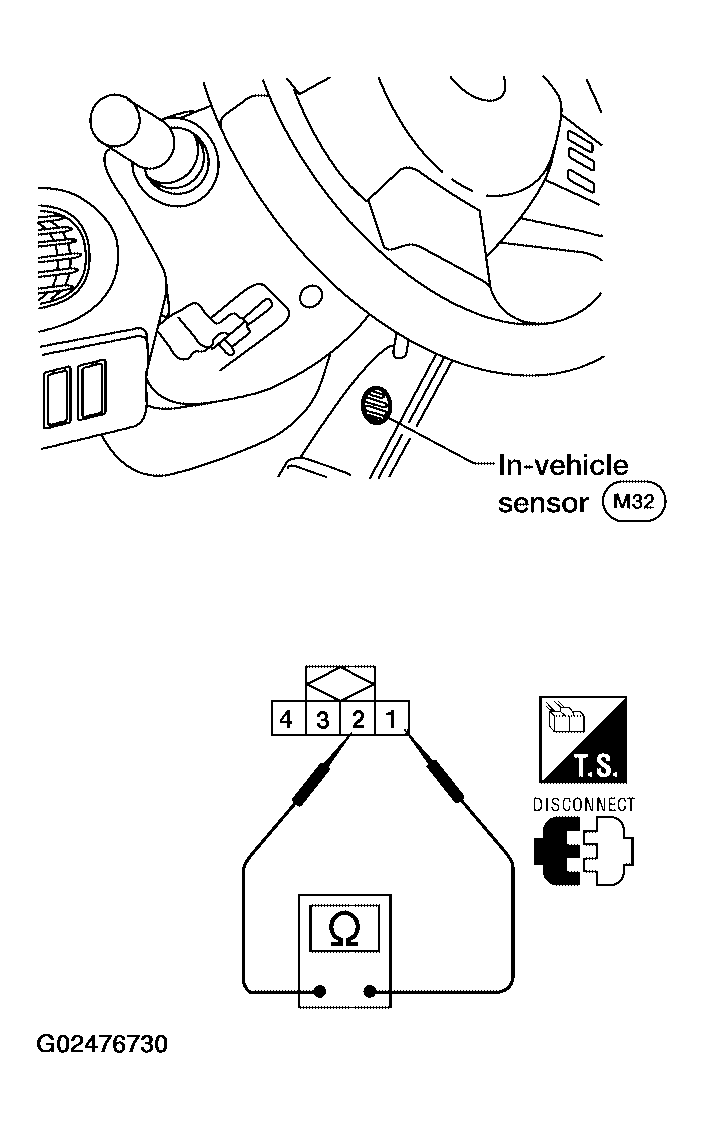

After disconnecting in-vehicle sensor connector, measure resistance between terminals 1 and 2 at sensor component side, using the table below.
TEMPERATURE RESISTANCE REFERENCE TABLE
| Temperature °C (°F) | Resistance kΩ |
|---|---|
| -15 (5) | 21.40 |
| -10 (14) | 16.15 |
| -5 (23) | 12.29 |
| 0 (32) | 9.41 |
| 5 (41) | 7.27 |
| 10 (50) | 5.66 |
| 15 (59) | 4.45 |
| 20 (68) | 3.51 |
| 25 (77) | 2.79 |
| 30 (86) | 2.24 |
| 35 (95) | 1.80 |
| 40 (104) | 1.45 |
| 45 (113) | 1.18 |
If NG, replace in-vehicle sensor.
