Diagnostic Procedure For Blower Motor

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

SYMPTOM: Blower motor operation is malfunctioning under starting fan speed control.

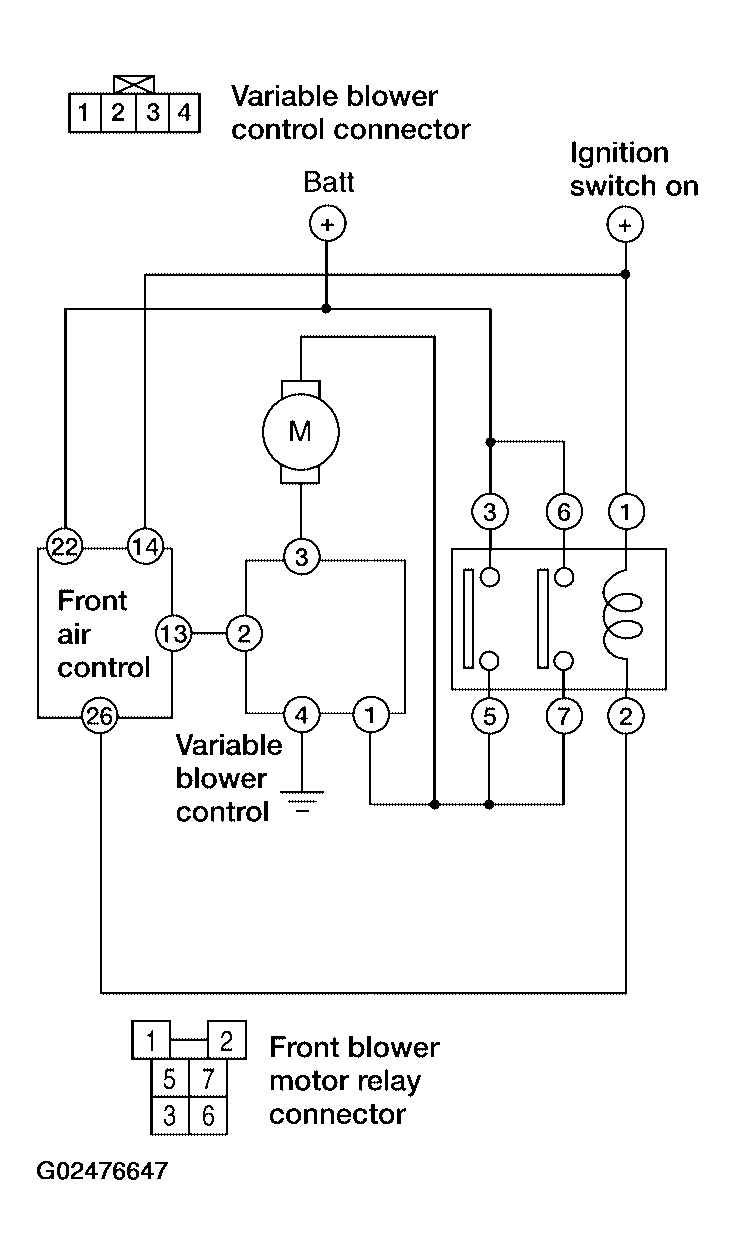

Fig 1: Blower Motor Circuit Diagram
G02476647Courtesy of NISSAN MOTOR CO., U.S.A.
  1. CHECK FUSES

    Check 20A fuses [No. 28 and 30 (Located in the fuse and fusible link box)]. For fuse layout. Refer to "FUSE AND FUSIBLE LINK BOX ".

    Fuses are good.

    OK or NG

    • OK: GO TO 2.
    • NG: GO TO  10.
  2. CHECK FRONT BLOWER MOTOR POWER SUPPLY CIRCUIT
    1. Disconnect front blower motor connector.
    2. Press the mode switch to select any mode except off.
    3. Set fan switch to high.
    4. Check voltage between front blower motor harness connector M62 terminal + (W/L) and ground.
    Fig 2: Checking Voltage Between Front Blower Motor Harness Connector Terminal + & Ground
    G04200546Courtesy of NISSAN MOTOR CO., U.S.A.
    • Battery voltage should exist.

    OK or NG

    • OK: GO TO  12.
    • NG: GO TO 3.
  3. CHECK FRONT BLOWER MOTOR RELAY (SWITCH SIDE) POWER SUPPLY CIRCUIT
    1. Disconnect front blower motor relay connector.
    2. Check voltage between front blower motor relay harness connector H-2 terminals 3 (L) and 6 (L/W) and ground.

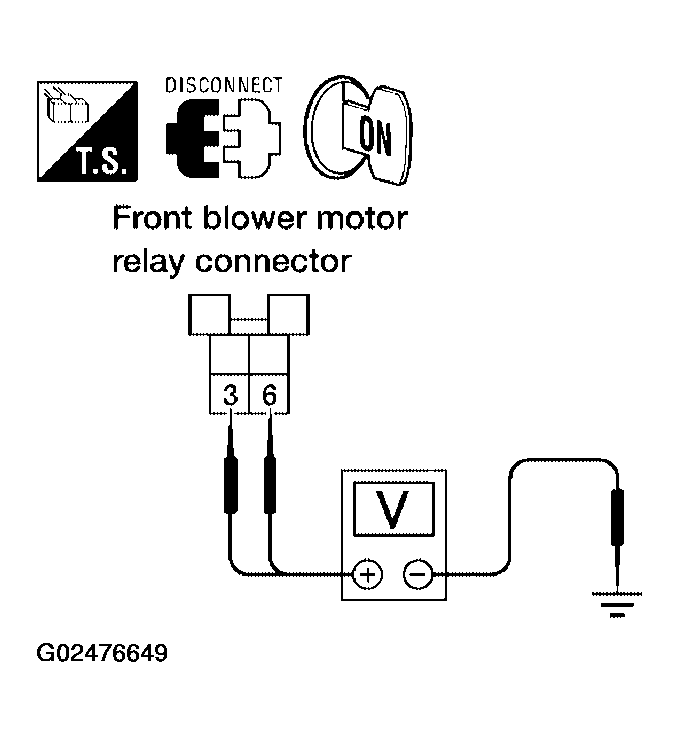

    Fig 3: Checking Voltage Between Front Blower Motor Relay Harness Connector Terminal 3, 6 & Ground
    G02476649Courtesy of NISSAN MOTOR CO., U.S.A.
    • Battery voltage should exist.

    OK or NG

    • OK: GO TO 4.
    • NG: Repair harness or connector.
  4. CHECK FRONT BLOWER MOTOR RELAY

    Refer to "FRONT BLOWER MOTOR RELAY ".

    OK or NG

    • OK: GO TO 5.
    • NG: Replace front blower motor relay.
  5. CHECK FRONT BLOWER MOTOR RELAY (SWITCH SIDE) CIRCUIT FOR OPEN

    Check continuity between front blower motor relay harness connector H-2 terminals 5 (W/L) and 7 (W/L) and front blower motor harness connector M62 terminal + (W/L).

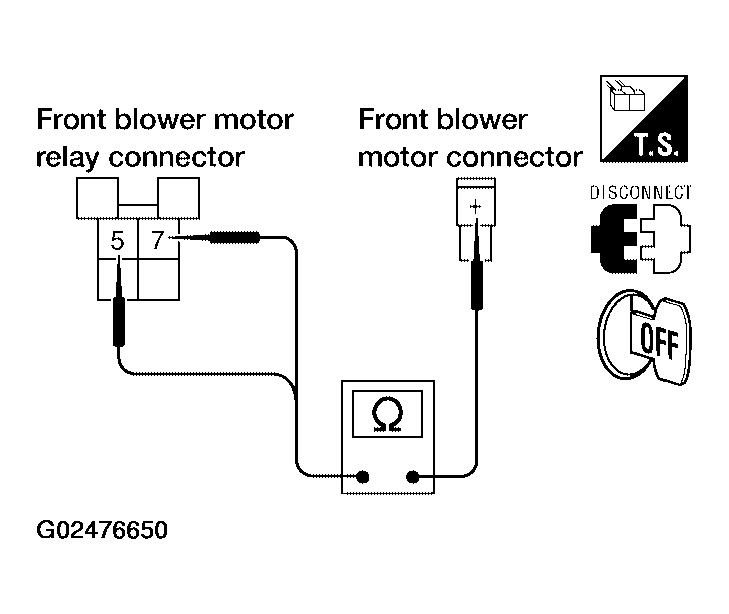

    Fig 4: Checking Continuity Between Front Blower Motor Relay Harness Connector Terminals 5, 7 & Front Blower Motor Harness Connector Terminal +
    G02476650Courtesy of NISSAN MOTOR CO., U.S.A.
    • Continuity should exist.

    OK or NG

    • OK: GO TO 6.
    • NG: Repair harness or connector.
  6. CHECK VARIABLE BLOWER CONTROL POWER SUPPLY CIRCUIT FOR OPEN
    1. Disconnect variable blower control harness connector.
    2. Check continuity between front blower motor relay harness connector H-2 terminals 5 (W/L) and 7 (W/L) and variable blower control harness connector M122 terminal 1 (W/L).

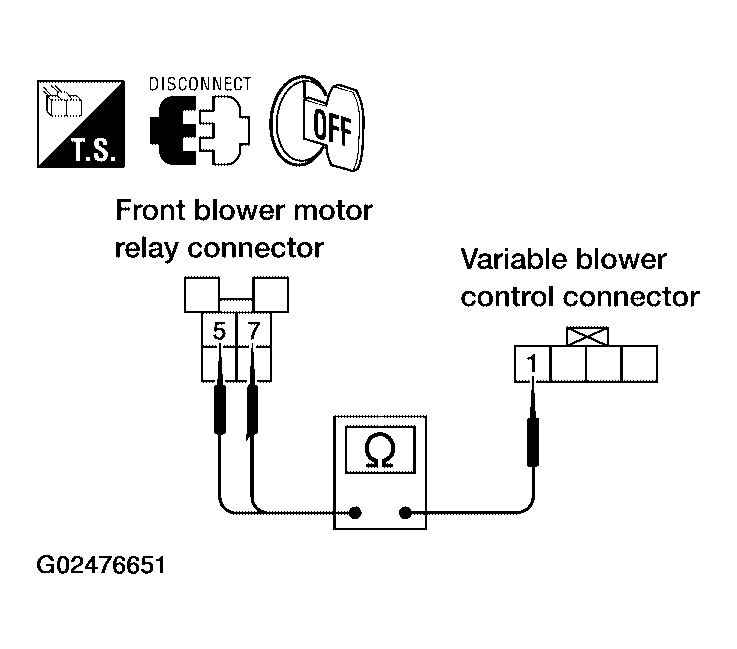

    Fig 5: Checking Continuity Between Front Blower Motor Relay Harness Connector Terminals 5, 7 & Variable Connector Terminal 1
    G02476651Courtesy of NISSAN MOTOR CO., U.S.A.
    • Continuity should exist.

    OK or NG

    • OK: GO TO 7.
    • NG: Repair harness or connector.
  7. CHECK VARIABLE BLOWER CONTROL SIGNAL CIRCUIT
    1. Disconnect front air control connector.
    2. Check continuity between front air control connector M49 terminal 13 (O) and variable blower control connector M122 terminal 2(O).

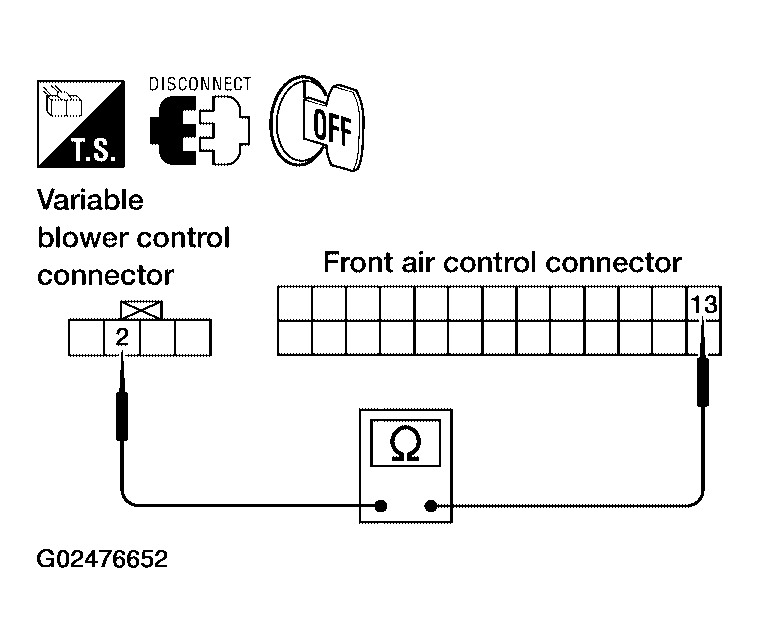

    Fig 6: Checking Continuity Between Front Air Control Connector Terminal 13 & Variable Blower Control Connector Terminal 2
    G02476652Courtesy of NISSAN MOTOR CO., U.S.A.
    • Continuity should exist.

    OK or NG

    • OK: GO TO 8.
    • NG: Repair harness or connector.
  8. CHECK FRONT BLOWER MOTOR RELAY (COIL SIDE) POWER SUPPLY

    Check voltage between front blower motor relay connector H-2 terminal 1 (G/Y) and ground.

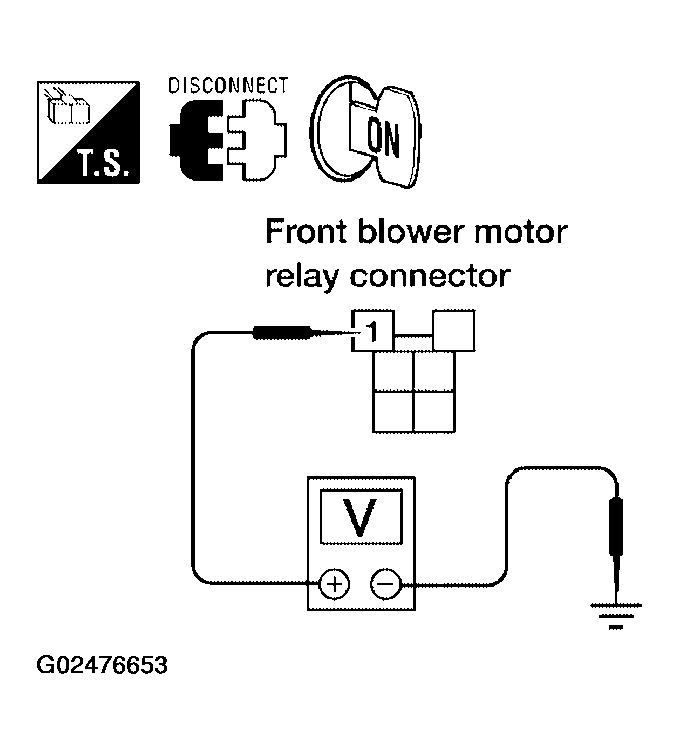

    Fig 7: Checking Voltage Between Front Blower Motor Relay Connector Terminal 1 & Ground
    G02476653Courtesy of NISSAN MOTOR CO., U.S.A.
    • Battery voltage should exist.

    OK or NG

    • OK: GO TO 9.
    • NG: Repair harness or connector.
  9. CHECK FRONT BLOWER MOTOR RELAY (COIL SIDE) GROUND CIRCUIT

    Check continuity between front blower motor relay connector H-2 terminal 2 (G/B) and front air control harness connector M49 terminal 26 (G/B).

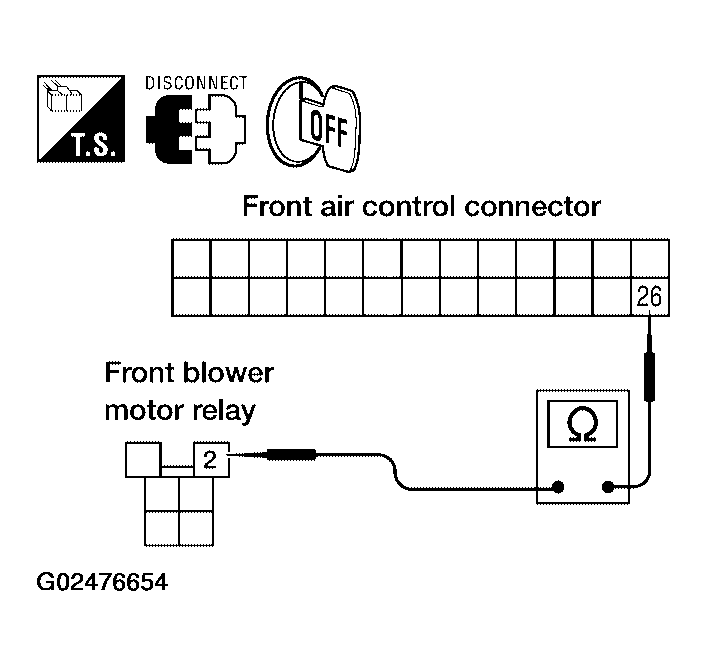

    Fig 8: Checking Continuity Between Front Blower Motor Relay Connector Terminal 2 & Front Air Control Harness Connector Terminal 26
    G02476654Courtesy of NISSAN MOTOR CO., U.S.A.
    • Continuity should exist.

    OK or NG

    • OK: Replace front air control. Refer to "FRONT AIR CONTROL ".
    • NG: Repair harness or connector.
  10. REPLACE FUSES
    1. Replace fuses.
    2. Activate the front blower motor.
    3. Does fuse blow?

    Yes or No

    • Yes: GO TO 11.
    • No: Inspection End.
  11. CHECK FRONT BLOWER MOTOR POWER SUPPLY CIRCUIT FOR SHORT
    1. Disconnect front blower motor harness connector.
    2. Check continuity between variable blower control harness connector M122 terminal 1 (W/L) and ground.

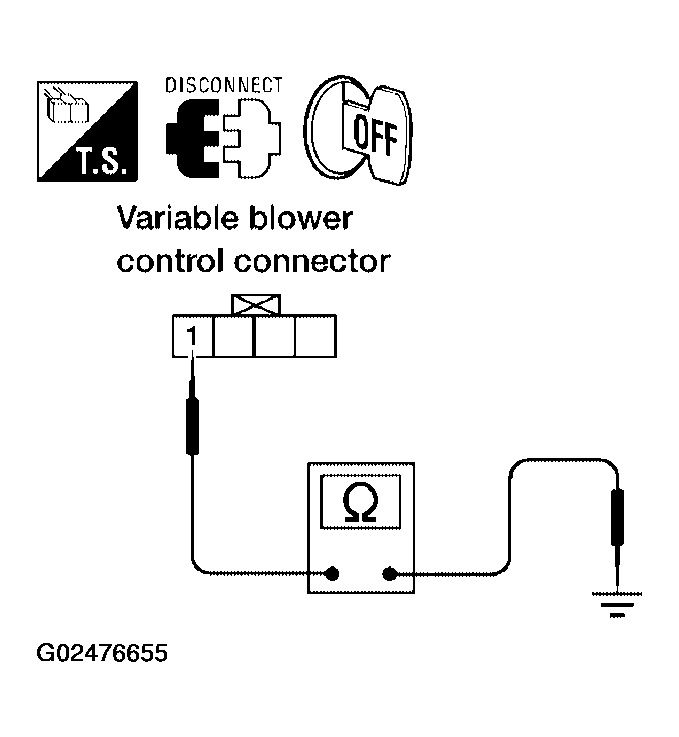

    Fig 9: Checking Continuity Between Variable Blower Control Harness Connector Terminal 1 & Ground
    G02476655Courtesy of NISSAN MOTOR CO., U.S.A.

    Continuity should not exist.

    OK or NG

    • OK: GO TO 12.
    • NG: Repair harness or connector.
  12. CHECK VARIABLE BLOWER CONTROL SIGNAL CIRCUIT
    1. Disconnect front air control connector
    2. Check continuity between front air control connector M49 terminal 13 (O) and variable blower control connector M122 terminal 2 (O)
    Fig 10: Checking Continuity Between Front Air Control Connector Terminal 13 & Variable Blower Control Connector Terminal 2
    G02476656Courtesy of NISSAN MOTOR CO., U.S.A.
    • Continuity should exist.

    OK or NG

    • OK: Check blower motor, if OK replace variable blower control. Refer to "FRONT BLOWER MOTOR RELAY ".
    • NG: Repair harness or connector.
