Section 1492 (Automatic Air Conditioner)
>>
Trouble Diagnosis
>>
Component Parts And Harness Connector Location
>>
Rear Passenger Compartment
Rear Passenger Compartment
WARNING:
This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

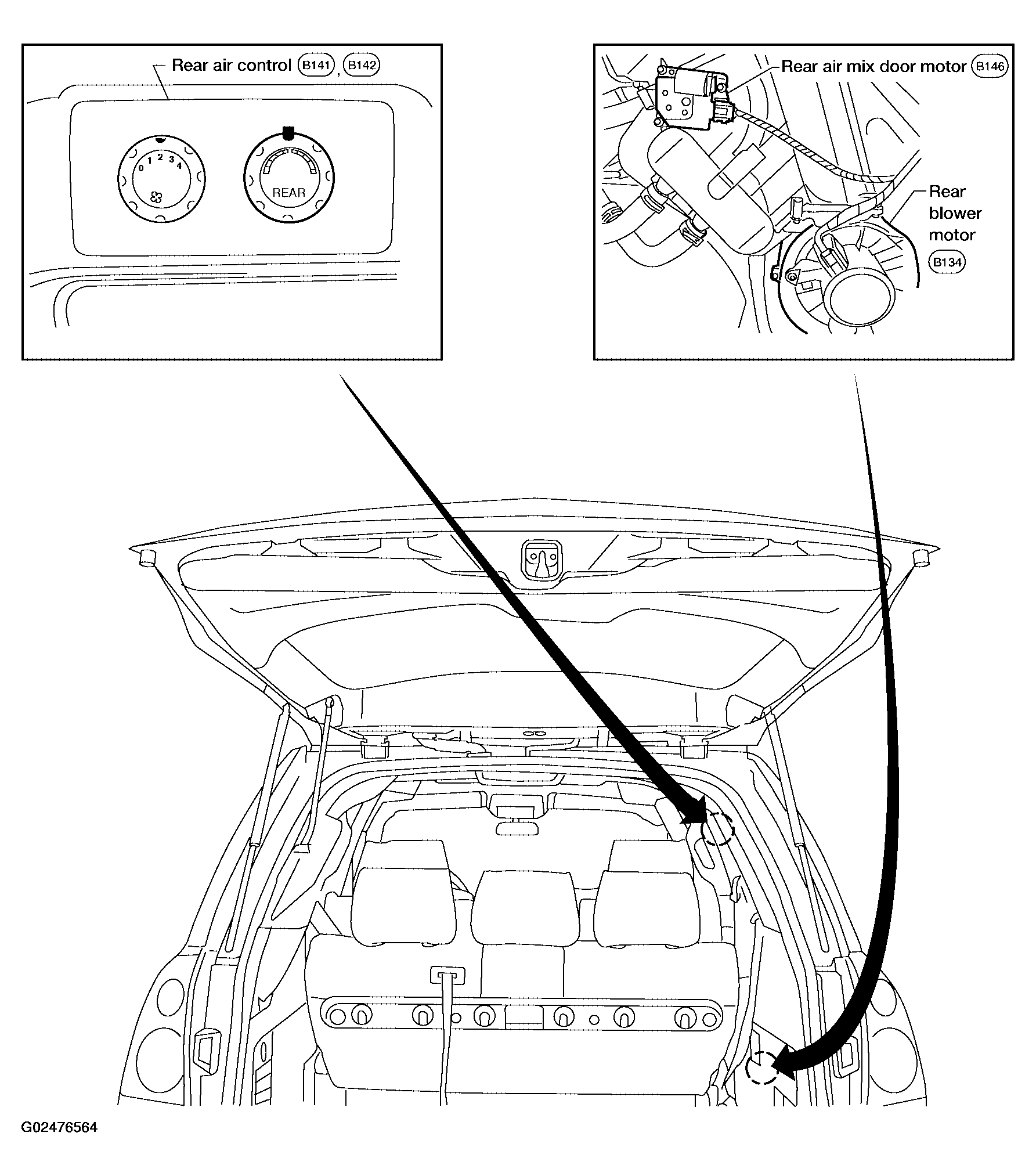

Fig 1: Identifying Component Parts & Harness Connector Location (Rear Passenger Compartment)
Courtesy of NISSAN MOTOR CO., U.S.A.
