Ambient Sensor

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

The ambient sensor is attached on the radiator core support (left side). It detects ambient temperature and converts it into a resistance value which is then input into the front air control.

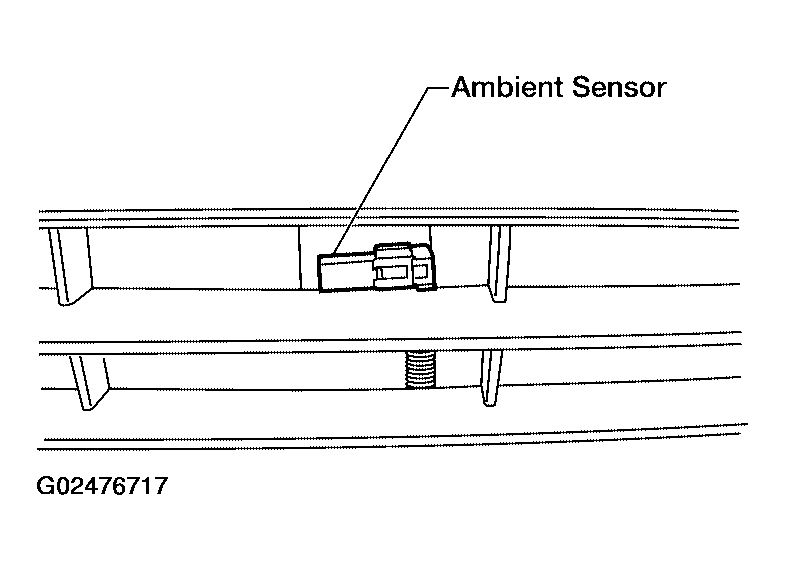

Fig 1: Identifying Ambient Sensor
G02476717Courtesy of NISSAN MOTOR CO., U.S.A.
