Removal And Installation For Front Expansion Valve: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Discharge the refrigerant. Refer to "HFC-134A (R-134A) SERVICE PROCEDURE ".
  2. Remove the front heater and cooling unit assembly. Refer to "FRONT HEATER AND COOLING UNIT ASSEMBLY".
  3. Remove the cooler grommet.

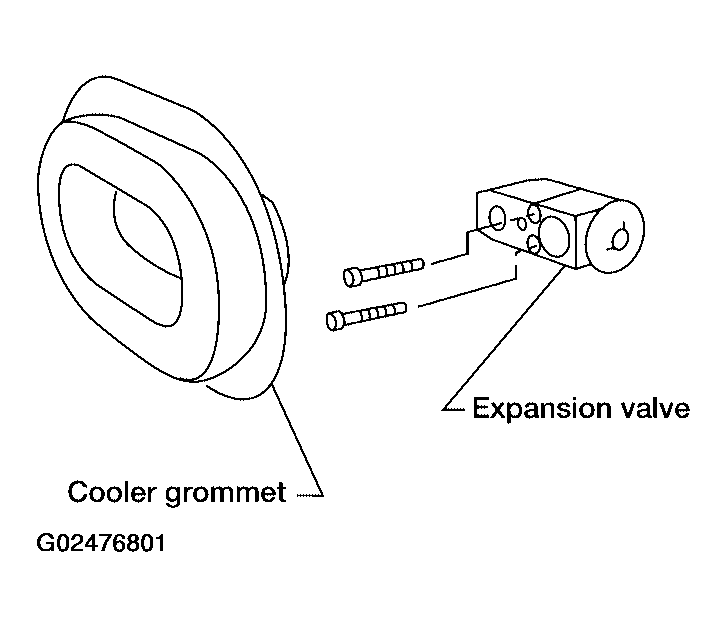

    Fig 1: Identifying Cooler Grommet & Expansion Valve
    G02476801Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove the expansion valve.
