Removal And Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cowl top. Refer to "COWL TOP ".
  2. Partially drain the engine cooling system. Refer to "DRAINING ENGINE COOLANT ".
  3. Remove the two heater pump clips securing the heater pump to the cowl top extension.

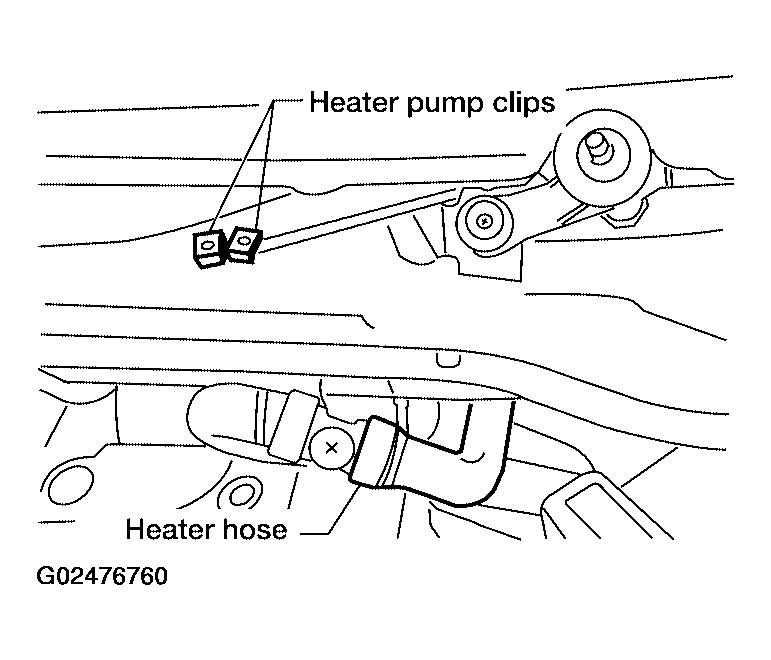

    Fig 1: Removing Heater Pump Clips
    G02476760Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Disconnect the heater pump electrical connector and the two heater hoses, then remove the heater pump.
    CAUTION: Do not disassemble the heater pump, replace the heater pump as an assembly.
