Rear Heater And Cooling Unit Assembly: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Discharge the refrigerant from the A/C system. Refer to "DISCHARGING REFRIGERANT ".
Drain the coolant from the engine cooling system. Refer to "DRAINING ENGINE COOLANT ".
Disconnect the rear heater core hoses from the rear heater core.
Disconnect the rear A/C pipes from the rear expansion valve.
Remove the rear RH interior trim panel. Refer to REMOVAL AND INSTALLATION - RH INTERIOR TRIM PANEL ".
Disconnect the following electrical connectors:
- Rear blower motor
- Rear blower motor resistor
- Rear air mix door motor

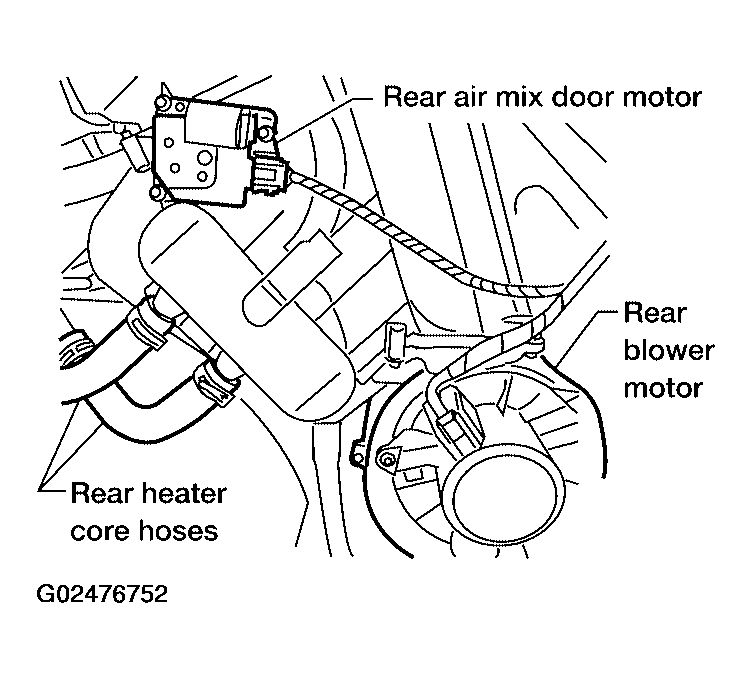

  Fig 1: Identifying Rear Air Mix Door Motor
  Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect the ducts from the rear heater and cooling unit assembly.
Remove the rear heater and cooling unit assembly.
