Removal And Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ambient sensor connector.
    NOTE: The ambient sensor is located behind the front bumper opening, in front of the condenser.
  2. Release the ambient sensor clip and then remove the ambient sensor.

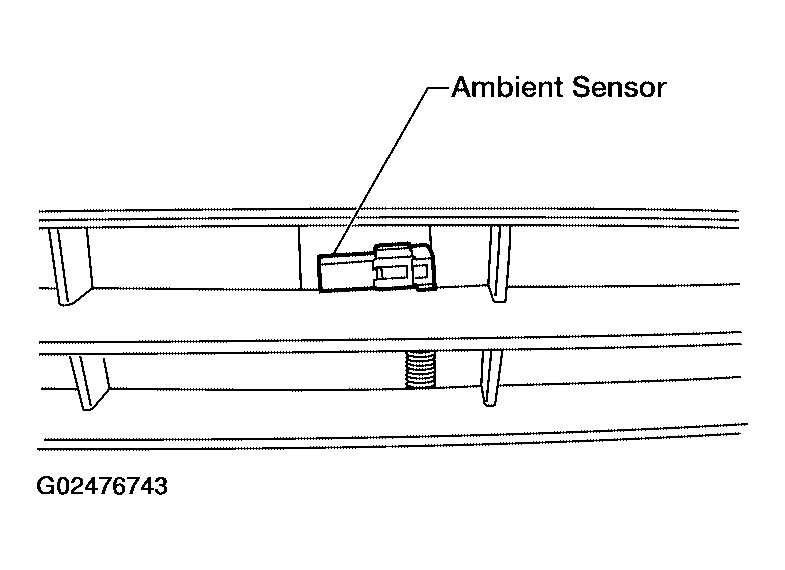

    Fig 1: Identifying Ambient Sensor
    G02476743Courtesy of NISSAN MOTOR CO., U.S.A.
