Tightening Torque Table

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

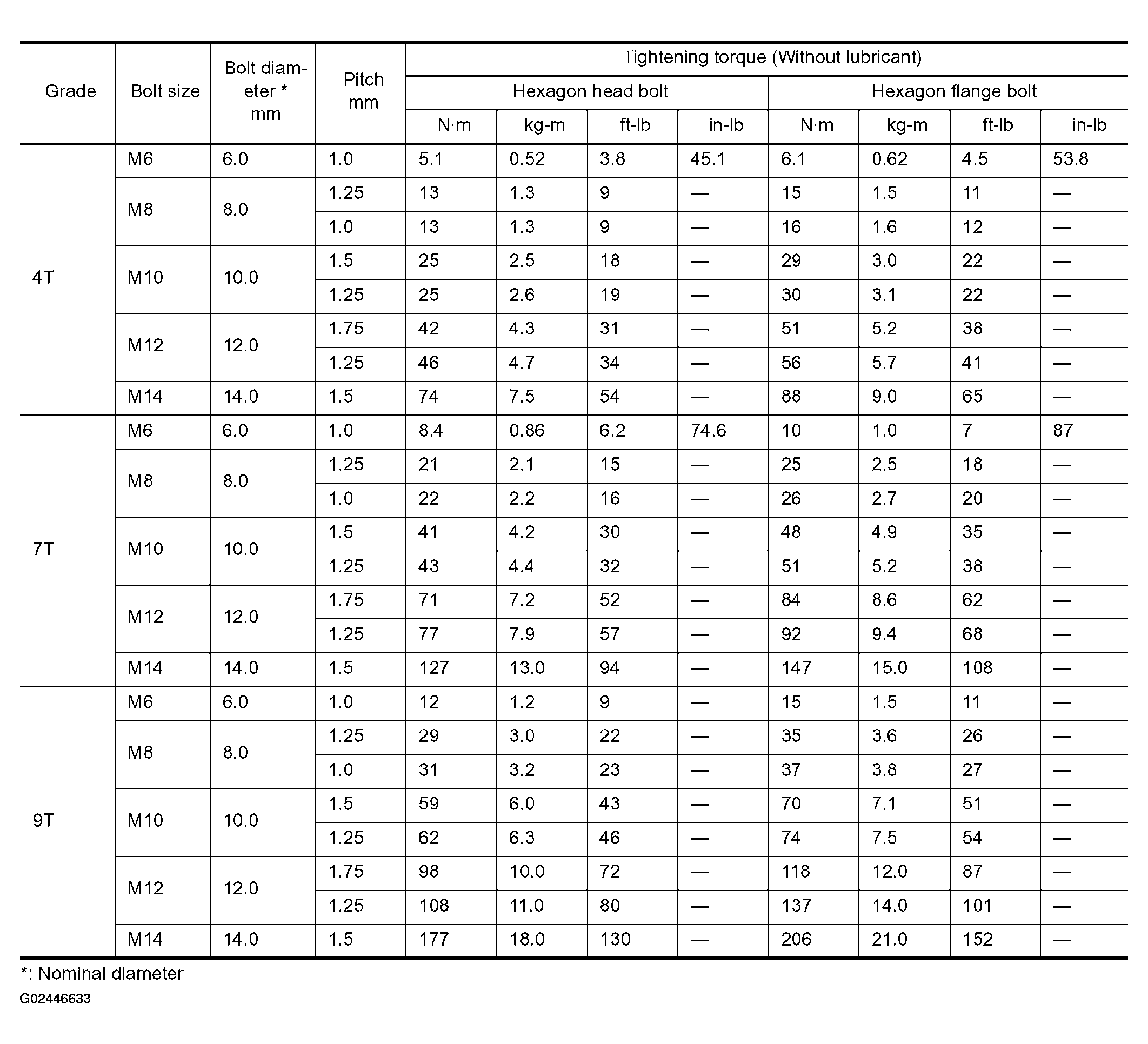

Fig 1: Tightening Torque Table
G02446633Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Special parts are excluded.
  2. This standard is applicable to bolts having the following marks embossed on the bolt head.

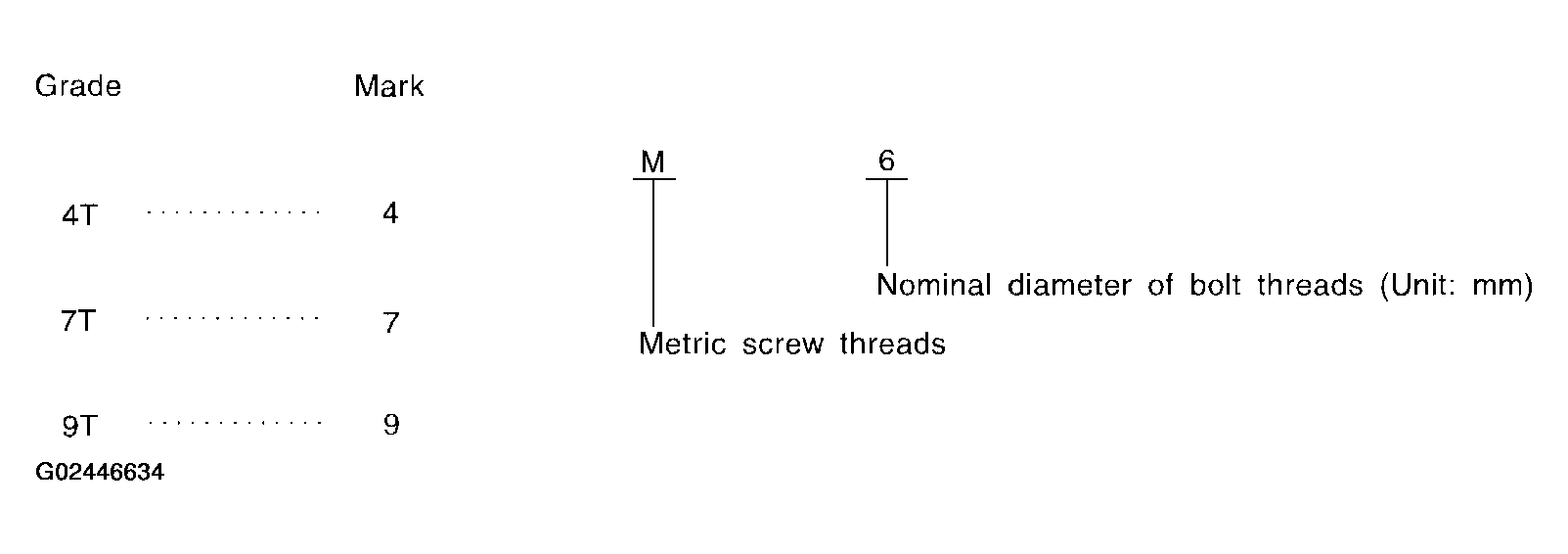

    Fig 2: Bolt Specification
    G02446634Courtesy of NISSAN MOTOR CO., U.S.A.
