How To Follow Test Groups In Trouble Diagnoses
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
- Work and diagnostic procedure
Start to diagnose a problem using procedures indicated in enclosed test groups.
- Questions and required results
Questions and required results are indicated in bold type in test group.
The meaning of are as follows:
- a. Battery voltage -> 11 - 14V or approximately 12V
- b. Voltage: Approximately 0V -> Less than 1V
- Symbol used in illustration
Symbols included in illustrations are for diagnosing a problem. Familiarize yourself with each symbol. Refer to "CONNECTOR SYMBOLS " and "KEY TO SYMBOLS SIGNIFYING MEASUREMENTS OR PROCEDURES ".
- Action items

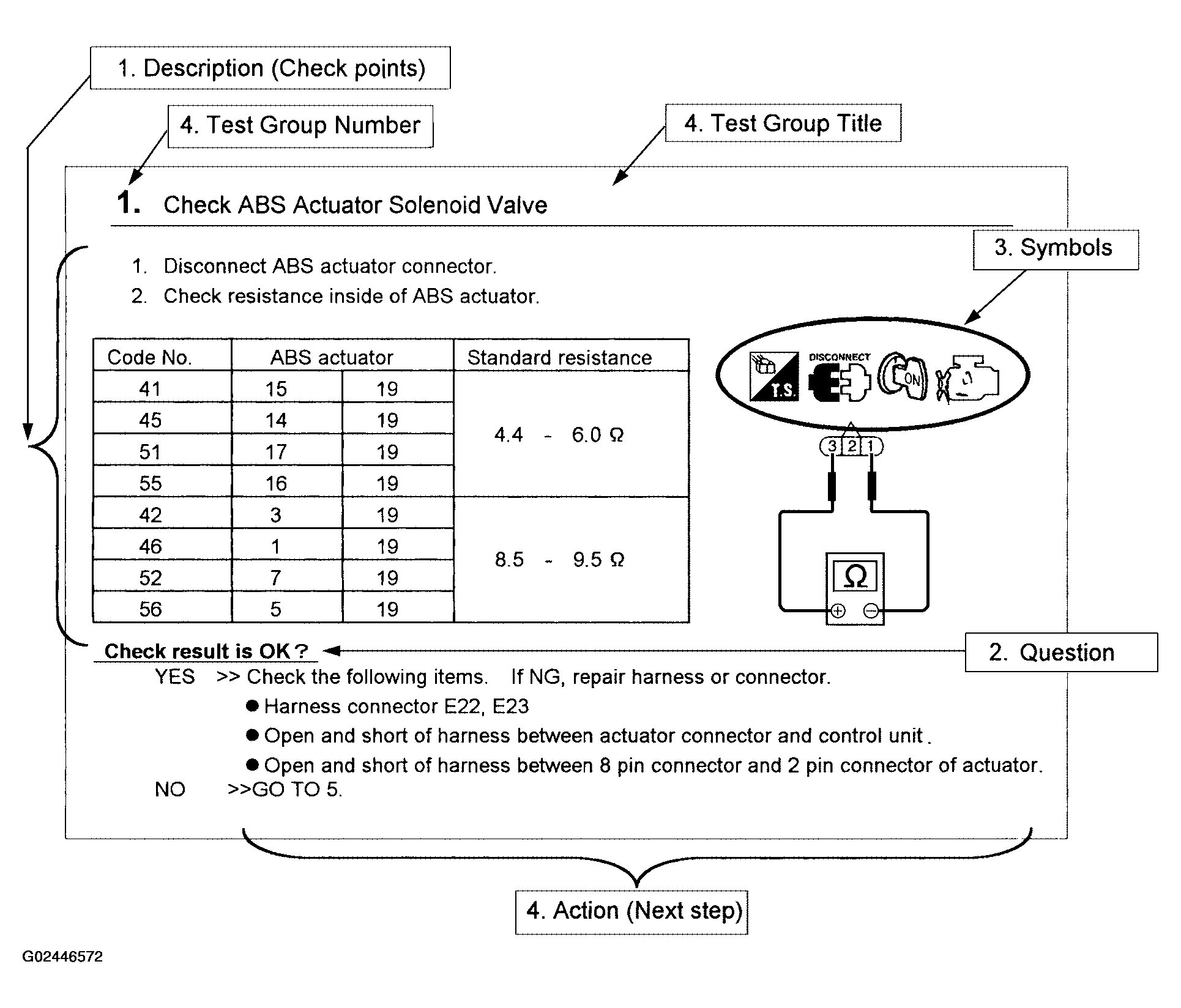

Next action for each test group is indicated based on result of each question. Test group number is shown in the left upper portion of each test group.
