QG18DE Models

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

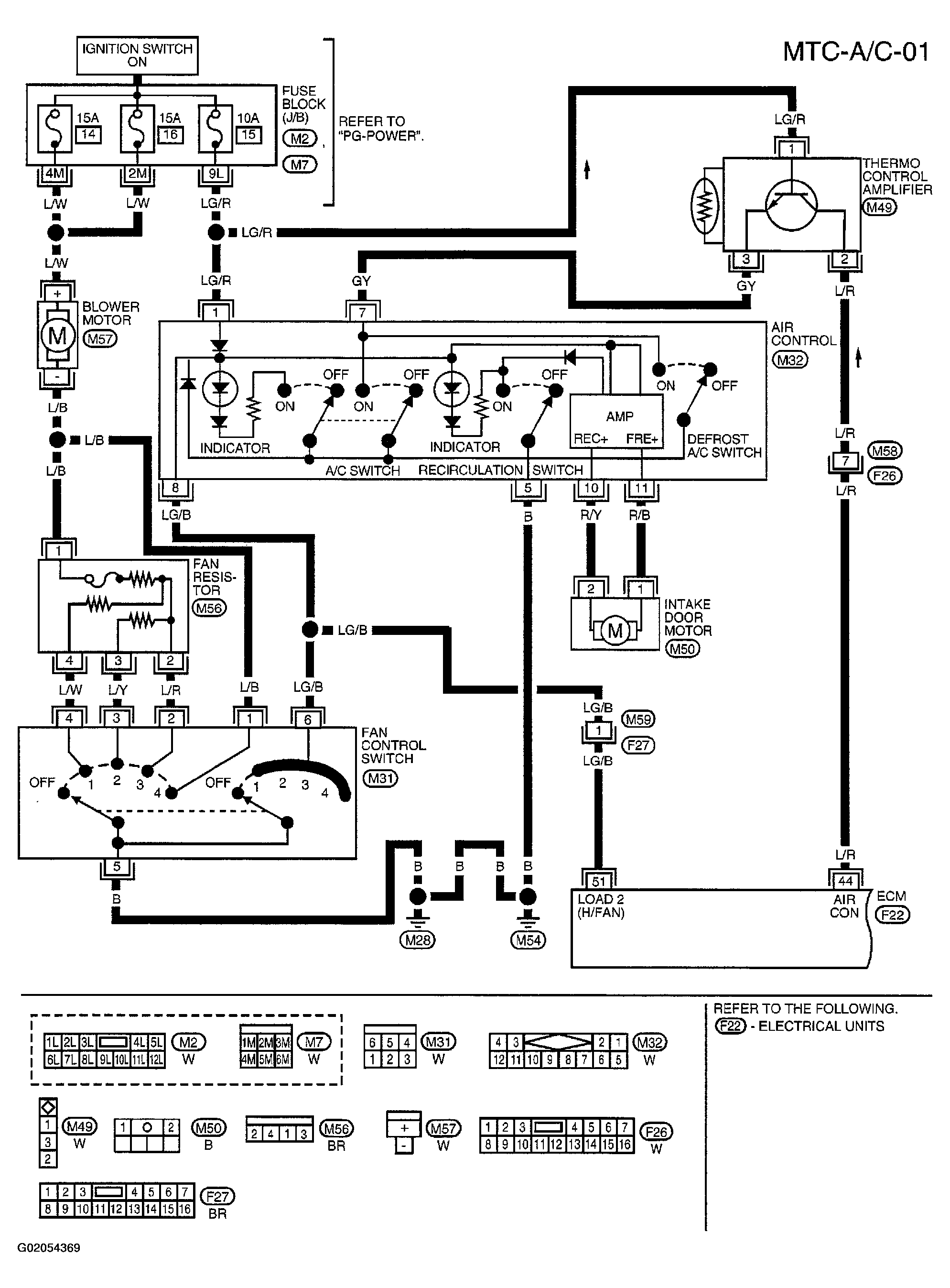

Fig 1: A/C, M - Wiring Diagram (QG18DE Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

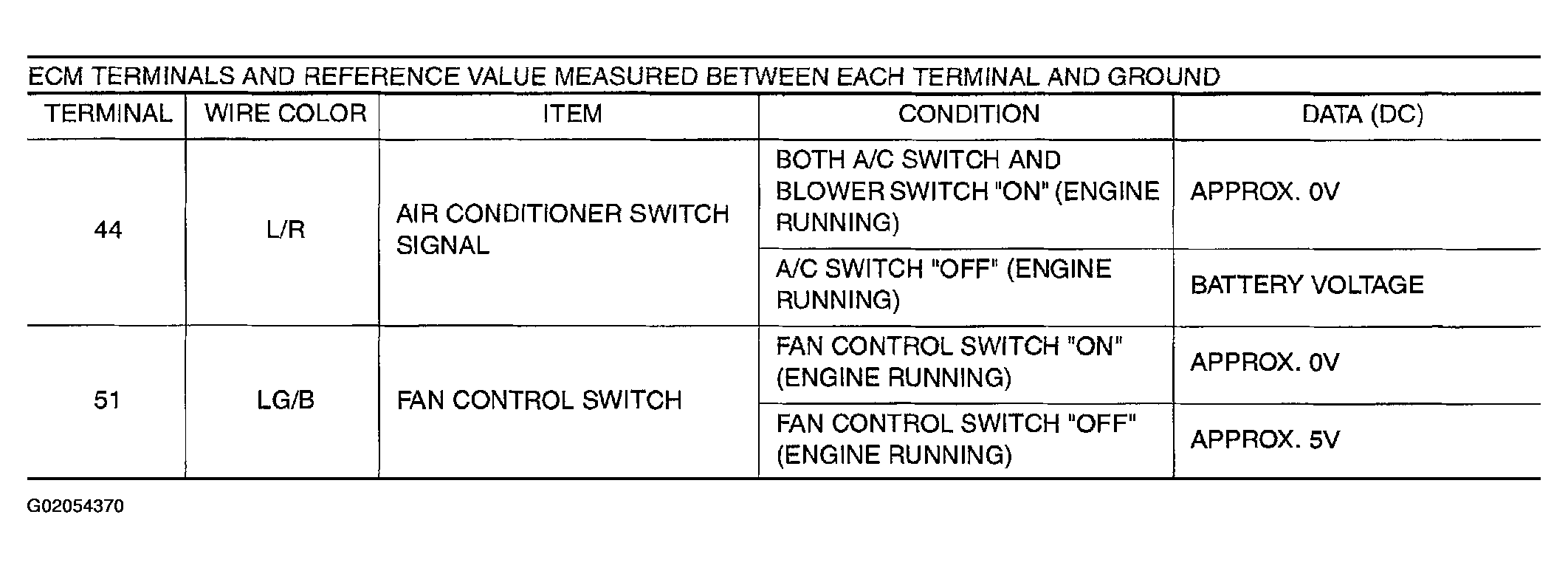

ECM TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL AND GROUND

Fig 2: ECM Terminal And Ground Reference Value Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

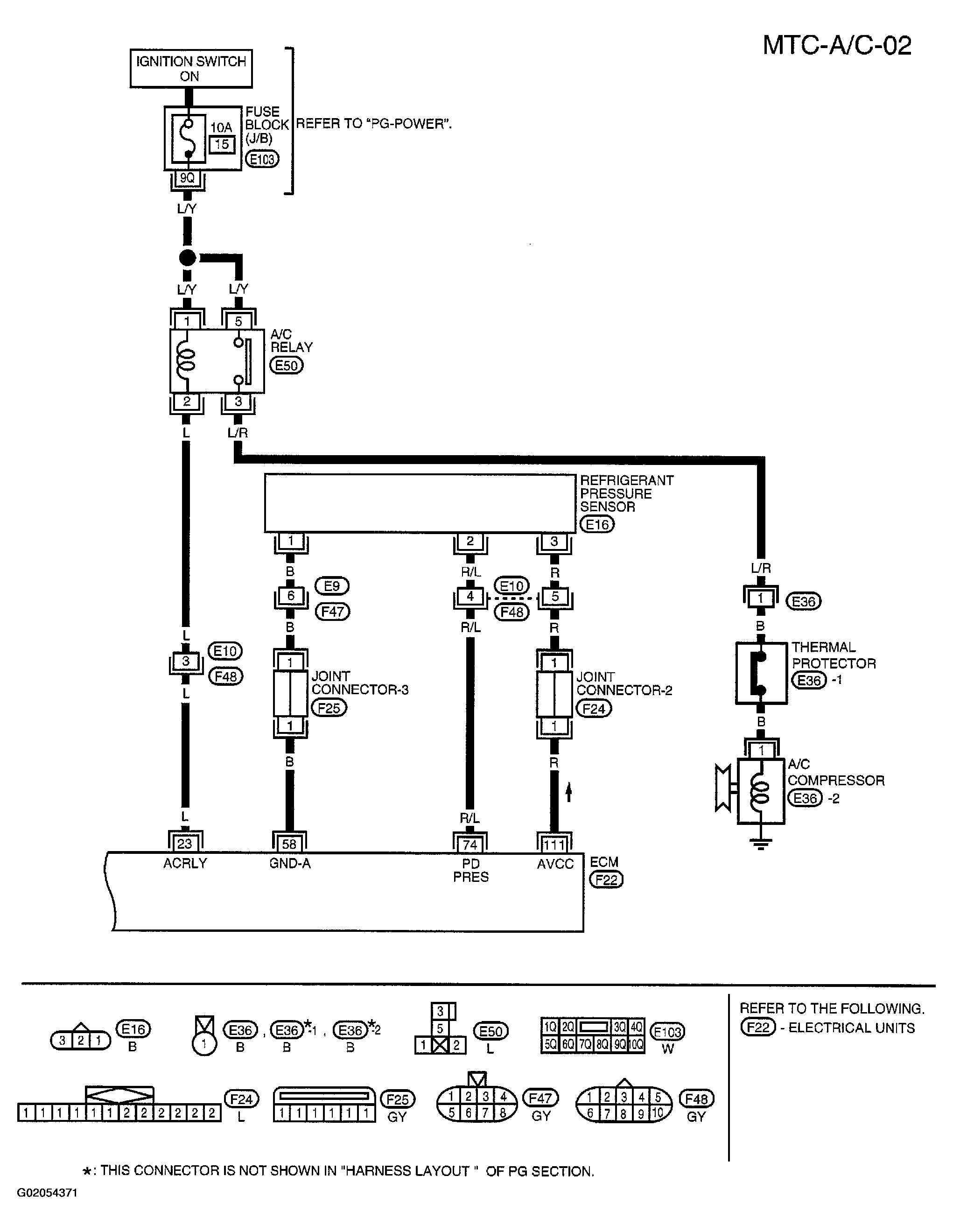

Fig 3: Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

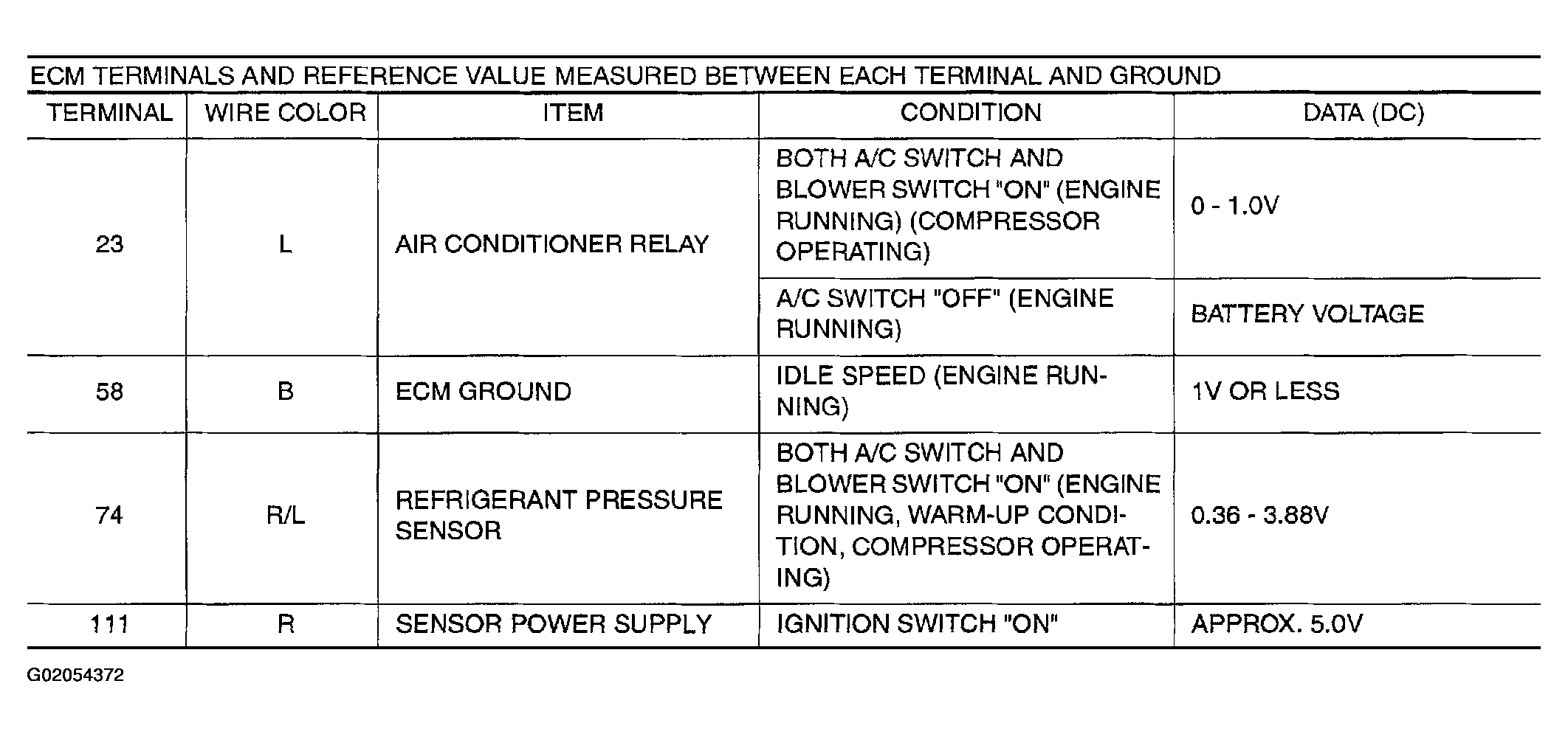

ECM TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL AND GROUND

Fig 4: ECM Terminal And Ground Reference Value Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
