WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

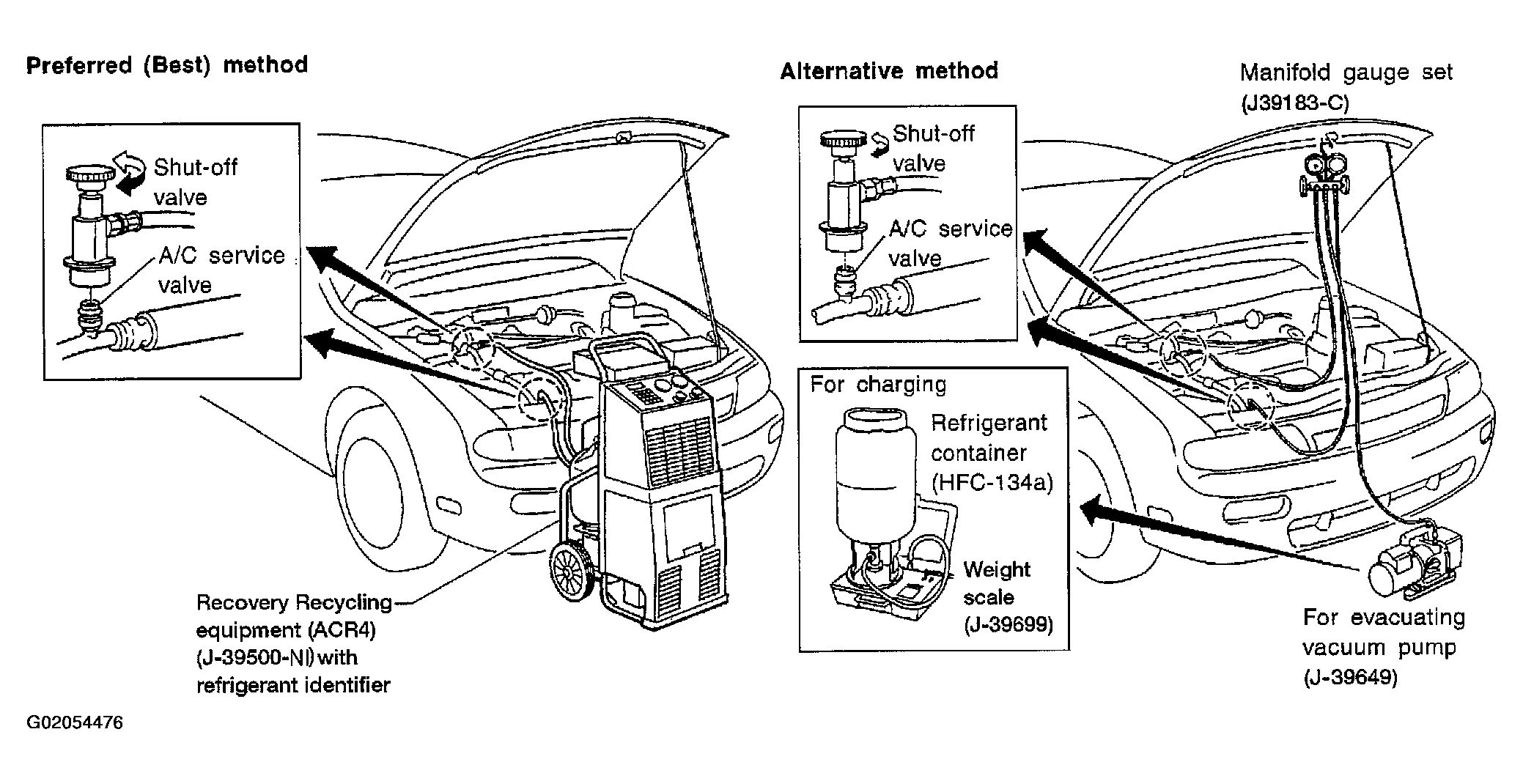

Fig 1: Evacuating System And Charging Refrigerant
Courtesy of NISSAN MOTOR CO., U.S.A.

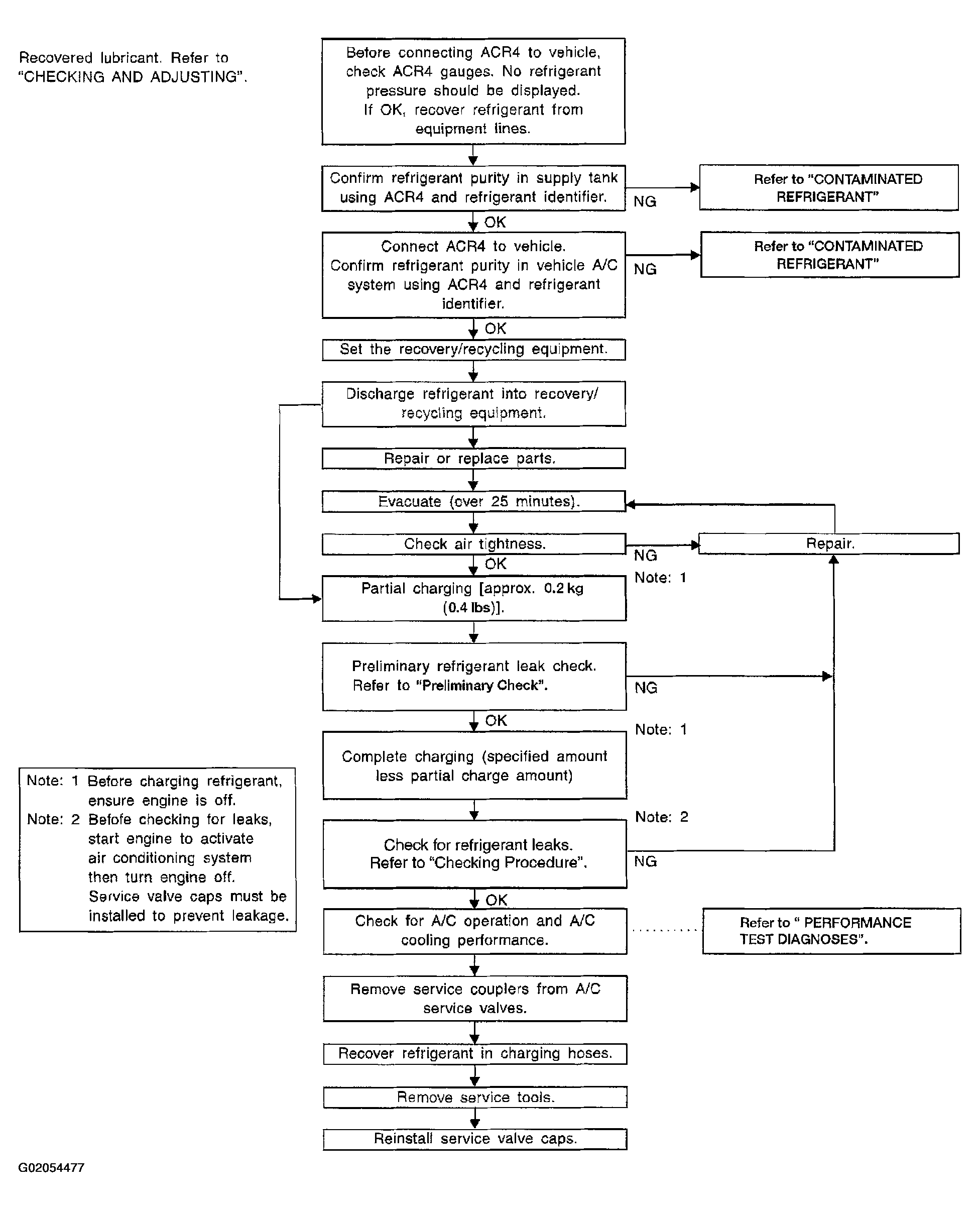

Fig 2: Evacuating System And Charging Refrigerant - Flow Chart
