Manifold Gauge Set

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Be certain that the gauge face indicates R-134a or 134a. Make sure the gauge set has 1/2" - 16 ACME threaded connections for service hoses. Confirm the set has been used only with refrigerant HFC-134a (R-134a) along with specified lubricant.

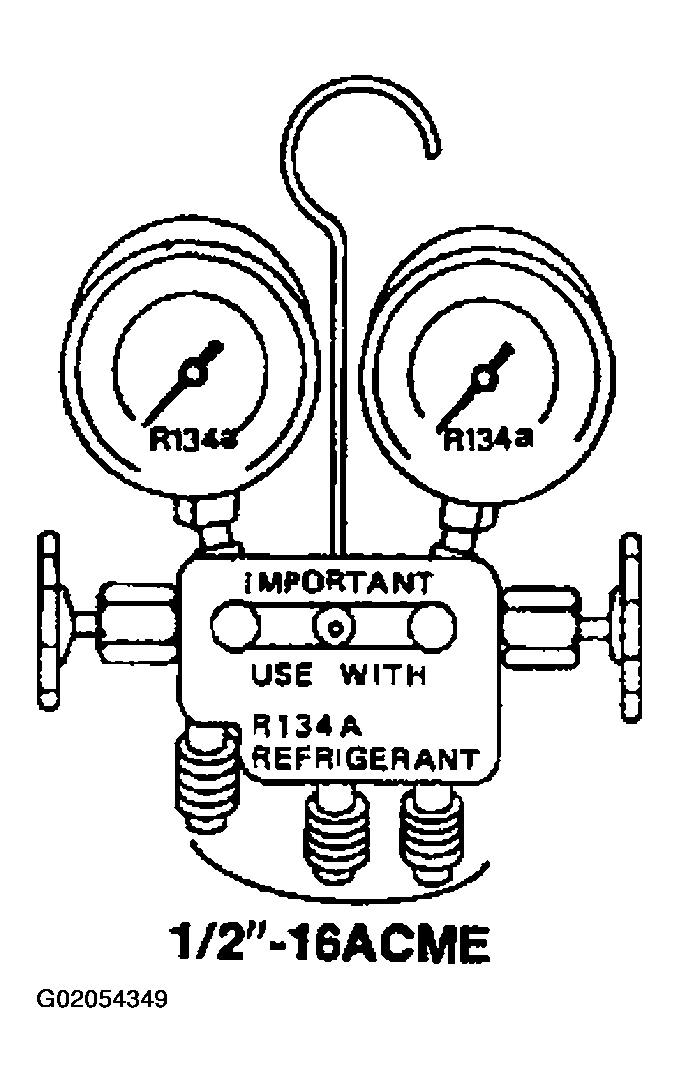

Fig 1: Identifying Manifold Gauge Set
G02054349Courtesy of NISSAN MOTOR CO., U.S.A.
