Intake Door Motor

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install intake door motor on intake unit.

    Ensure that the intake door motor lever is fitted into the slit portion of intake door link.

  2. Connect the intake door motor harness connector.
  3. Turn ignition switch to "ON" position.
  4. Check that intake door operates properly when REC switch is turned ON and OFF.

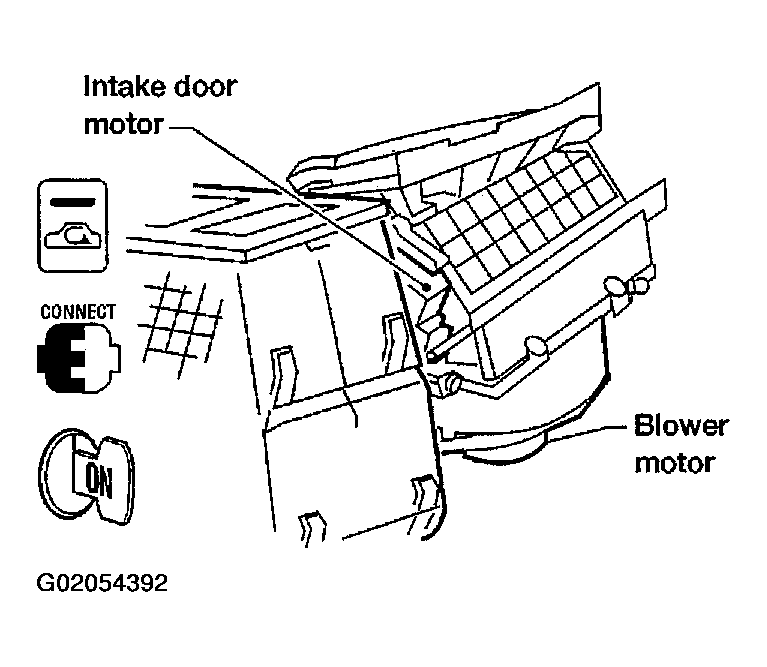

    Fig 1: Installing Intake Door Motor On Intake Unit
    G02054392Courtesy of NISSAN MOTOR CO., U.S.A.
