Heater & Cooling Unit (Heater Core): Removal

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

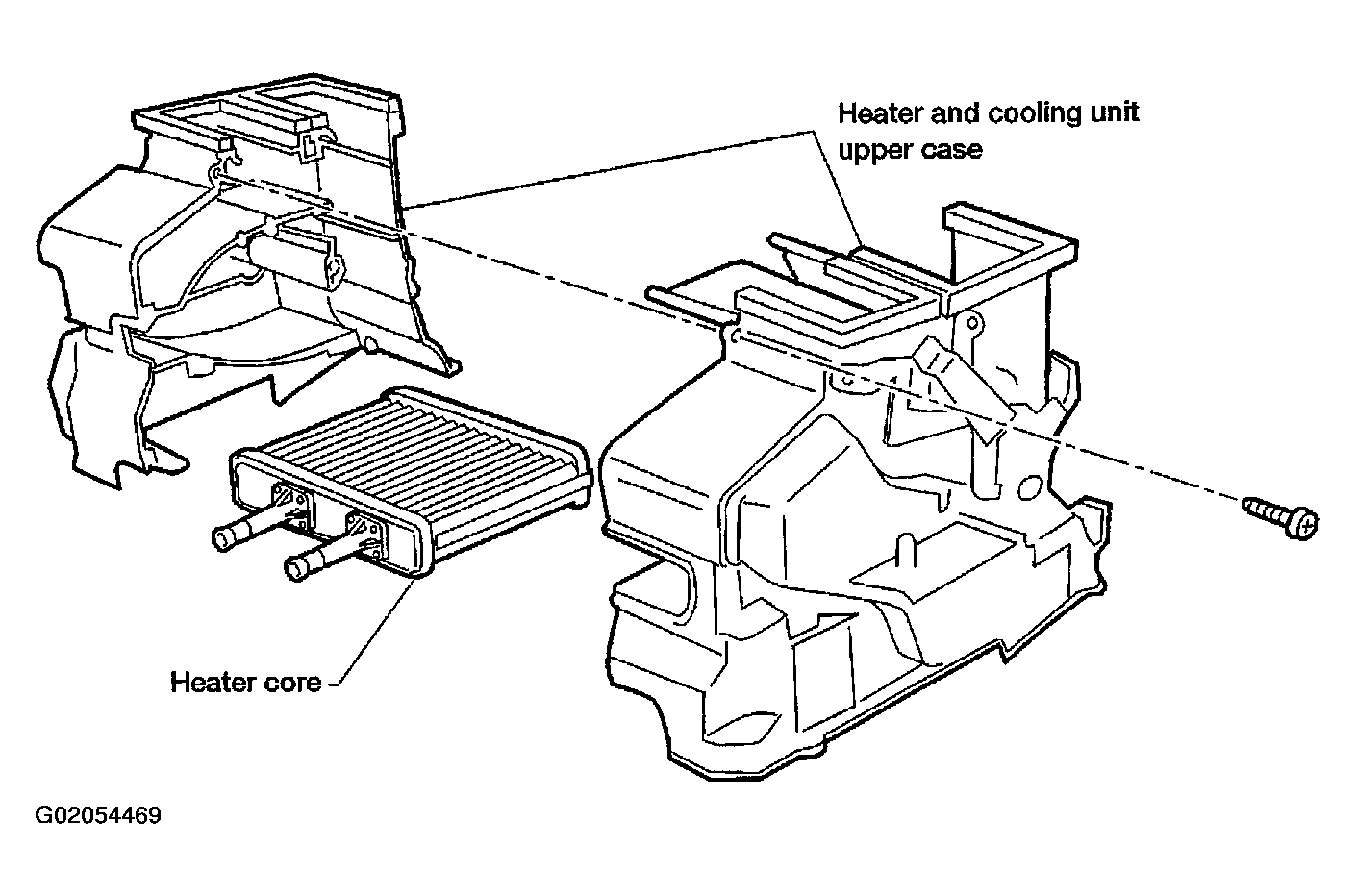

Fig 1: Removing Heater & Cooling Unit (Heater Core)
G02054469Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Drain the cooling system. .
  2. Discharge the A/C system. Refer to , "DISCHARGING REFRIGERANT ".
  3. Disconnect the two heater hoses from inside the engine compartment.
  4. Remove the instrument panel assembly and steering member assembly. .
  5. Remove the heater unit.
  6. Remove the heater core.
