Compressor Clutch: Removal: Qr25DE
WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

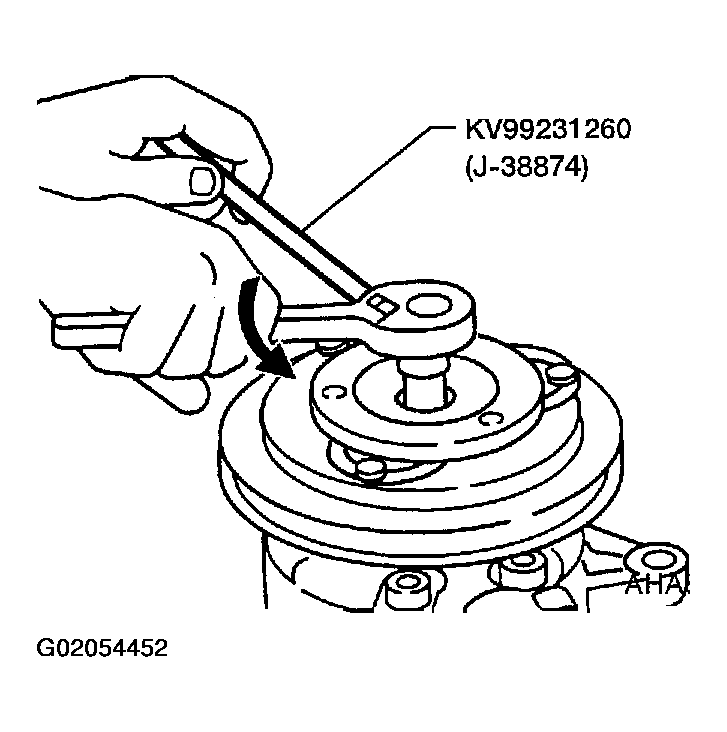

- When removing center bolt, hold clutch disc with clutch disc tool.

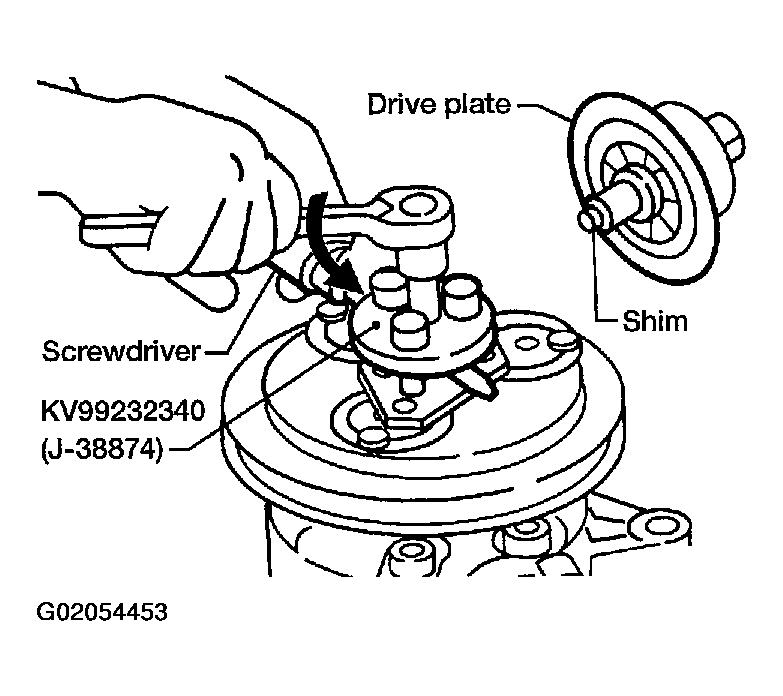

- Remove the drive plate using the clutch disc puller.
Insert the holder's three pins into the drive plate. Rotate the holder clockwise to hook it onto the plate. Then tighten the center bolt to remove the drive plate.
While tightening the center bolt, insert a round bar (screwdriver, etc.) between two of the pins (as shown in the figure) to prevent drive plate rotation. After removing the drive plate, remove the shims from either the drive shaft or the drive plate.
Courtesy of NISSAN MOTOR CO., U.S.A.

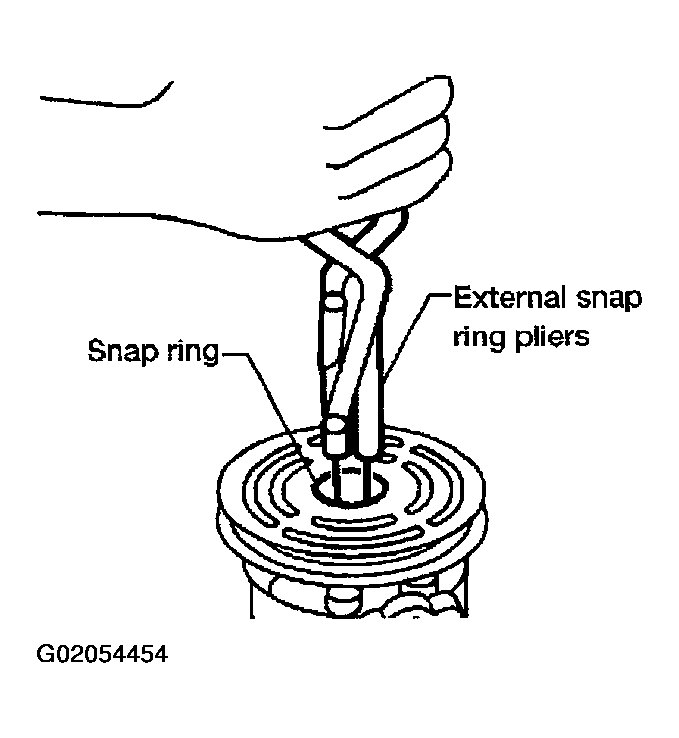

- Remove the snap ring using external snap ring pliers.

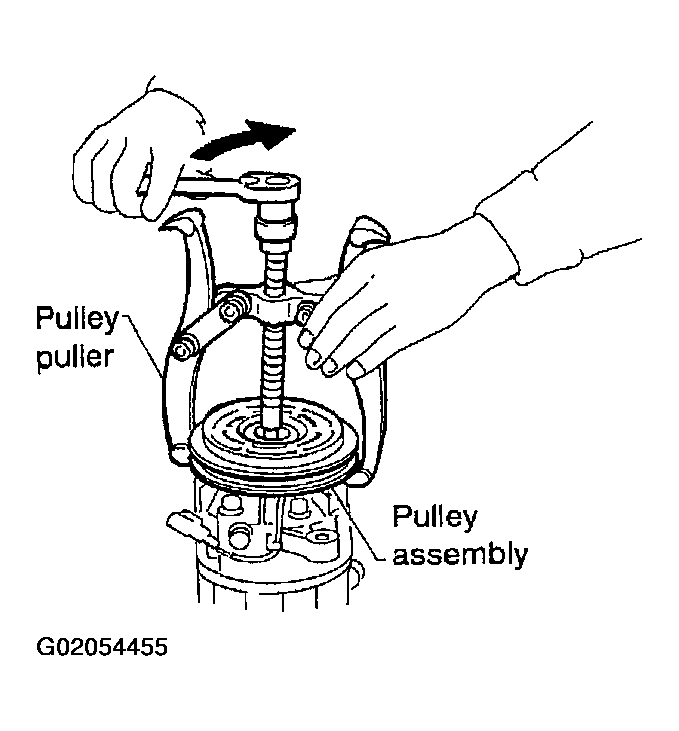

- For pulley removal, use pulley puller.
Use a commercially available pulley puller. Position the center of the puller on the end of the drive shaft. Remove the pulley assembly with the puller.
To prevent deformation of the pulley groove, the puller claws should be hooked under (not into) the pulley groove .

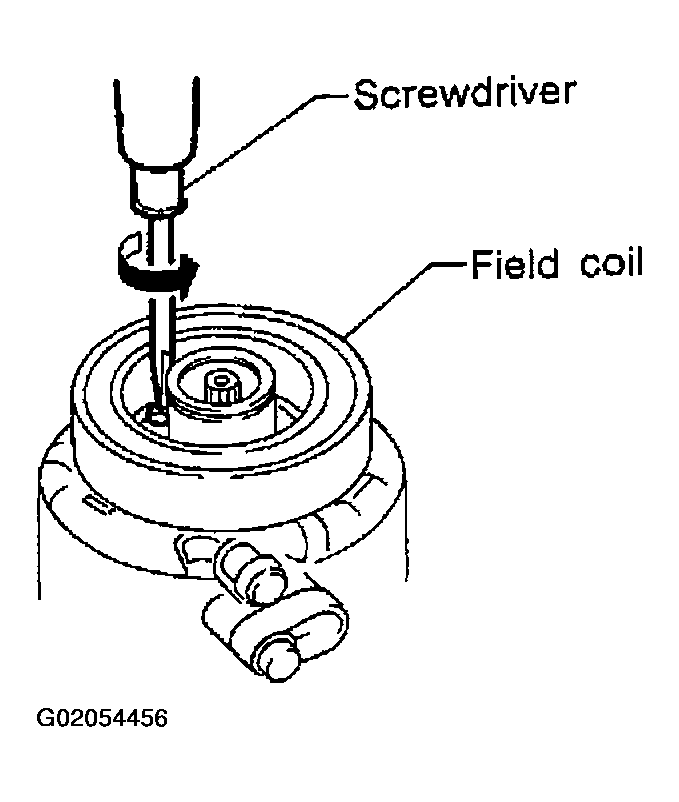

- Remove the field coil harness clip using a screwdriver.
- Remove the three field coil fixing screws and remove the field coil.
