Compressor Clutch: Installation: QG18DE

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

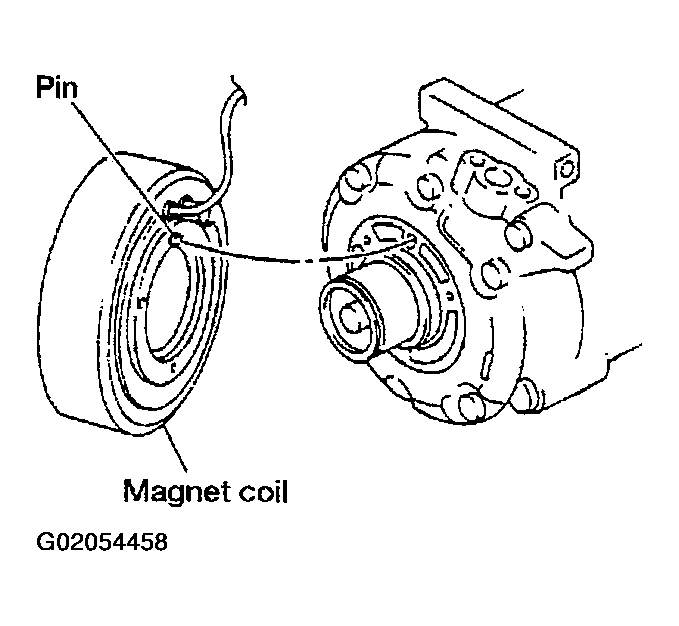

Install the magnet coil.
Be sure to align the magnet coil pin with the hole in the compressor front head .
Install the magnet coil harness clip using a screwdriver.

Fig 1: Installing Magnet Coil
Courtesy of NISSAN MOTOR CO., U.S.A.

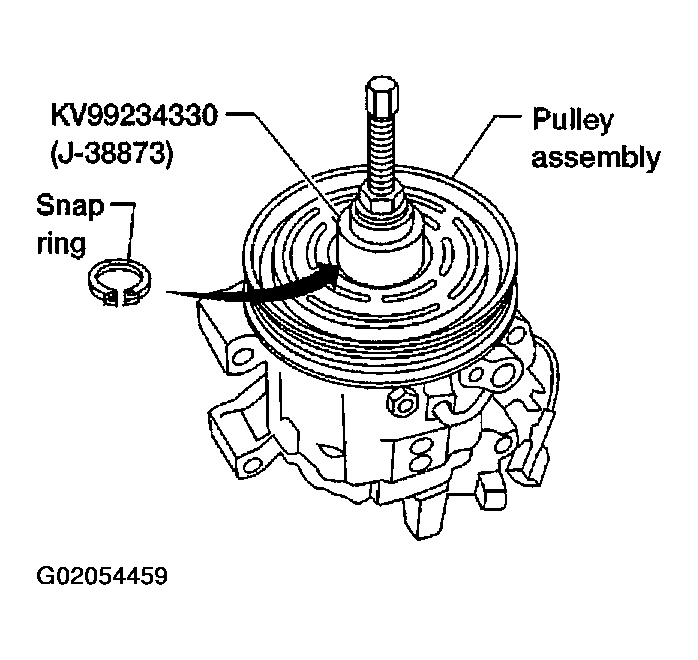

Install the pulley assembly using the installer and a wrench, and then install the snap ring using snap ring pliers.

Fig 2: Installing Snap Ring Using Snap Ring Pliers
Courtesy of NISSAN MOTOR CO., U.S.A.

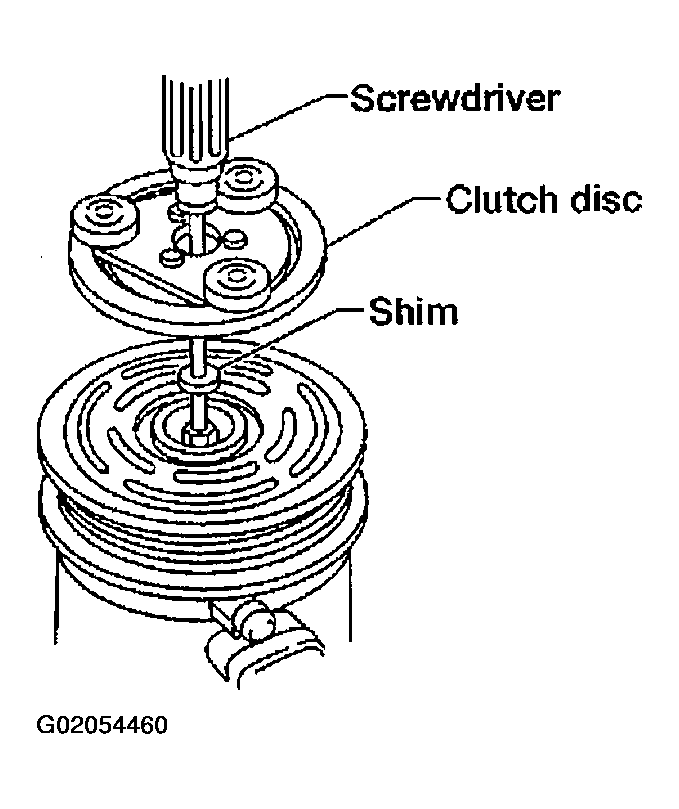

Install the clutch disc on the drive shaft, together with the original shim(s). Press the clutch disc down by hand.

Fig 3: Installing Clutch Disc On Drive Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.

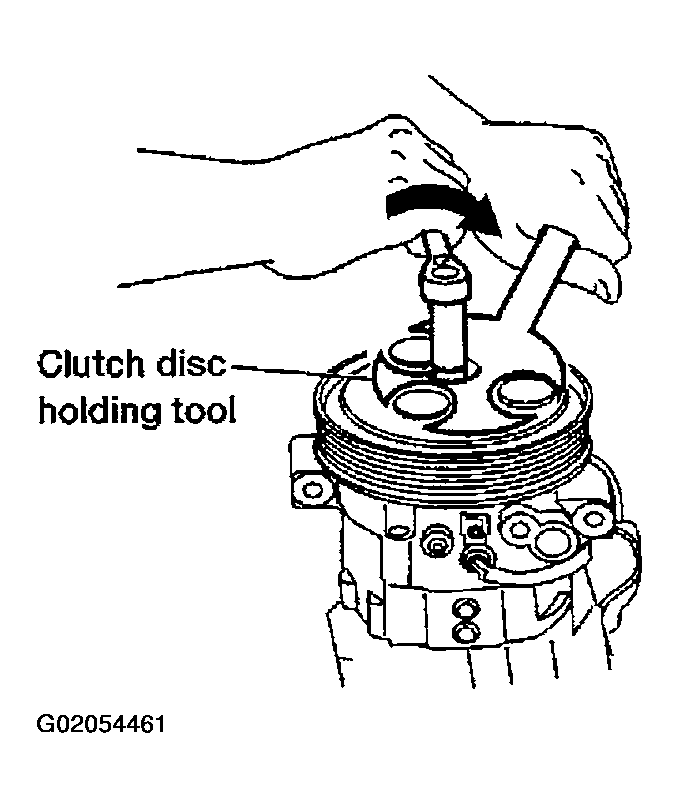

Using the clutch disc tool to prevent clutch disc rotation, tighten the bolt to 12 to 15 N.m (1.2 to 1.5 kg-m, 9 to 11 ft-lb) torque.
After tightening the bolt, check that the pulley rotates smoothly .

Fig 4: Tightening Bolt
Courtesy of NISSAN MOTOR CO., U.S.A.

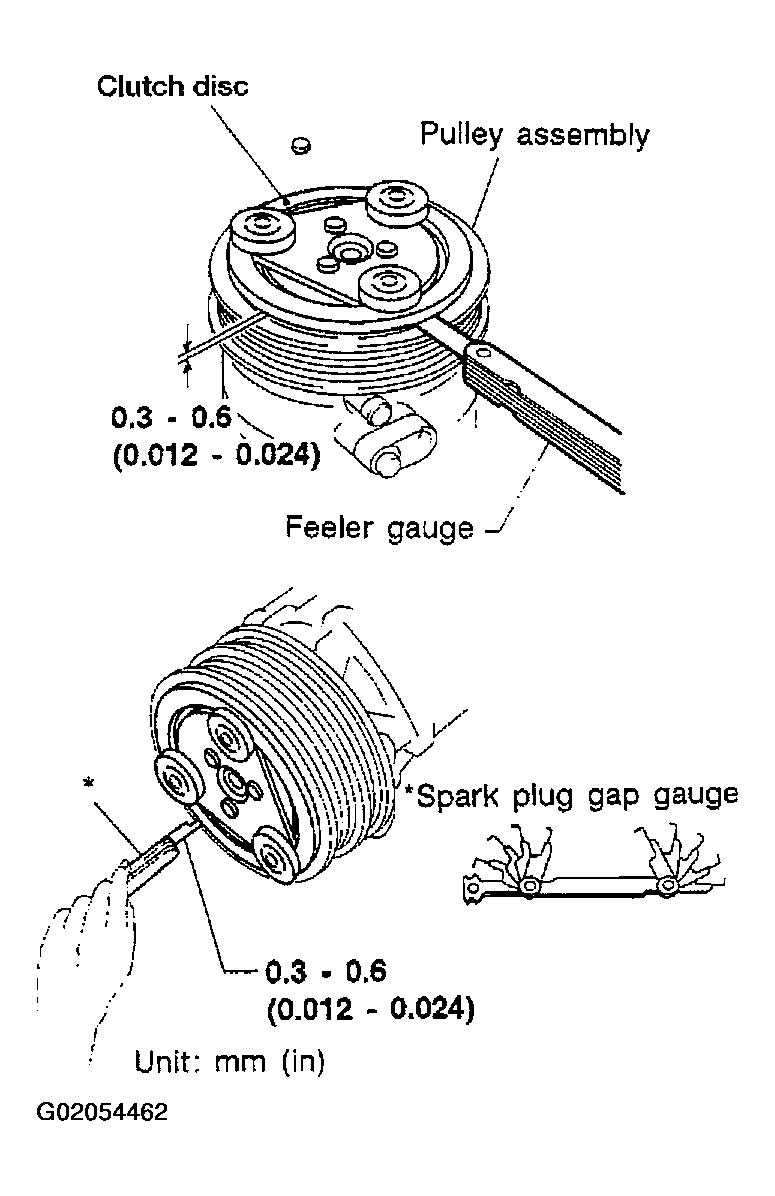

Check clearance all the way around the clutch disc.
Clutch disc-to-pulley : 0.3 - 0.6 mm (0.012 - 0.024 in) clearance

If the specified clearance is not obtained, replace adjusting spacer and readjust.

Fig 5: Checking Clearance Around Clutch Disc
