Clutch Disc

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

If the contact surface shows signs of damage due to excessive heat, replace clutch disc and pulley.

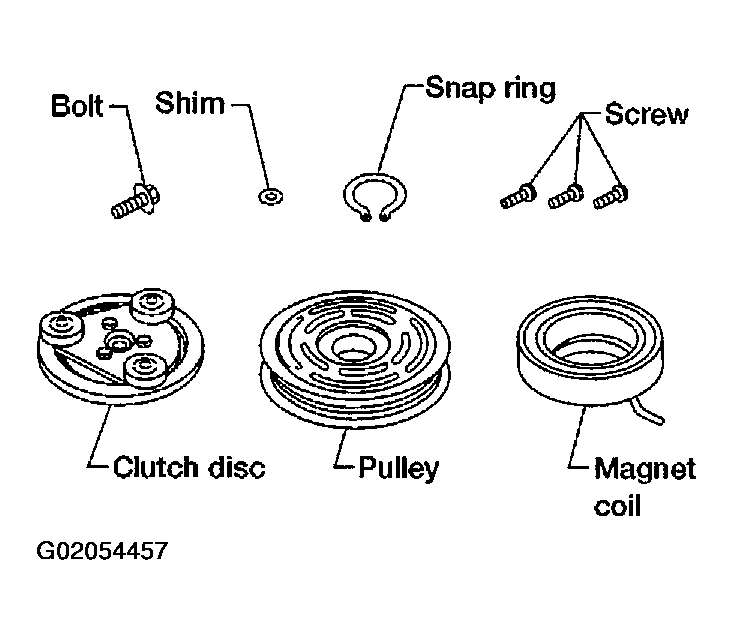

Fig 1: Identifying Clutch Disc Components
G02054457Courtesy of NISSAN MOTOR CO., U.S.A.
