Ignition Power Supply - Ignition SW. In On

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

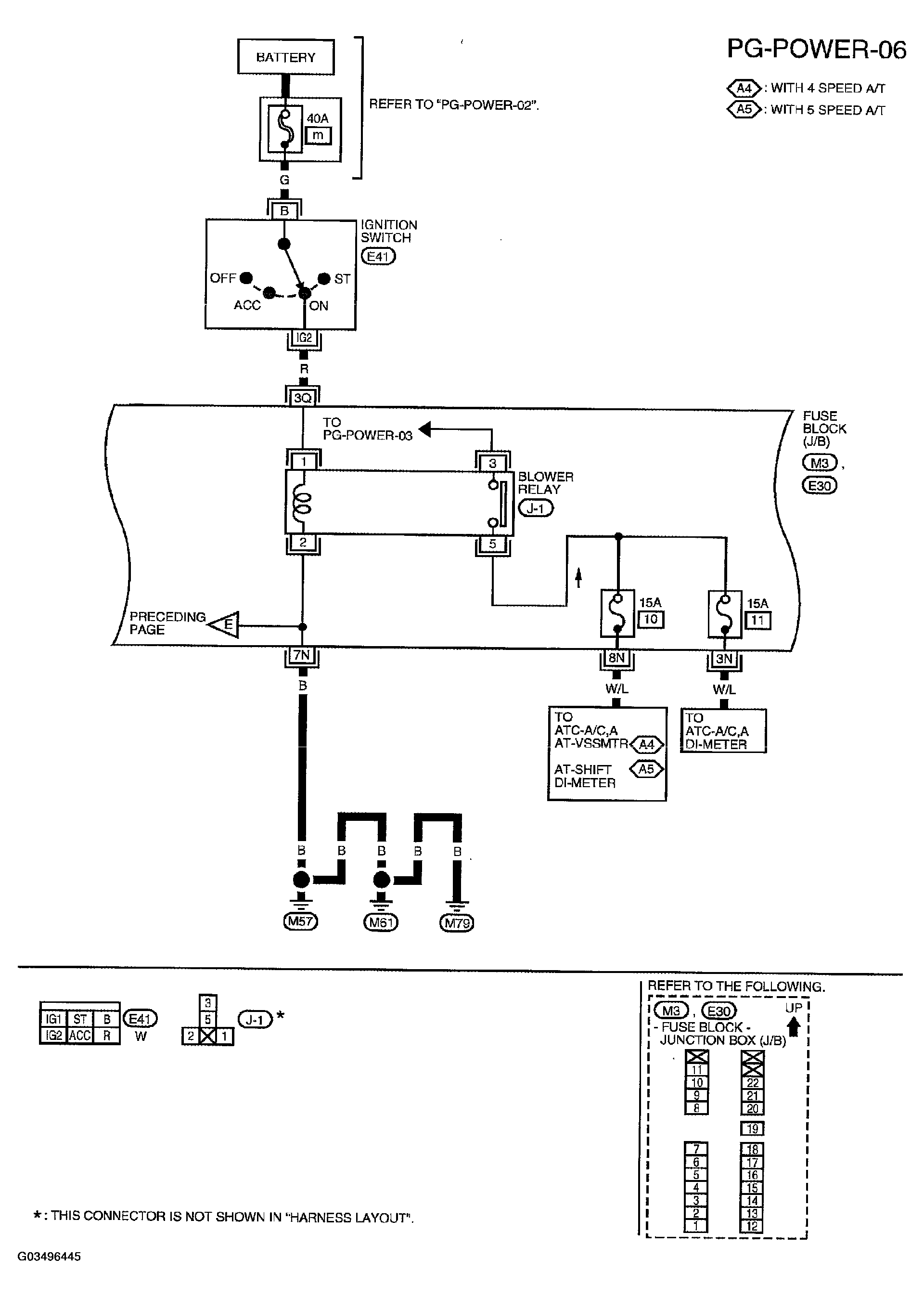

Fig 1: Ignition Power Supply - Ignition Switch In On - Wiring Diagram - PG-POWER-06
G03496445Courtesy of NISSAN MOTOR CO., U.S.A.
