Ignition Power Supply - Ignition SW. In On And/Or Start
WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

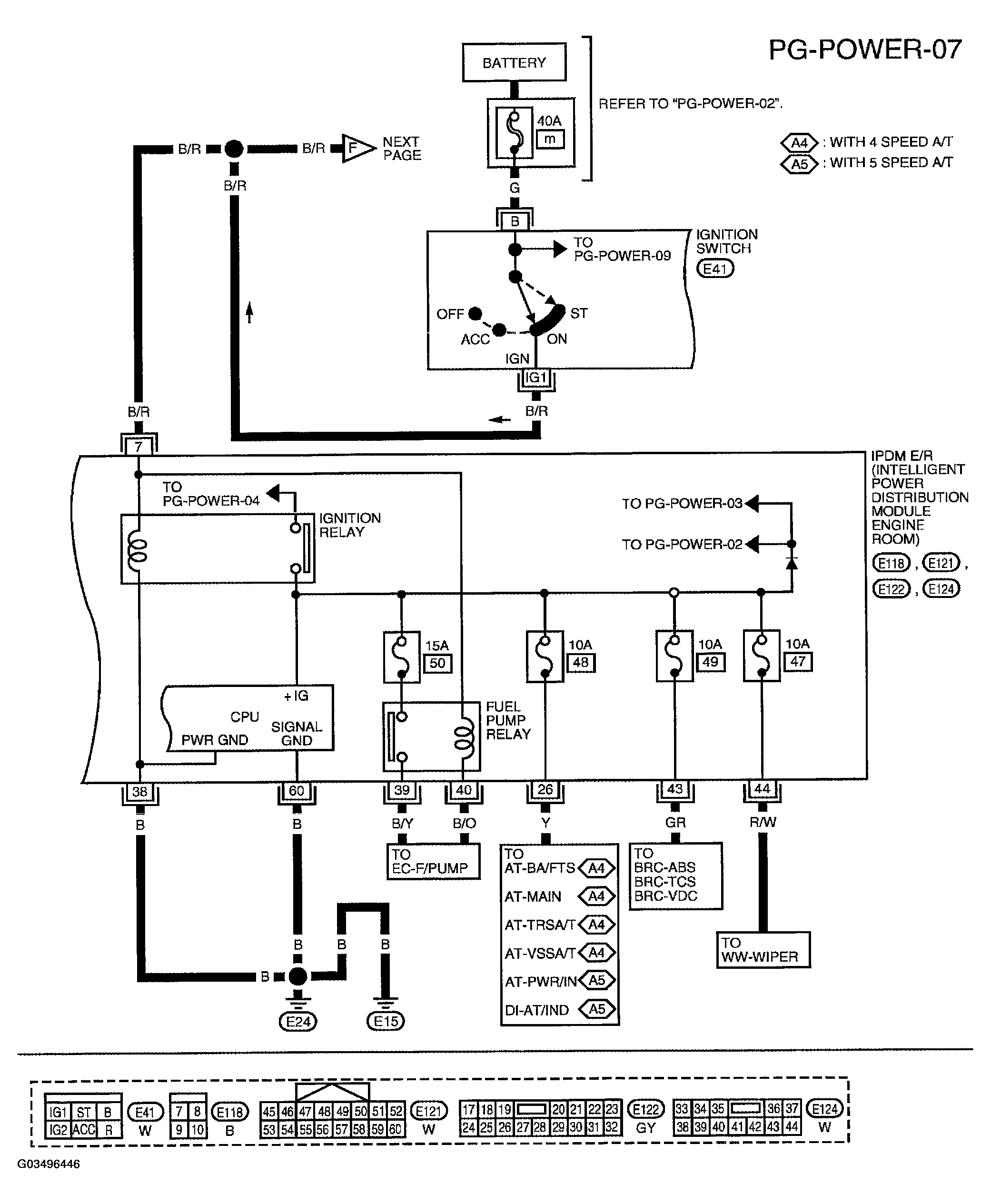

Fig 1: Ignition Power Supply - Ignition Switch In On And/Or Start - Wiring Diagram - PG-POWER-07
Courtesy of NISSAN MOTOR CO., U.S.A.

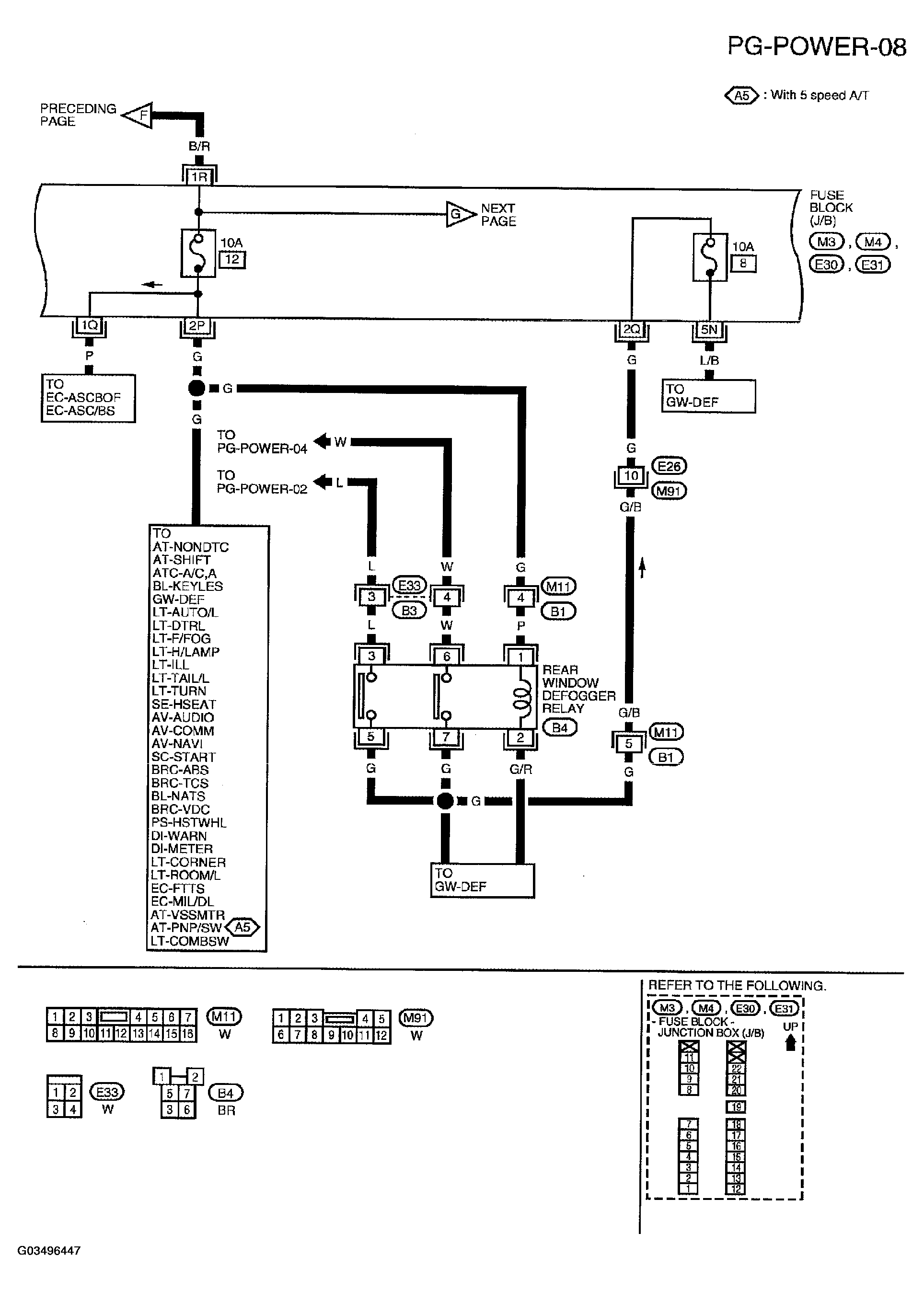

Fig 2: Ignition Power Supply - Ignition Switch In On And/Or Start - Wiring Diagram - PG-POWER-08
Courtesy of NISSAN MOTOR CO., U.S.A.

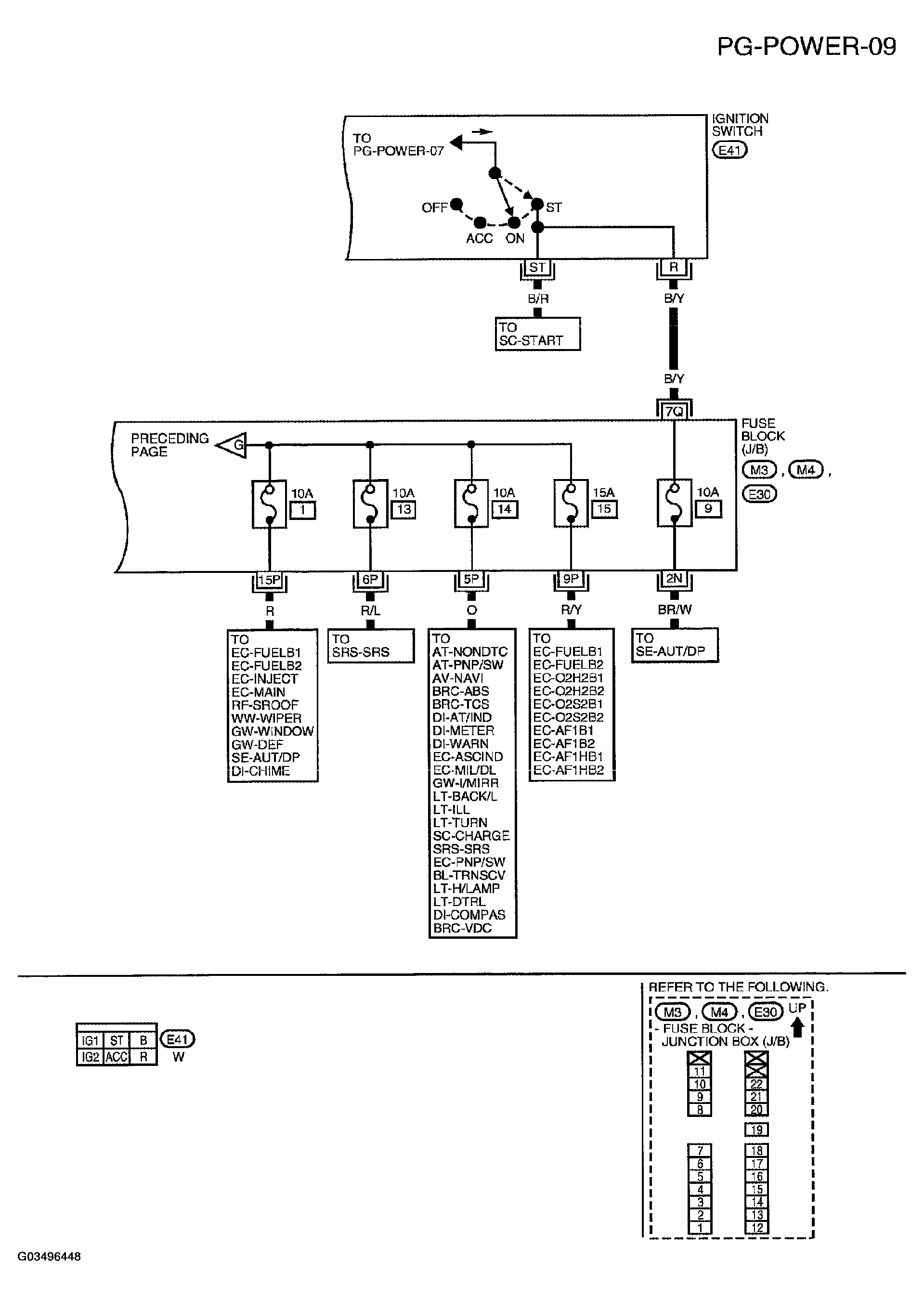

Fig 3: Ignition Power Supply - Ignition Switch In On And/Or Start - Wiring Diagram - PG-POWER-09
