Power Supply Routing Circuit: Schematic

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

For detailed ground distribution, refer to "GROUND DISTRIBUTION ".

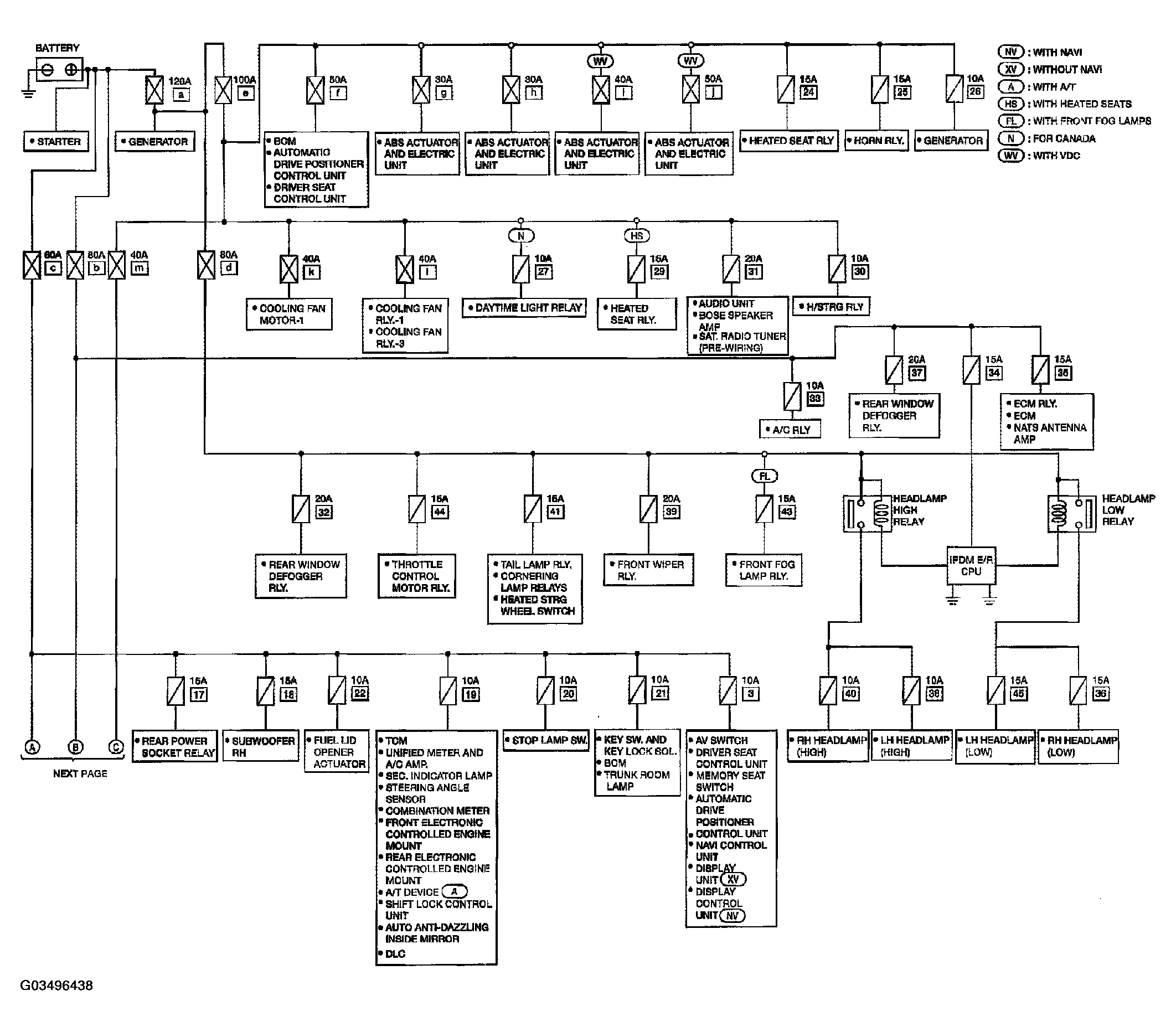

Fig 1: Power Supply Routing Circuit - Schematic Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

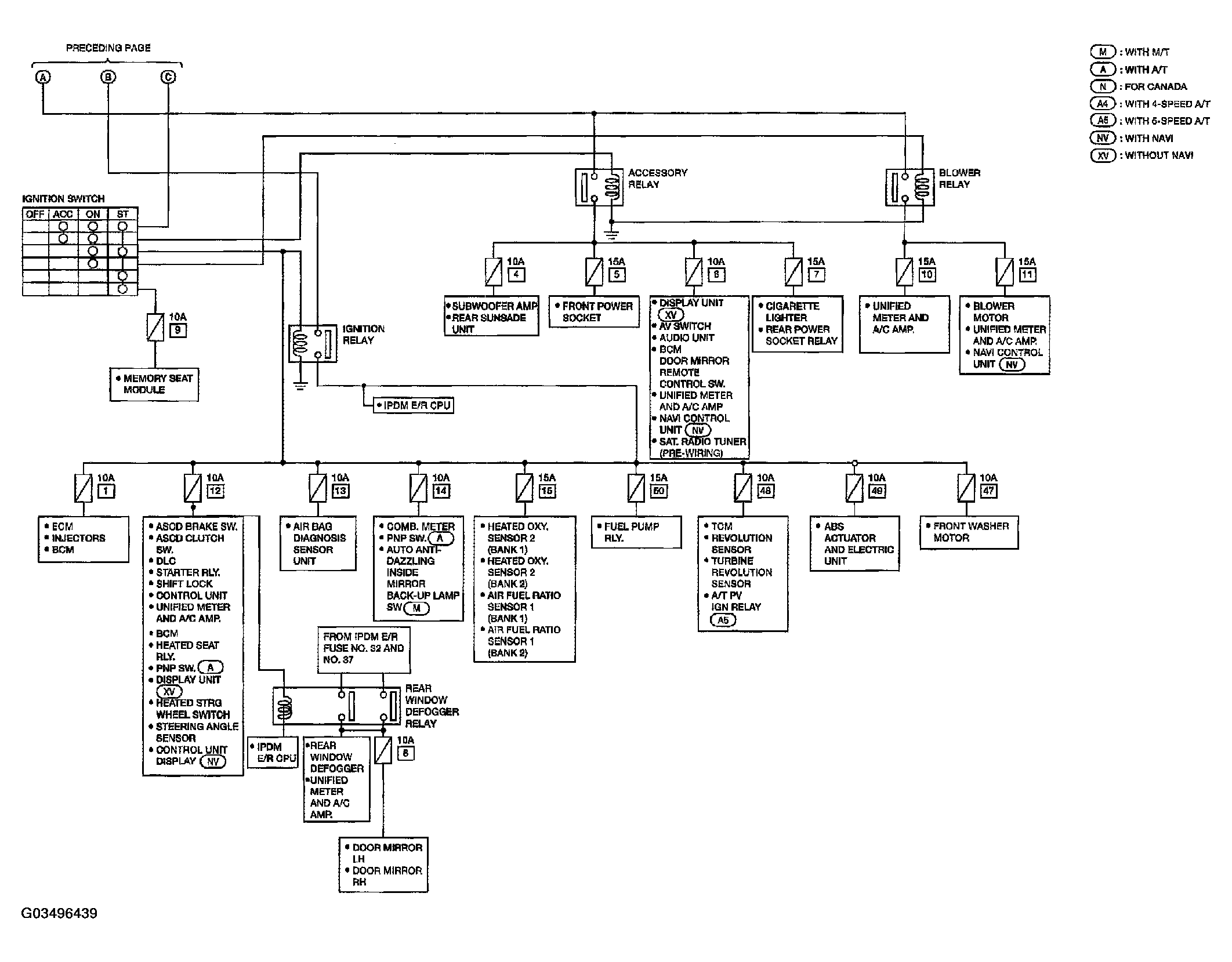

Fig 2: Power Supply Routing Circuit - Schematic Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
