Wiring Diagram - INF/D -

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For references to PG-POWER, refer to POWER SUPPLY ROUTING CIRCUIT .

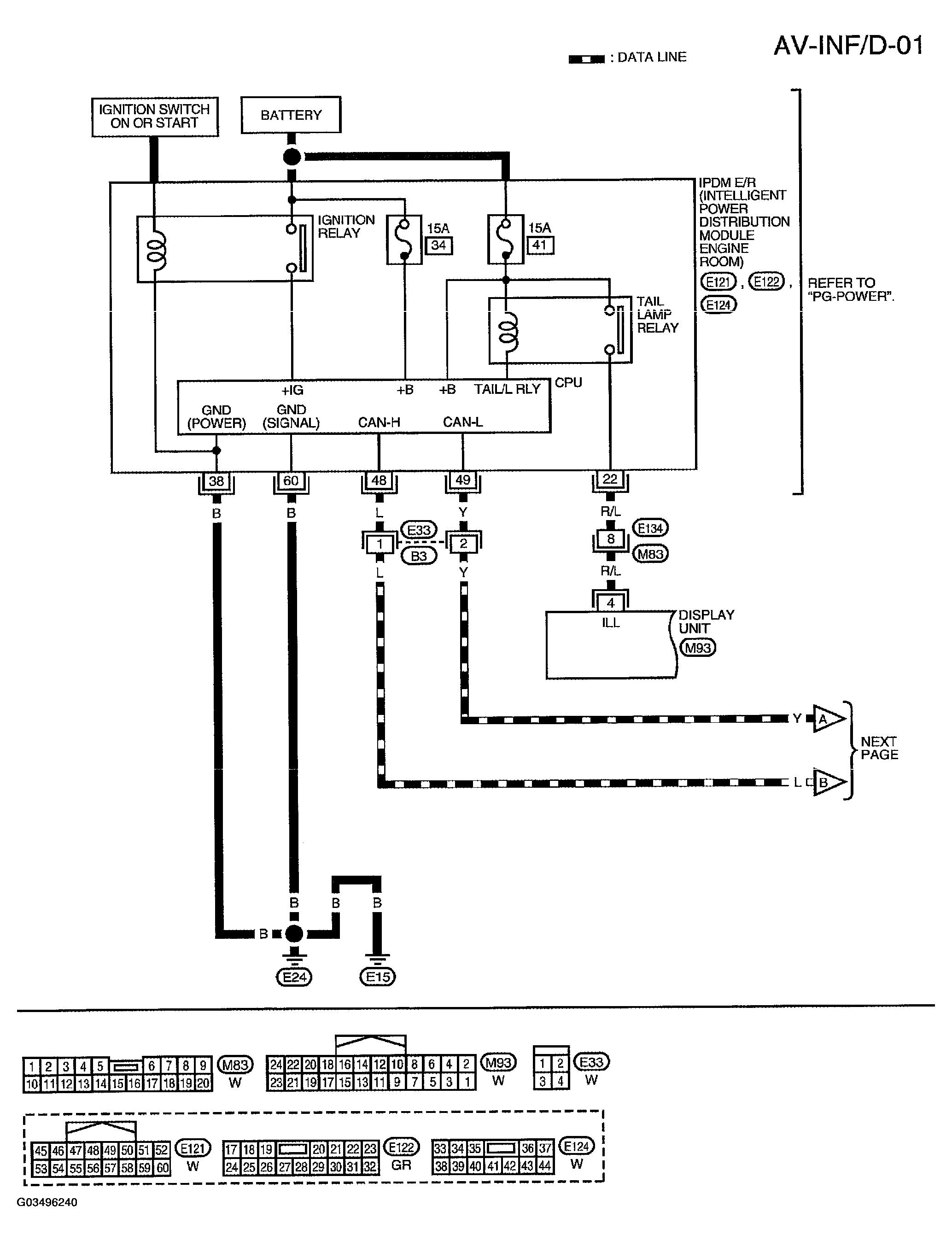

Fig 1: Wiring Diagram - AV-INF/D-01

G03496240

Courtesy of NISSAN MOTOR CO., U.S.A.

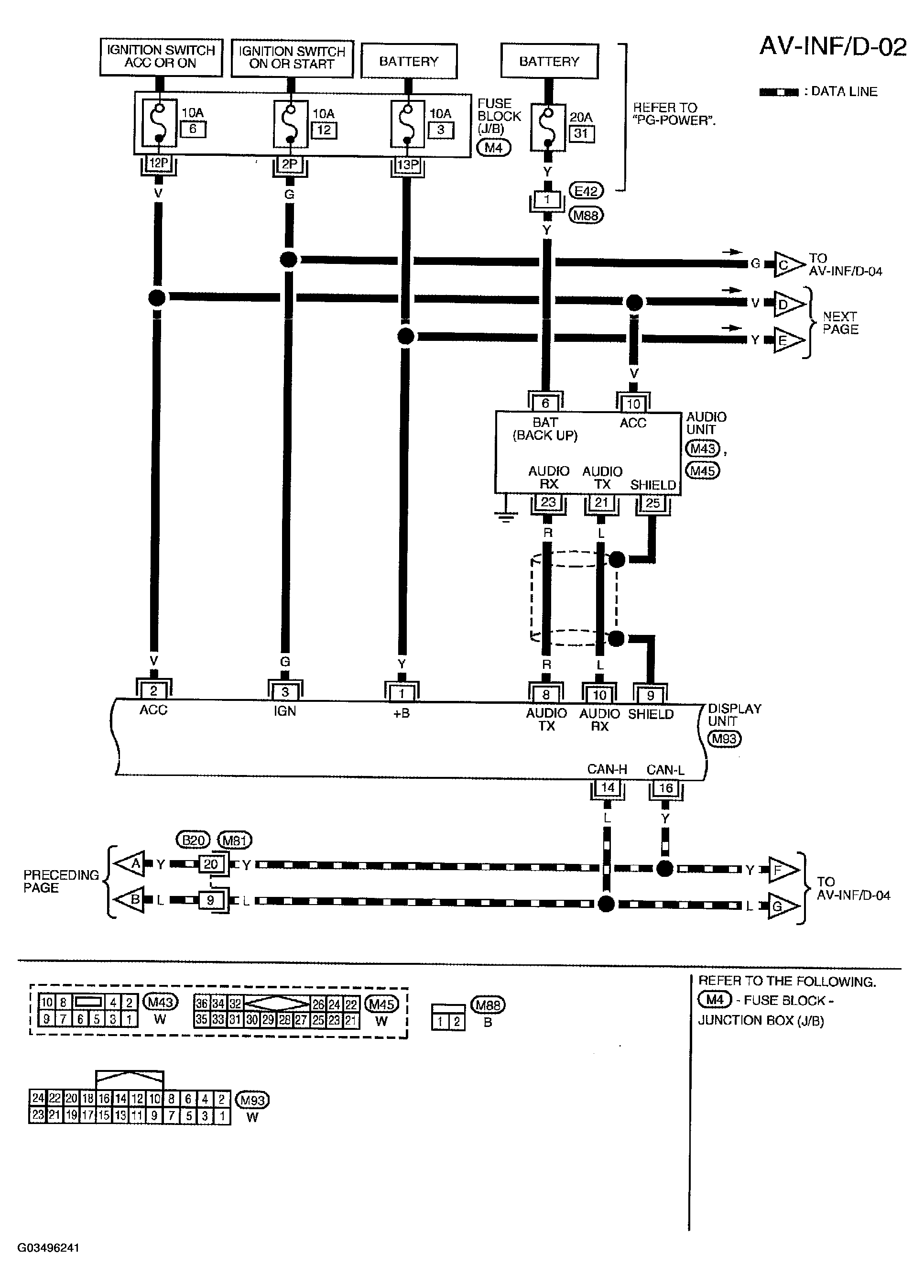

Fig 2: Wiring Diagram - AV-INF/D-02

G03496241

Courtesy of NISSAN MOTOR CO., U.S.A.

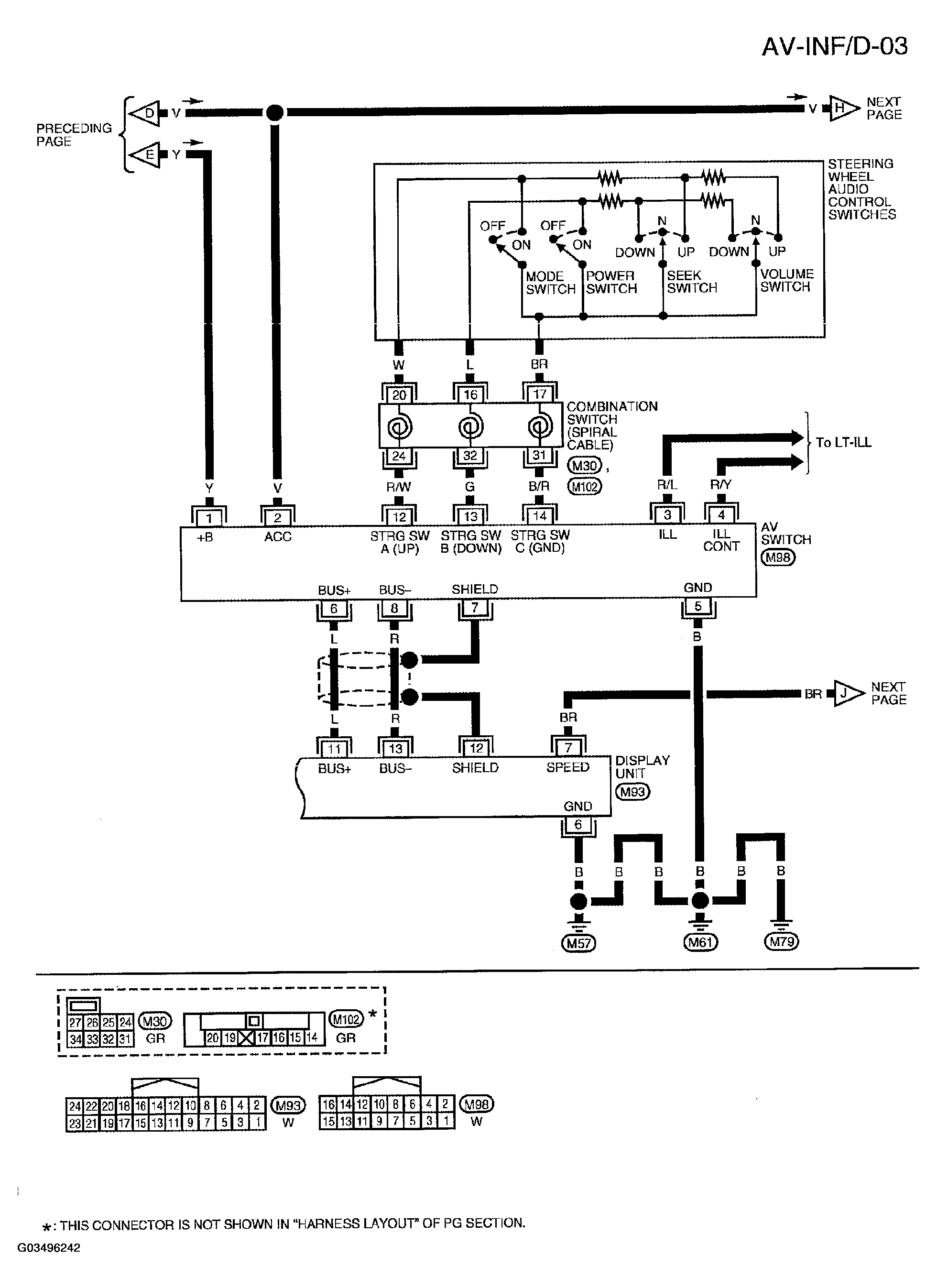

Fig 3: Wiring Diagram - AV-INF/D-03

G03496242

Courtesy of NISSAN MOTOR CO., U.S.A.

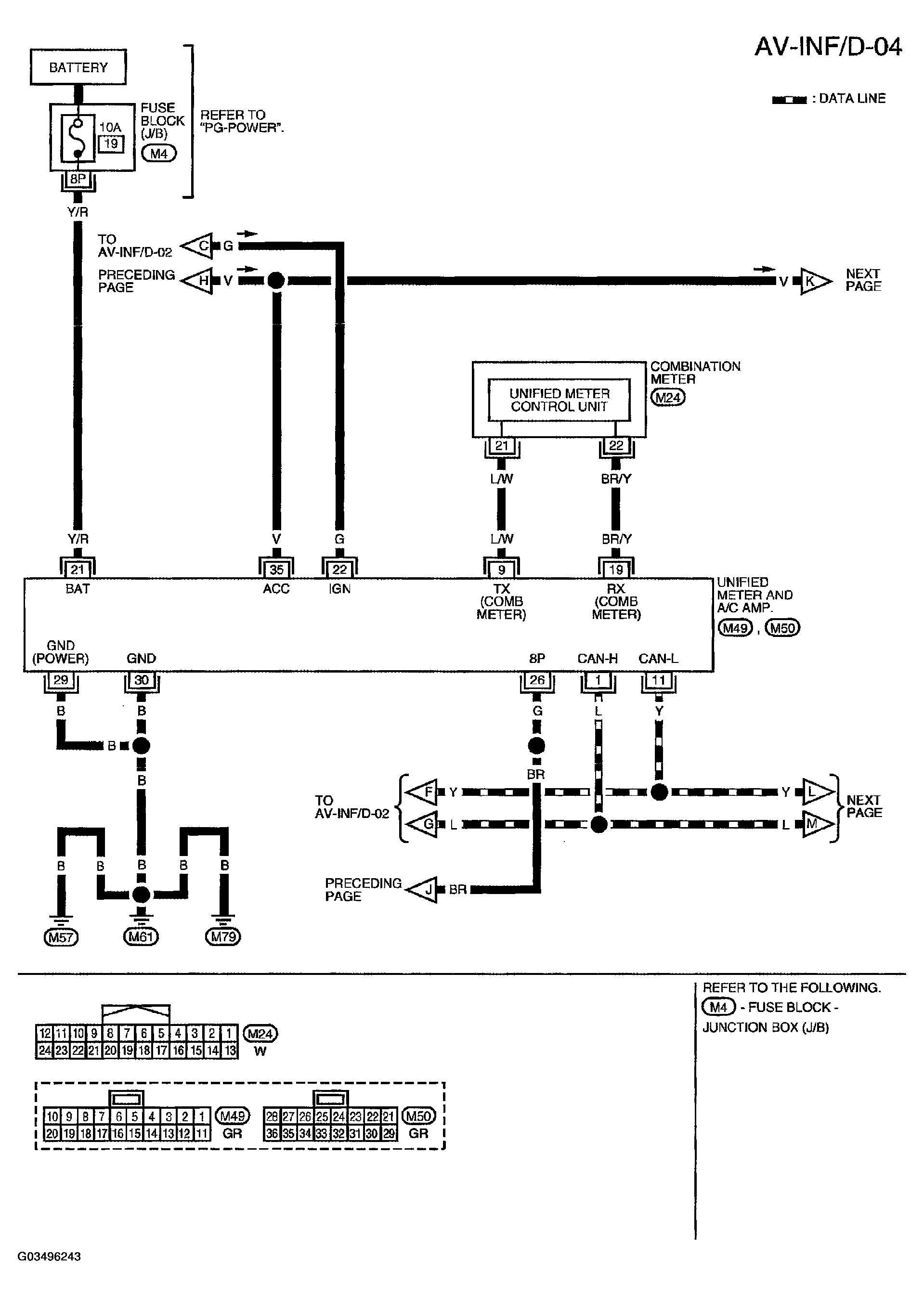

Fig 4: Wiring Diagram - AV-INF/D-04

G03496243

Courtesy of NISSAN MOTOR CO., U.S.A.

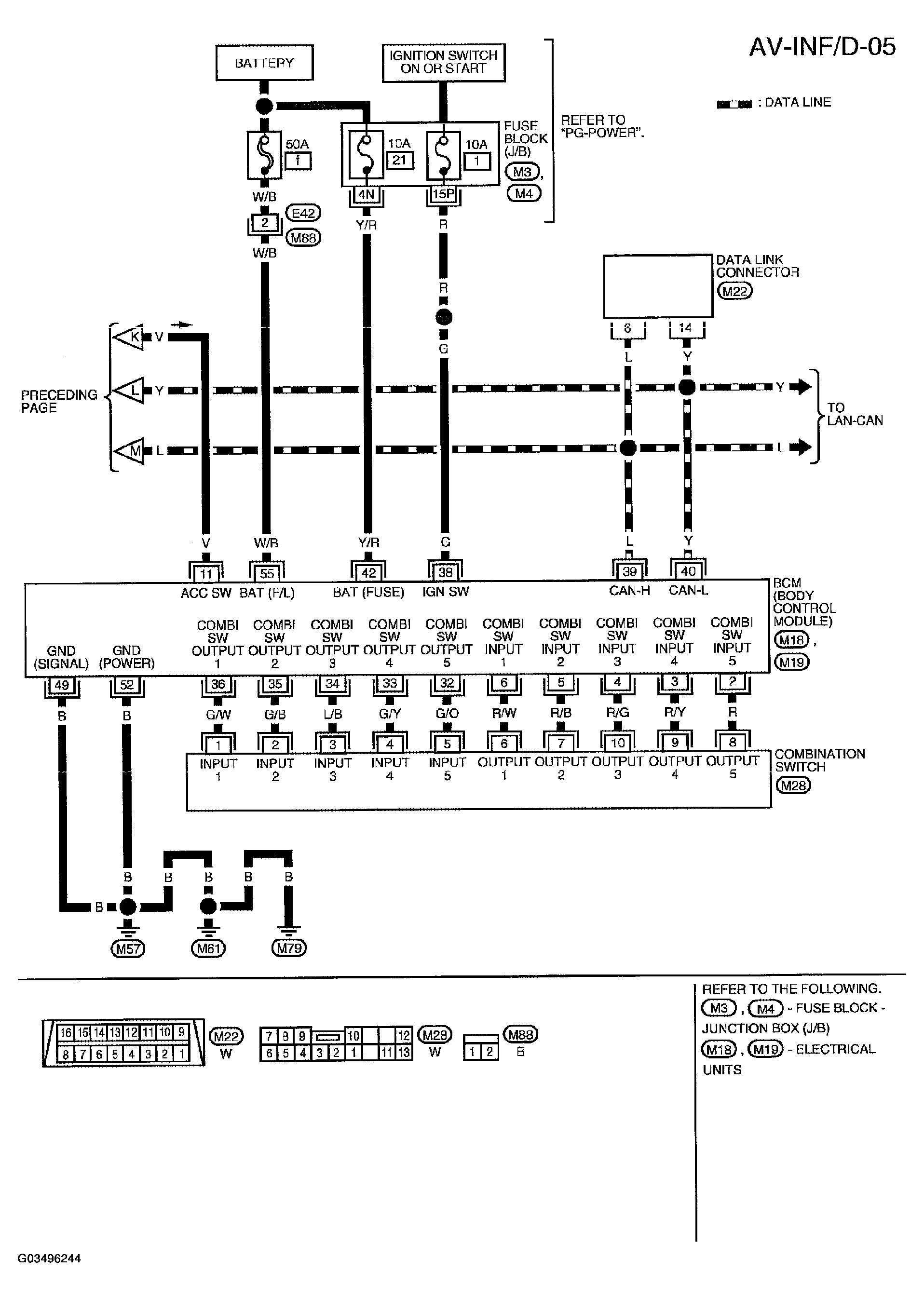

Fig 5: Wiring Diagram - AV-INF/D-05

G03496244

Courtesy of NISSAN MOTOR CO., U.S.A.
