Wiring Diagram - COMM -

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For references to PG-POWER, refer to POWER SUPPLY ROUTING CIRCUIT .

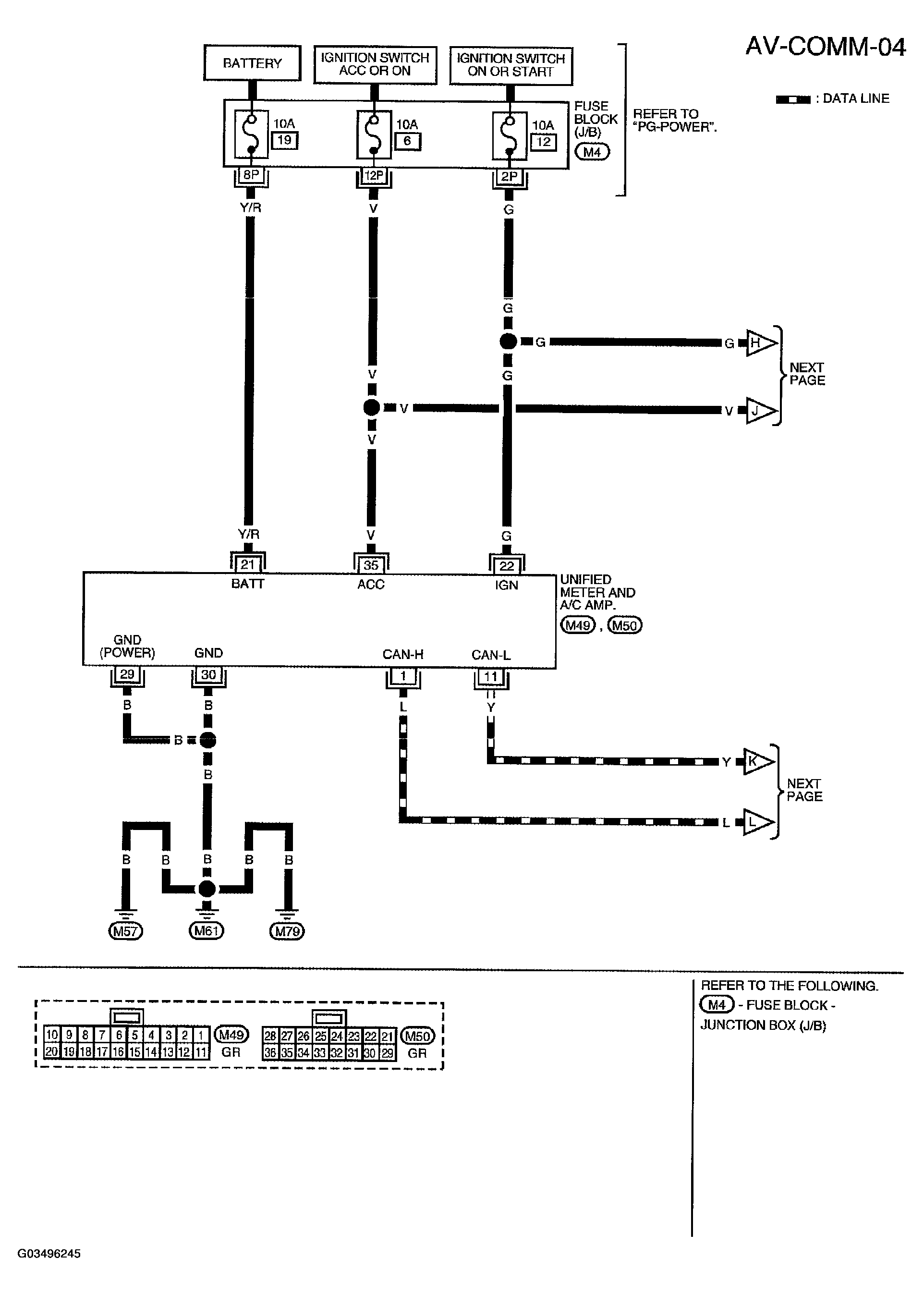

Fig 1: Wiring Diagram - AV-INF/D-06

Courtesy of NISSAN MOTOR CO., U.S.A.

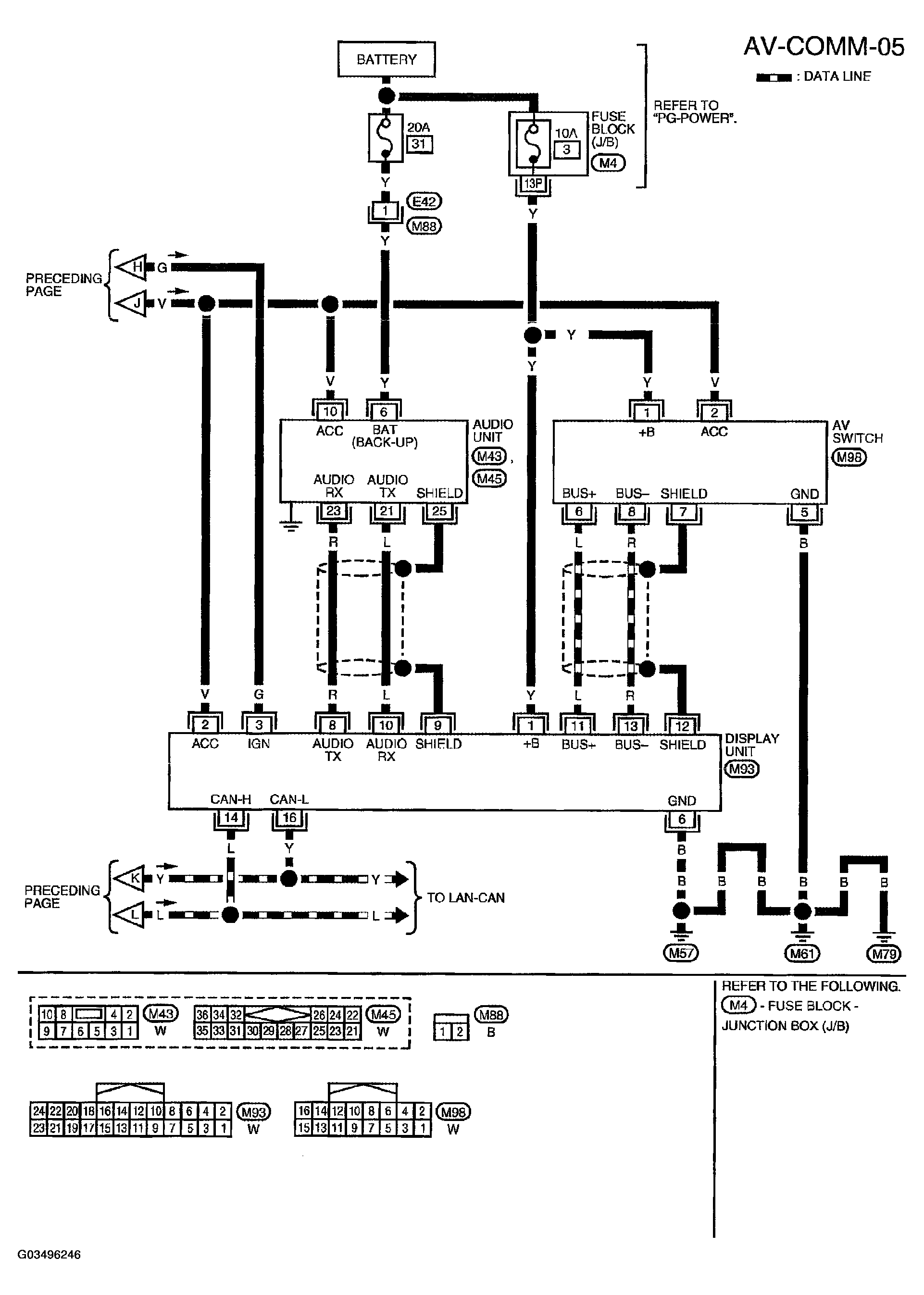

Fig 2: Wiring Diagram - AV-INF/D-07

Courtesy of NISSAN MOTOR CO., U.S.A.
