Without NAVI

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

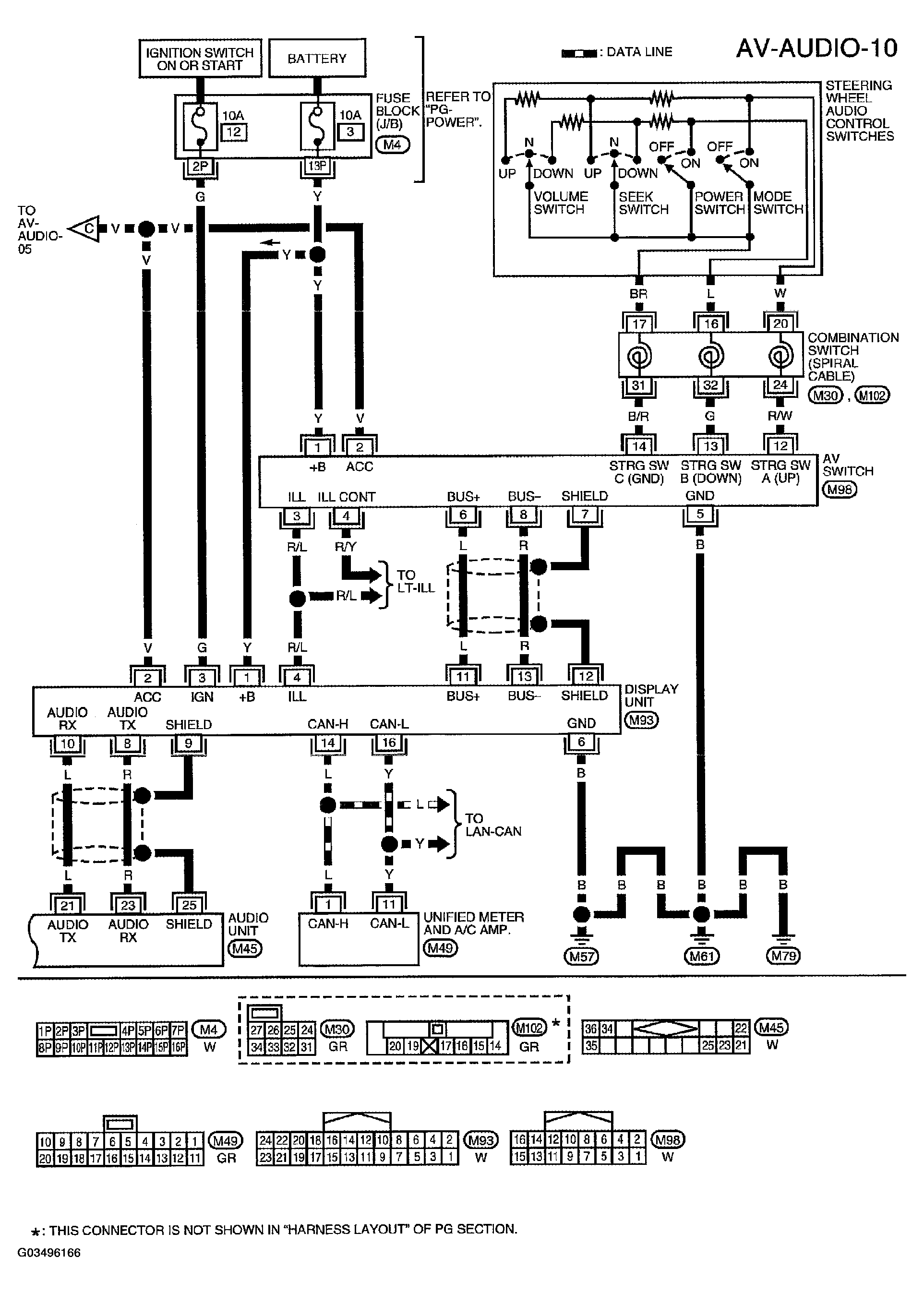

Fig 1: Identifying Bose System Wiring Diagram (Without NAVI) - AV-AUDIO-10
G03496166Courtesy of NISSAN MOTOR CO., U.S.A.
