Removal and Installation of Subwoofer (BOSE System): Removal

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower upper trunk finisher. Refer to TRUNK ROOM TRIM & TRUNK LID FINISHER .
  2. Disconnect connector.
  3. Remove screws.

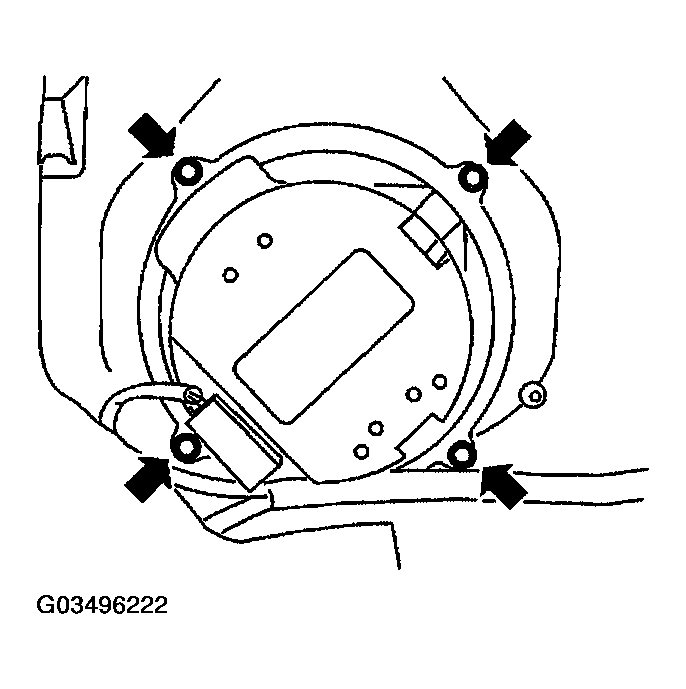

Fig 1: Disconnecting Connector
G03496222Courtesy of NISSAN MOTOR CO., U.S.A.
