Removal and Installation of Steering Wheel Audio Control Switches

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Remove steering wheel. Refer to REMOVAL AND INSTALLATION .
Remove horn switch screws and remove horn switch.

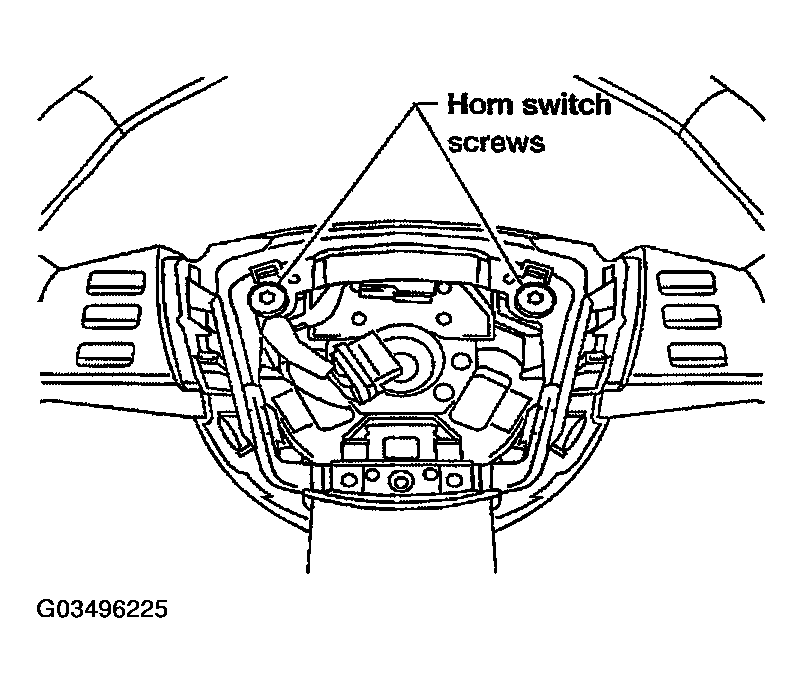

Fig 1: Removing Horn Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove steering wheel rear cover screws and remove steering wheel rear cover.

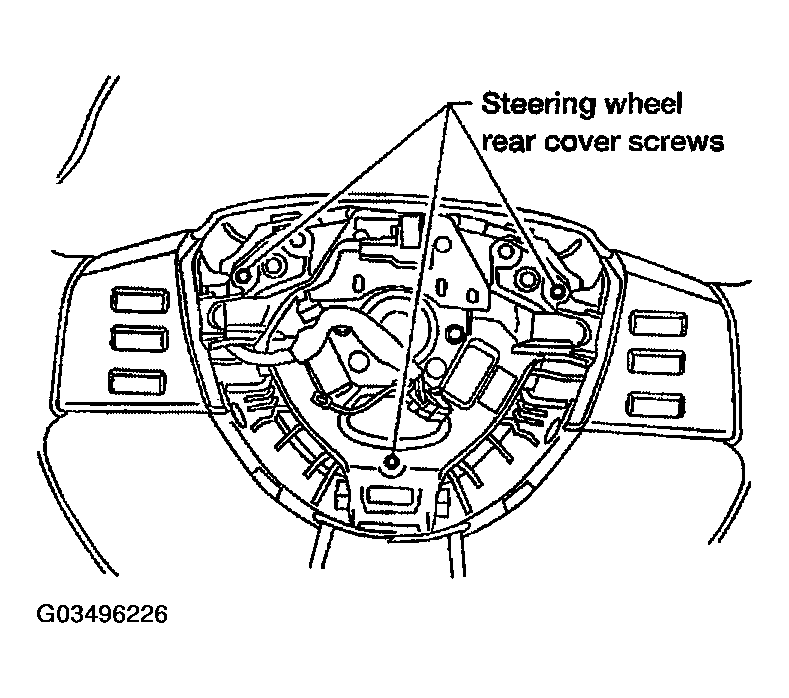

Fig 2: Removing Steering Wheel Rear Cover
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove steering wheel switch assembly screws and steering wheel switches.
Installation is in the reverse order of removal.

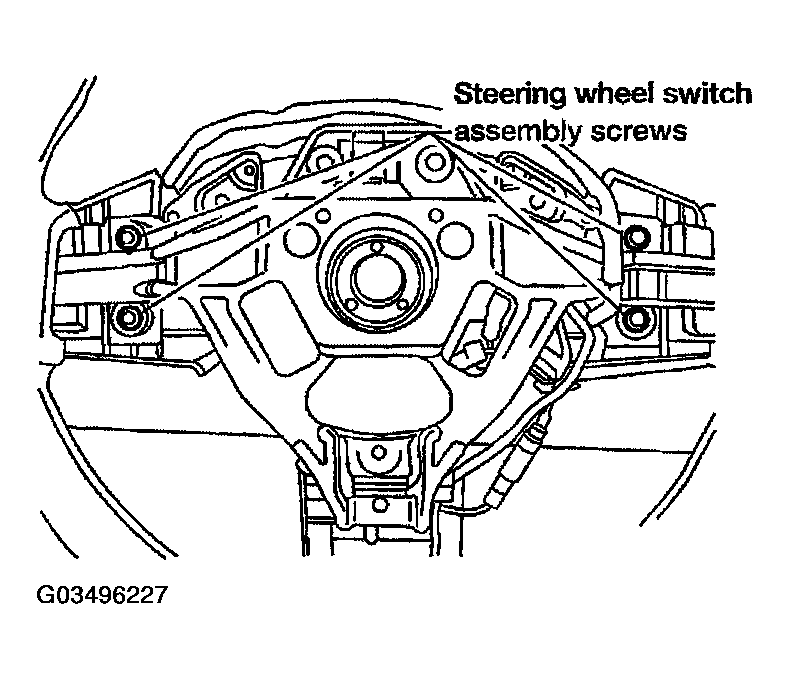

Fig 3: Installing Steering Wheel Switch Assembly Screws & Steering Wheel Switches

Courtesy of NISSAN MOTOR CO., U.S.A.
